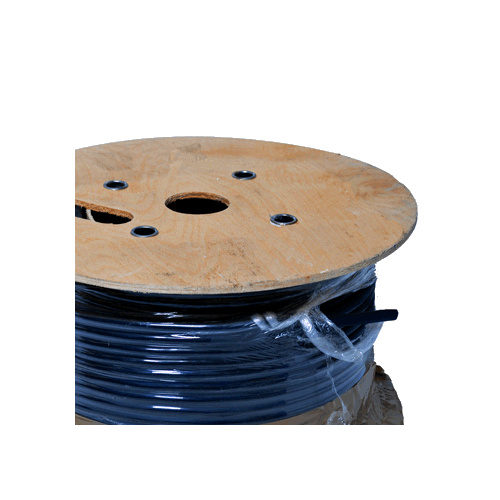

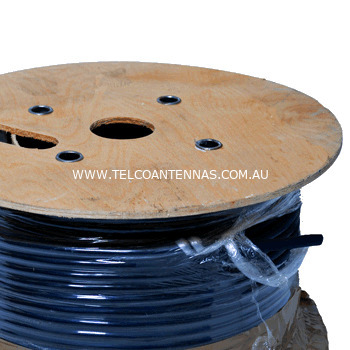

Times Microwave 100 Metre Reel Super Low Loss 50Ω Cable



Key Features



  • Times Microwave LMR-400-DB communications cable

  • LMR400-DB watertight 50Ω cabling

  • Direct burial rated.



Usage



  • The highest grade antenna cable, recommended for any performance critical, industrial, and harsh environmental applications

  • Its exceptional performance is achieved with a much thicker diameter (10mm) and greatly reduced flexibility (25.4mm minimum bend diameter)

  • LMR400-DB is a direct burial watertight cable suitable for a wide range of extreme environment applications such as underwater, salt water, oil & gas, and military applications

  • The addition of waterproofing compound in and around the foil/braid insures continuous reliable service should the jacket be inadvertently damaged during installation or in the future.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 78.4pF/m

  • Signal Loss: 0.12dB/m @ 850MHz, 0.20dB/m @ 2100MHz

  • Frequency Range: DC-16.2GHz

  • Velocity of Propagation: 85%

  • Nominal Delay: 3.92ns/m

  • Voltage Withstand: 2500Volts DC

  • Peak Power: 16kW



Mechanical Specifications



  • Weight/100m: 10kg

  • Minimum Bend Radius: 25.4mm

  • Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)

  • Conductor Material: Copper Clad Aluminium (CCA)

  • Conductor Diameter: 2.74mm

  • Insulating Material: Gas Injected Foamed Polyethylene

  • Outer Shield Material:

    • (1) Bonded Aluminium Polyester Tape 100% Coverage

    • (2) Tinned Copper Braid 86% Coverage

  • Outer Jacket Material: Non-halogenated PE Outer Diameter: 10.3mm



A heads up!



Stock Information: This item is not always stored at our Queensland warehouse, but is typically available within 24-48 hours from order.



times microwave logo png



(LMR400-DB-100)

SKU LMR400-DB-100
Brand Times Microwave
Shipping Width 0.310m
Shipping Height 0.270m
Shipping Length 0.310m
Shipping Cubic 0.025947000m3
