Times Microwave LMR-400 Grounding Kit



Key Features



  • Mid-span framework grounding

  • Outer conductor only.



Usage

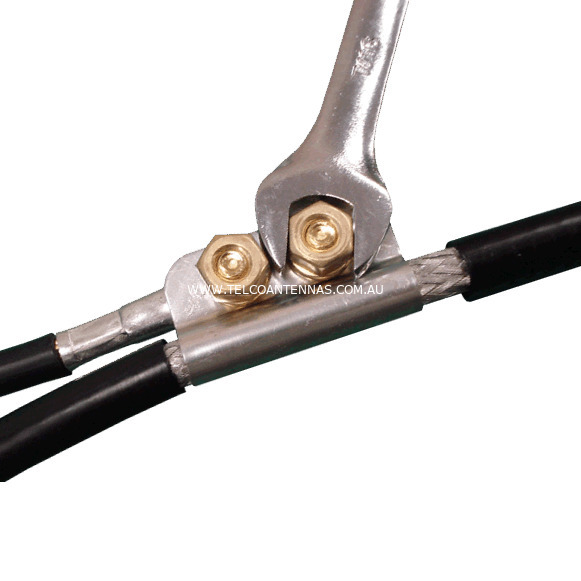

  • This cable grounding kit provides a secure grounding point to the outer conductor of LMR400 cable using a mechanical clamping method

  • Cable runs should be attached to a good electrical ground at the top of the tower near the antenna, at the bottom of the tower, and at the point where the cable enters the transmitter building

  • If the tower is used as a broadcast radiator, only ground the cable at the first quarter wavelength point, (broadcast frequency) measured vertically from the base of the tower.





Contents



  • (1) Pre-formed tinned copper ground strap

  • (1) ground lead assembly

  • (2) ¼” brass lock washers

  • (2) ¼” brass nuts

  • (1) Roll 2-1/2” x 24” (610mm) butyl mastic

  • (1) Roll ¾” x 20’ (6.1m) PVC tape

  • (1) heat shrink tube

  • (1) Field-crimp 3/8” 2-hole lug

  • (2) 3/8” x 1-1/4” slotted bolts

  • (2) 3/8” lock washers

  • (2) 3/8” nuts

  • (2) 3/8” flat washer



A heads up!



  • Stock Information: This item is not always stored at our Queensland warehouse, but is typically available within 24-48 hours from order.



Read More





times microwave logo png

(TC-GK-S400-T)

SKU TC-GK-S400-T
Brand Times Microwave
Shipping Weight 0.0450kg
Shipping Width 0.120m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.000864000m3
