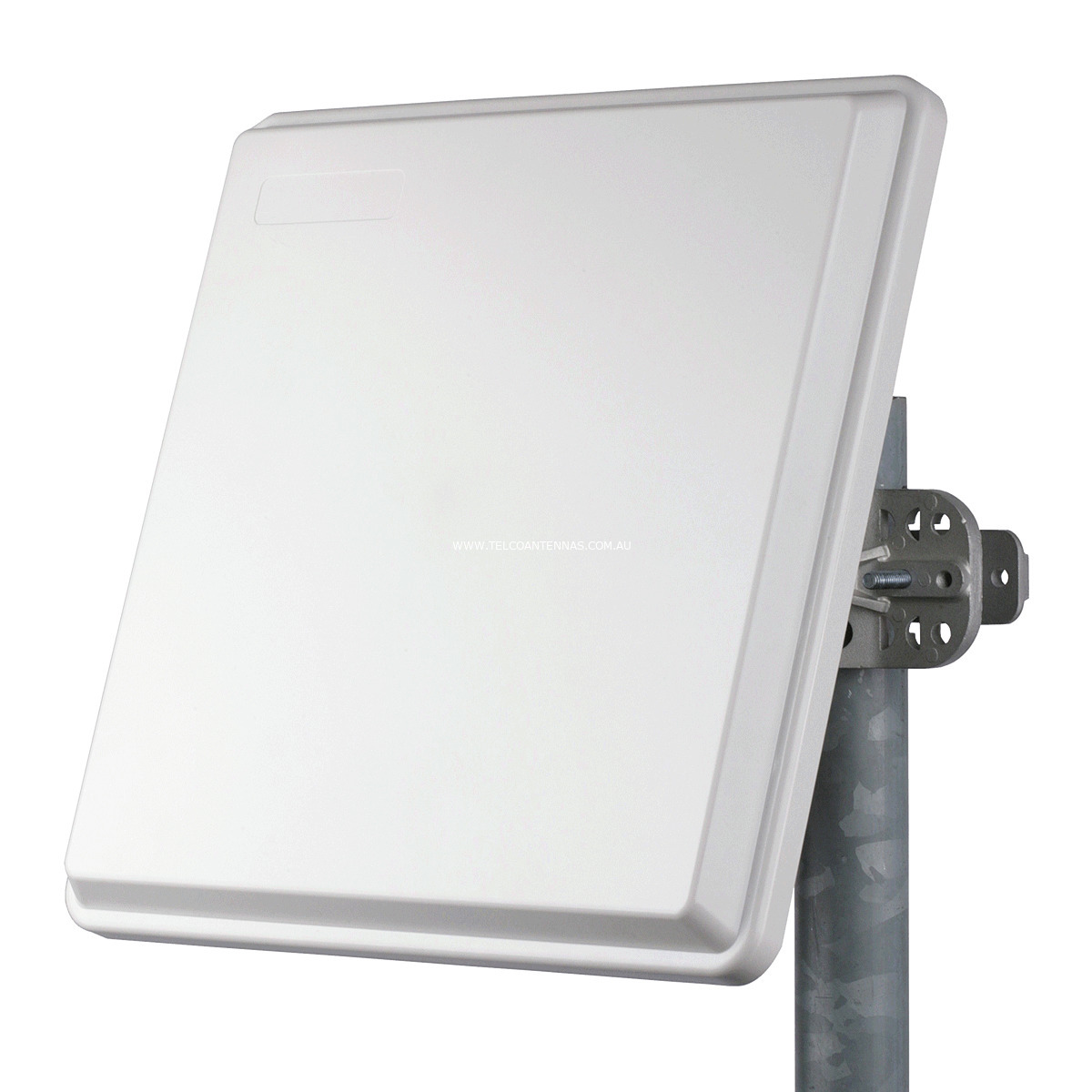

MARS 22dBi 3.3-3.8GHz MIMO Subscriber Antenna



Key Features



  • Carrier grade construction

  • Low profile subscriber antenna

  • 2x2 MIMO V&H or cross-pol mounting options

  • UV Stable polycarbonate radome

  • Designed for 3.4GHz PtMP and 3.6GHz remote licence applications.



Usage



  • MARS MA-WA36-DP21 is an industrial grade 2x2 Dual Polarity MIMO antenna designed for 3.4GHz point to multipoint wireless networks, and 3.6GHz remote licence wireless applications such as LTE UE antennas in bands 22 and 42

  • With a small 305 x 305mm form factor this high performance antenna achieves 22dBi across the entire 3.3 to 3.8GHz bandwidth

  • The antenna can be mounted in vertical+horizontal polarisation or slant mounted for cross-polarised systems with the supplied MNT-22 pole mounting kit.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
3.4GHz PtMP (3425-3575MHz)
compatible
22dBi
3.6GHz Remote Apparatus (3575-3700MHz)
compatible
22dBi
LTE Bands 22, 42
compatible
22dBi



Electrical Specifications



  • Frequency Range: 3300-3800MHz

  • Input Impedance: 50Ω

  • VSWR: <1.7:1

  • Polarisation: Dual Linear

  • Cross Pol Isolation: ETSI TS3

  • Sidelobe Suppression: ETSI TS3

  • Port to Port Isolation: >35dB F/B

  • Ratio: ETSI TS3

  • Horizontal Beamwidth: 12°

  • Vertical Beamwidth: 12° Max Input: 10W



Mechanical/Environmental Specifications



  • Cable: None

  • Connector: 2x N Female

  • Wind Rating: 200km/hr

  • Weight: 2.1kg

  • Mounting: Pole mounting bracket included

  • Dimensions: 370 x 370 x 40mm

  • Flammability: UL94

  • Weather Rating: IP67

  • Operating Temperature: -55°C +65°C

  • Humidity: ETS 300 019-1-4, EN 302 085

  • Vibration: IEC 60721-3-4

  • Salt Fog: IEC 68-2-11

  • Compliance: ETSI TS3, RoHS



Read More





(MA-WA36-DP21NB)

SKU MA-WA36-DP21NB
Brand Mars Antennas
Shipping Weight 2.0000kg
Shipping Width 0.305m
Shipping Height 0.250m
Shipping Length 0.305m
Shipping Cubic 0.023256000m3
