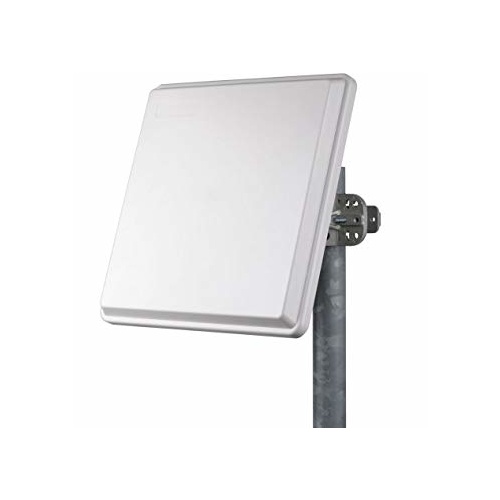

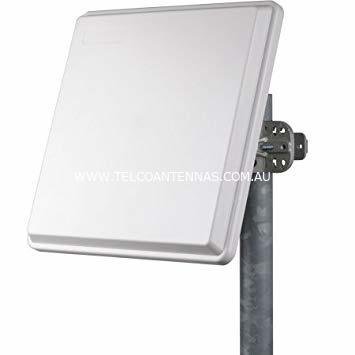

MARS 5.8GHz Dual Polarisation/Dual Slant Subscriber Antenna 23.5dBi



Key Features



  • Dual slant if mounted diagonally

  • Efficient and stable performance

  • High gain/size ratio

  • Light weight and durable construction

  • UV protected radome made of polycarbonate suitable for harsh weather installations.



Usage



  • Easy mounting allowing Az/El adjustment and 45° turn installation Mars 5GHz 2X2 MIMO Antenna designed to provide full coverage for the 5GHz frequency band

  • The antennas 23.5dBi gain makes for an ideal mid-range subscriber antenna in PtMP systems

  • We integrate this antenna with Ubiquiti Rocket AC M5 AirPrism radios to provide a durable high performance drop in replacement for the PowerBridge M5.



Specifications / Frequency


Network Compatibility
Yes/No
Gain
802.11 a/n/ac WiFi (5800MHz)
compatible
23.5 dBi

LIPD Class 2000 Fixed Services (5800MHz)

compatible

23.5 dBi



Electrical Specifications



  • Frequency Range: 4.9-5.875 GHz

  • VSWR: <1.7 : 1 3 dB

  • Beamwidth: 7° - 9°

  • Polarisation: Dual, vertical and horizontal

  • Cross Polarisation: >25 dB

  • Input power: 5 Watts

  • Input Impedance: 50Ω

  • Lightning Protection: DC Grounded

  • Port to Port Isolation: >30 dB



Mechanical/Environmental Specifications



  • Weight: 1.8 kg

  • Connector: 2 x N-Type, Female

  • Back Plane: Aluminum; protected through chemical passivation

  • Radome: UV Protected Polycarbonate

  • Operating Temperature Range: -40°C to +65°C

  • Wind Load: 200 Km/h (Survival)

  • Water Proofing: IP-67



Read More





(MA-WA56-DP25NB)

SKU MA-WA56-DP25NB
Brand Mars Antennas
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
