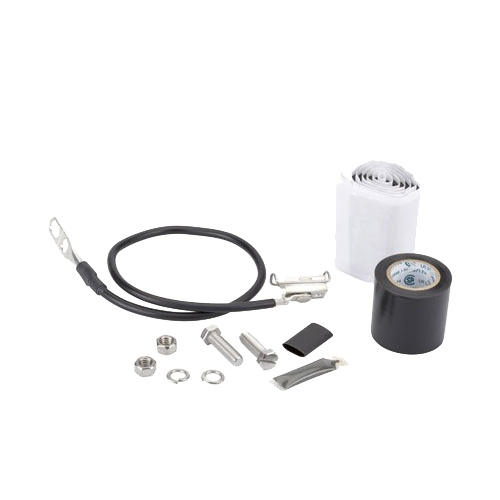

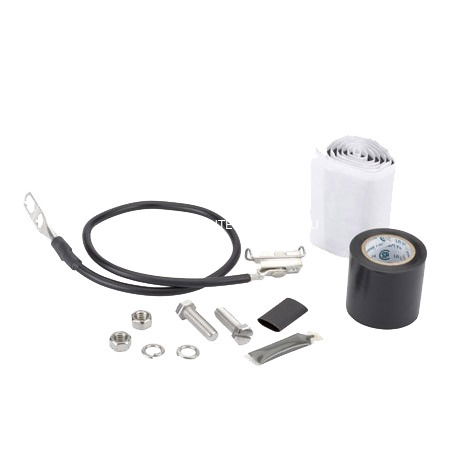

Andrew Mid-Span Grounding Kit - 7/8" Coaxial Cable



Key Features



  • Mid-span framework grounding

  • Commscope/Andrew SureGround® Grounding Kit

  • Suit 7/8" cable such as AVA5-50 Heliax

  • Outer conductor only.



Usage



  • This cable grounding kit provides a secure grounding point to the outer conductor of 7/8" feeder cables (such as AVA5-50 Heliax) using a mechanical clamping method

  • Cable runs should be attached to a good electrical ground at the top of the tower near the antenna, at the bottom of the tower, and at the point where the cable enters the transmitter building

  • If the tower is used as a broadcast radiator, only ground the cable at the first quarter wavelength point, (broadcast frequency) measured vertically from the base of the tower.



Specifications / Frequency



Electrical Specifications



  • Current Handling: Tested to withstand 100,000 amps peak current surge

  • Current Handling Test Method: MIL-STD-1757

  • Grounding, Bonding and Shielding Test Method: MIL-STD-188-124A

  • Lightning Protection Test Method: IEC 1024-1



Read More





commscope andrew logo

(SGL78-06B2A)

SKU SGL78-06B2A
Shipping Weight 0.0450kg
Shipping Width 0.130m
Shipping Height 0.070m
Shipping Length 0.170m
Shipping Cubic 0.001547000m3
