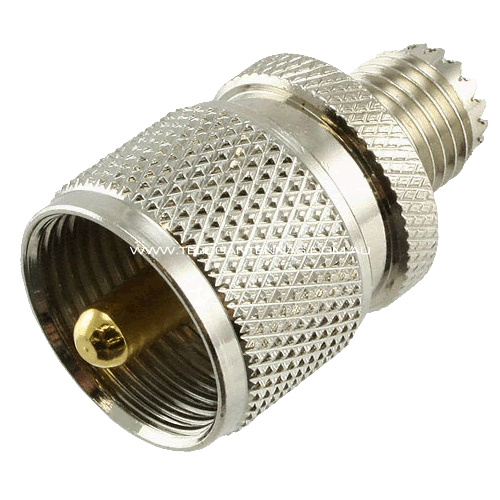

UHF PL259 Male to Mini-UHF Female Adaptor

PL259 to Mini-UHF Female

UHF Plug to Mini-UHF Jack

UHF Pin to Mini-UHF Socket



What is an adaptor?



A coaxial adaptor can be either inter-series or intra-series.


  • An inter-series (also known as between-series) adaptor is used to convert one type of connector into a different series connector.

  • An intra-series (also known as within-series) adaptor is used to connect two devices or cables of the same series, cable joiners and bulkheads are the most common type of intra-series adaptors.





Specifications



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-300MHz

  • Working Voltage: 335V RMS

  • Withstand Voltage: 1000V RMS

  • Insertion Loss: <0.2dB/3GHz

  • VSWR: <1.25:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium

  • Pin/Socket Plating: Gold

  • Insulator: PTFE

  • Operating Temperature: -40° to 85° C



Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



(MINIUHFF-UHFM-AD)

SKU MINIUHFF-UHFM-AD
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
