MS-147 to SMA Female Patch Lead



Key Features



  • High quality connector

  • 30cm of RG174 cable

  • Suits most ZTE mobile phones and NetComm gateway routers.



What does a patch lead do?



  • Some antenna cables terminate with a SMA Male connection, instead of a more common female 'FME' connector

  • To plug an antenna into your phone or wireless modem, you need a short cable that acts as a conversion from the SMA connector to the device-specific connector that will plug into the antenna port on your device

  • This cable has been tested and exhibits average cable loss of 0.63dB over full band 694-2700MHz
    • 840MHz: 0.33dB
    • 885MHz: 0.29dB1
    • 710MHz: 0.68dB1
    • 815MHz: 0.43dB
    • Please call us for a test report.



Automatic Price Breaks



  • The price listed for this item is for a quantity of 1-24 units

  • Prices will automatically incur a bulk-buy discount during checkout depending on quantity ordered

  • For large orders please contact our team to arrange a quote

  • Discounts:

    • 25-49 units = 10% Discount

    • 50-74 units = 15% Discount

    • 75-99 units = 20% Discount

    • 100-249 units = 24% Discount

    • 250-499 units = 29% Discount

    • 500-999 units = 33% Discount

    • +1000 units = 37% Discount

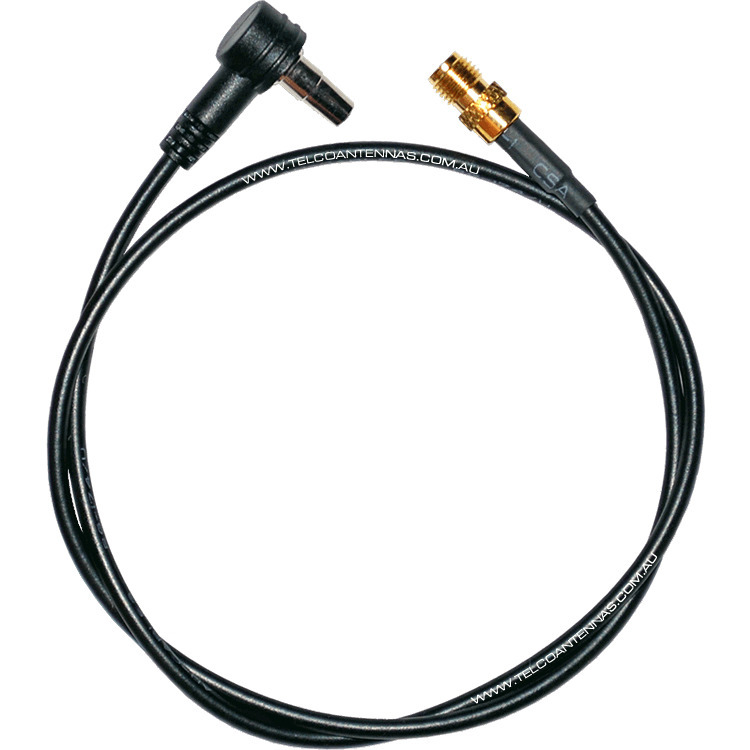

Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



(MS147-SMAF-174)

SKU MS147-SMAF-174
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.300m
Shipping Cubic 0.000750000m3
