MS-705 Male Right Angle Crimp Connector



Key Features



  • MS-705 Plug

  • Gold connector

  • Suits 2.5mm diameter cable such as RG174 and RG316



Usage



  • A crimp connector is used to terminate the end of a coaxial cable to allow connection to an RF device or antenna

  • Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose.

  • Most crimp connectors consist of three components - the connector body, pin/socket, and crimping ferrule

  • Terminating a coaxial cable with a crimp connector requires three tools - a wire stripper/cutter, soldering iron, and hex crimp

  • You can find instructional videos on crimping most connectors on YouTube.



Crimp Hex Die Sizing



  • RG316/RG174 - 0.128"

  • RG58/LMR195 - 0.213"

  • LMR400/RG8 - 0.429"

  • For large orders please contact our team to arrange a quote.



Specifications / Frequency



Electrical Specifications



  • Impedance: 50Ω

  • Frequency Range: DC-3GHz

  • Working Voltage: 170V RMS

  • Withstanding Voltage: 500V RMS

  • Contact Resistance - Centre Contact <3mΩ - Outer Contact < 2mΩ

  • Insulation Resistance: > 1000MΩ

  • VSWR: < 1.25/1GHz



Mechanical Specifications



  • Temperature Range: -55°C to + 155°C

  • RoHS Compliant

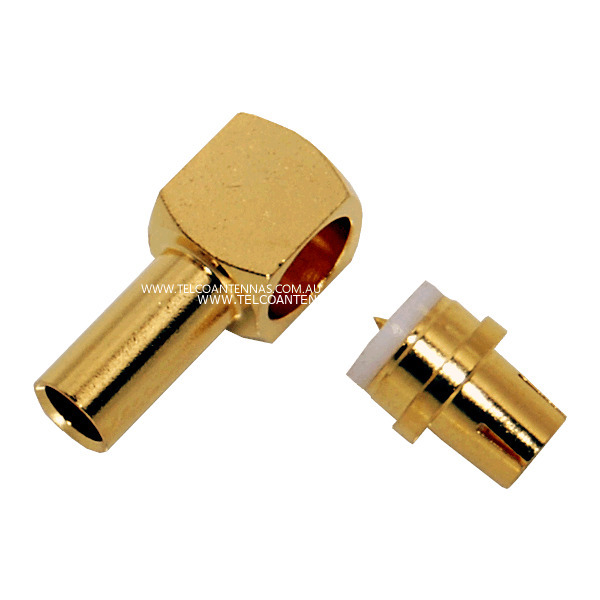

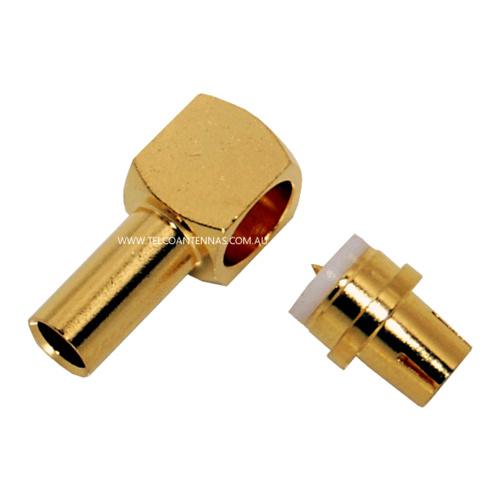

Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.


tick rohs compliant lead free



(MS705-316)

SKU MS705-316
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
