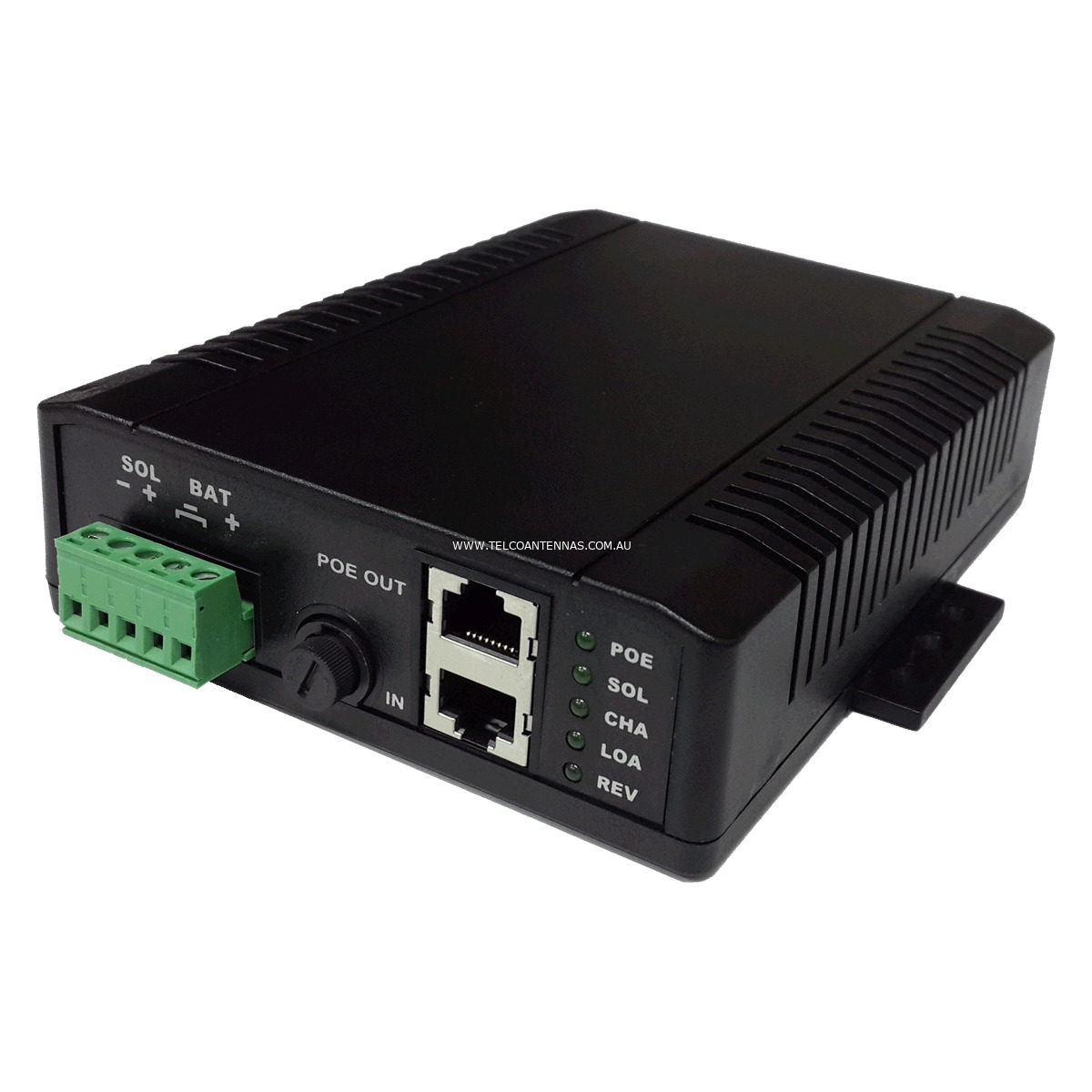

MSTronic Solar Regulator Charge Controller 12V Input & 24V PoE Output



Key Features



  • 10/100Eth RJ45 input & output

  • 12VDC Solar systems

  • 18-57VDC PoE input charging (max 2.6A)

  • 24VDC 1.25A PoE output (30W)

  • Short circuit, over current and reverse/over voltage protection

  • High temperature operation

  • DIN rail mountable.



Usage



  • With two power inputs, solar panel and PoE power source, the battery voltage is 12V with a regulated output of 24 VDC.





Electrical Specifications



  • Solar Input Voltage: 12VDC PoE

  • Input Voltage: 18-57VDC

  • Output voltage and current: 24V 1.25A

  • Max load: 1.25A

  • Min load: 0.01A



Mechanical/Environmental Specifications



  • Construction: ABS Plastic

  • Operating temperature: -20 to 60° Celsius

  • Storage temperature: -40 to 85° Celsius

  • Operating humidity: 5 to 90%

  • Cooling: Free air

  • Dimension: 150 x 118 x 40mm (L x W x H)



Read More





(MS-5012C-24)

SKU MS-5012C-24
Shipping Weight 0.4500kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
