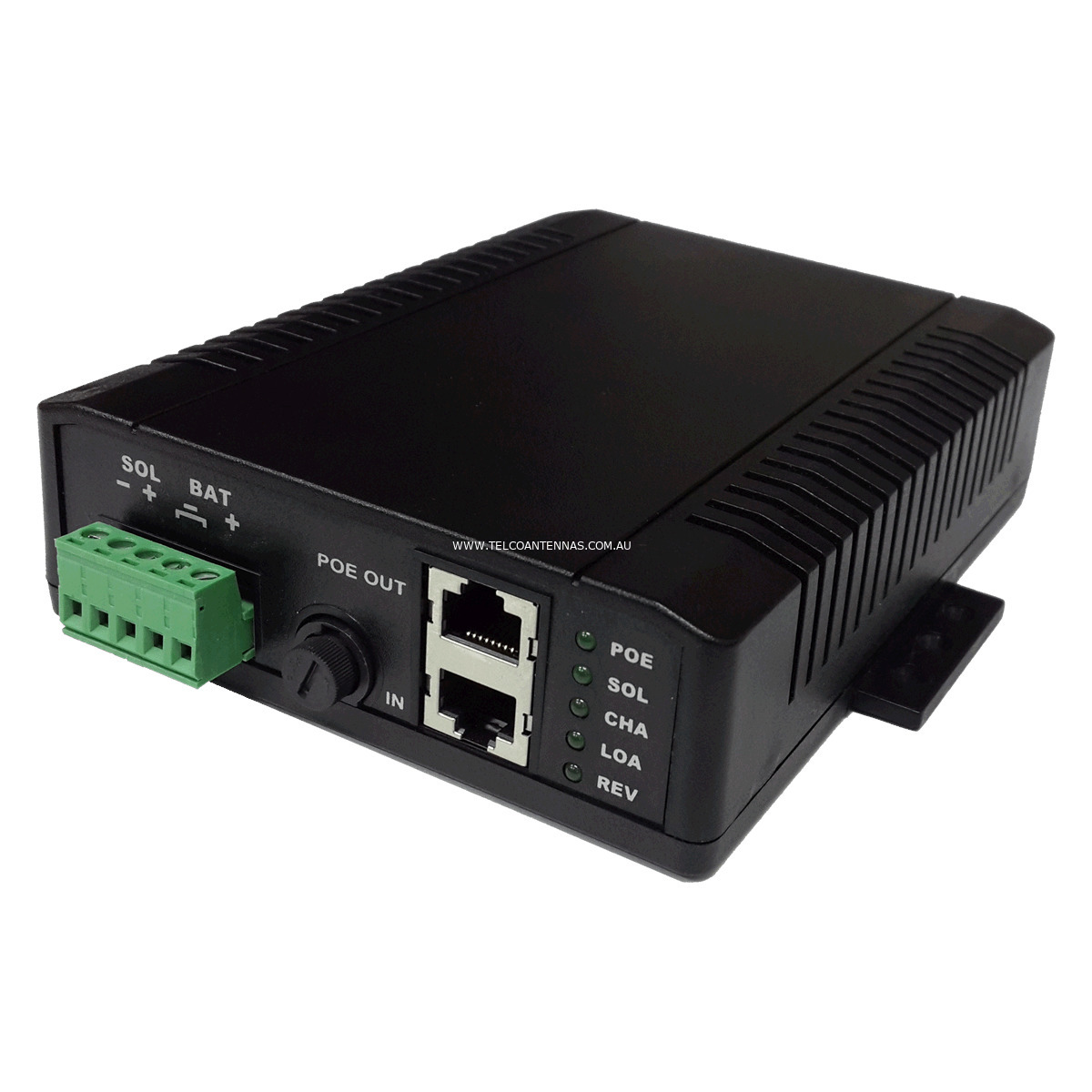

MSTronic Solar Regulator Charge Controller 12V Input & 48V PoE Output



Key Features



  • 10/100Eth RJ45 input & output

  • 12VDC solar systems

  • 18-57VDC PoE input charging (max 2.6A)

  • 48VDC 0.625A PoE output (30W)

  • Short circuit, over current and reverse/over voltage protection

  • High temperature operation

  • DIN rail mountable.



Usage



With two power inputs, solar panel and PoE power source, the battery voltage is 12V with a regulated output of 24 VDC.



Electrical Specifications



  • Solar Input Voltage: 12VDC

  • PoE Input Voltage: 18-57VDC

  • Output voltage and current: 48V 0.625A

  • Max load: 1.25A

  • Min load: 0.01A



Mechanical/Environmental Specifications



  • Construction: ABS plastic

  • Operating temperature: -20 to 60° Celsius

  • Storage temperature: -40 to 85° Celsius

  • Operating humidity: 5 to 90%

  • Cooling: Free air

  • Dimension: 150 x 118 x 40mm (L x W x H)
