N Female Bulkhead Crimp Connector - RG58/LMR195/Belden 9907
SKU: NF-BLKHD-58
N Female Bulkhead Crimp Connector
Key Features
-
N Jack Socket
-
Panel mount bulkhead
-
Suits 5mm cable diameter such as RG58, LMR195 and Belden 9907
-
Solder on centre pin.
Usage
-
A crimp connector is used to terminate the end of a coaxial cable to allow connection to an RF device or antenna
-
Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose
-
Most crimp connectors consist of three components - the connector body, pin/socket, and crimping ferrule
-
Terminating a coaxial cable with a crimp connector requires three tools - a wire stripper/cutter, soldering iron, and hex crimp
-
You can find instructional videos on crimping most connectors on YouTube.
Crimp Hex Die Sizing
-
RG316/RG174 - 0.128"
-
RG58/LMR195 - 0.213"
-
LMR400/RG8 - 0.429"
-
For large orders please contact our sales team to arrange a quote.
Specifications
Electrical Specifications
-
Resistance: 50Ω
-
Frequency Range: DC-11GHz
-
Working Voltage: 1000V RMS
-
Withstand Voltage: 2500V RMS
-
Contact Resistance:
-
(1) Centre Contact: <1mΩ
-
(2) Outer Contact: <1mΩ
-
-
Insulation Resistance: >5000MΩ
-
Insertion Loss: <0.24dB/6GHz
-
VSWR: <1.15:1
Mechanical/Environmental Specifications
-
Durability: >500 cycles
-
Body Material: Brass
-
Plating Material: Nickel
-
Pin/Socket Contact: Brass/Beryllium-Copper
-
Pin/Socket Plating: Gold
-
Crimp Ferrule Material: Copper-alloy
-
Crimp Ferrule Plating: Nickel
-
Insulator: PTFE
-
Operating Temperature: -55° to 155° C
-
CECC 22210
-
MIL-C-39012
-
IEC 60169-16
-
RoHS Compliant (Pb Free)

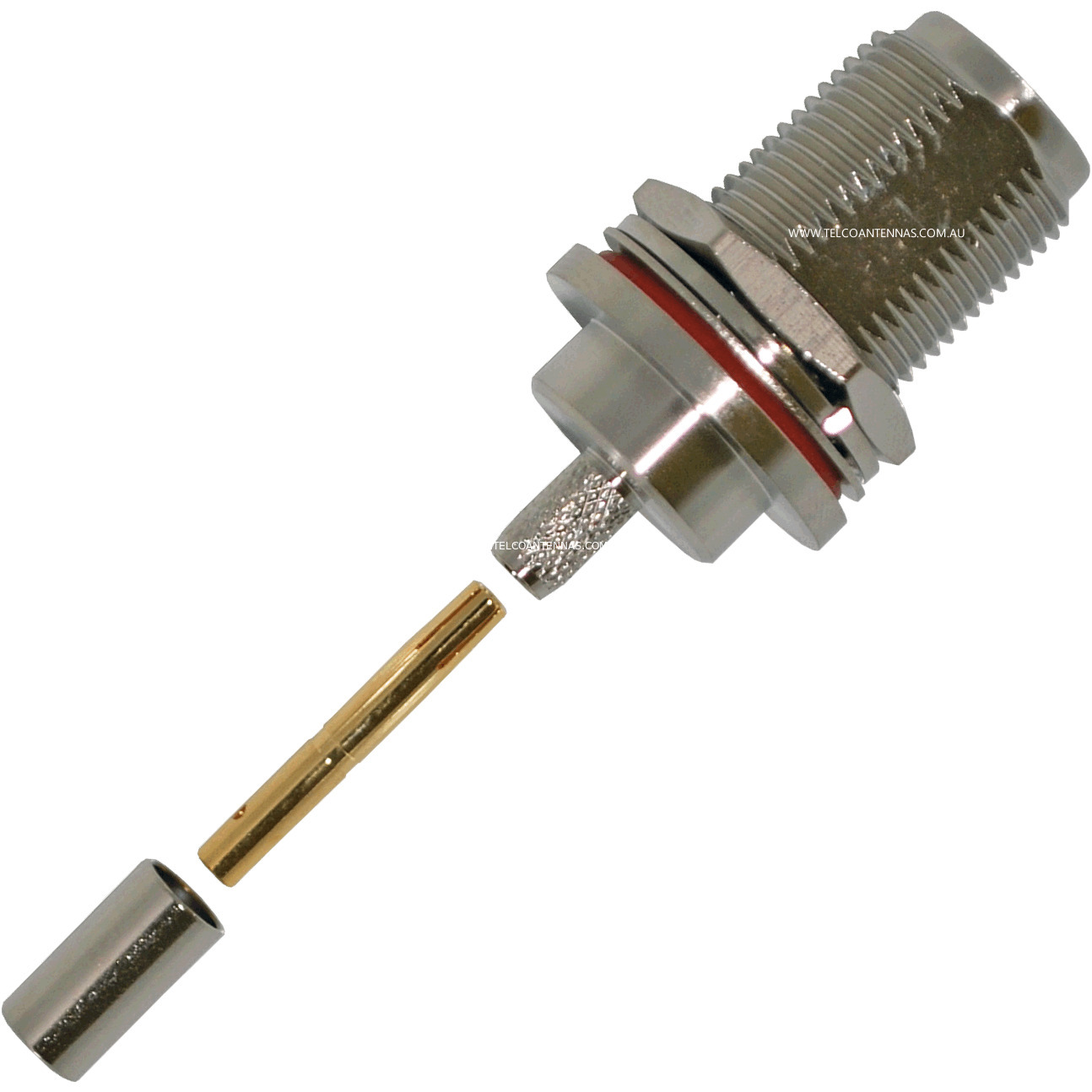

Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.
(NF-BLKHD-58)
