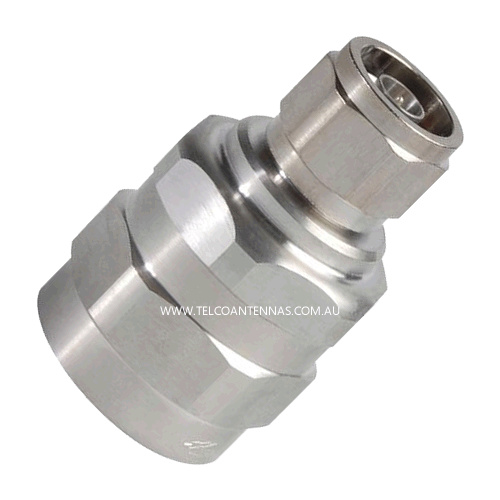

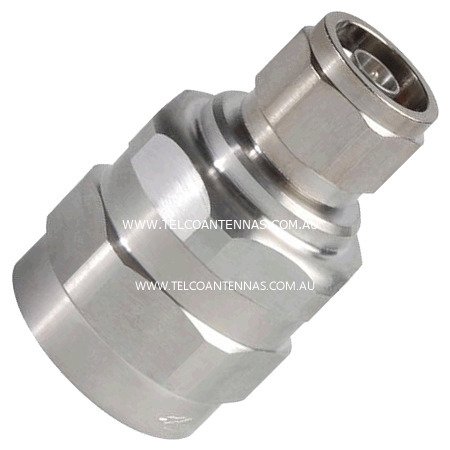

N Male Connector for 7/8" Coaxial Cable



Key Features



  • N Plug - N Pin

  • Captive clamp mating

  • Tri-metal plating, low PIM



Usage



  • Suits 7/8" foam dielectric cable such as Heliax AVA5-50, FXL-780 Andrew Commscope Ez-Fit N Male connector for AVA5-50 and other 7/8" corrugated coaxial cable series.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-5GHz 3rd Order IMD: <116dBc

  • Working Voltage: 707V RMS

  • Withstand Voltage: 2000V RMS

  • Contact Resistance: - (1) Centre Contact: <2mΩ - (2) Outer Contact: <0.3mΩ

  • Insulation Resistance: >5000MΩ

  • Peak Power: 10.00kW

  • Insertion Loss: <0.05dB typical

  • VSWR: <1.11:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Outer Contact Attachment: Clamp

  • Inner Contact Attachment: Captivated

  • Body Material: Brass

  • Plating Material: Tri-Metal

  • Pin/Socket Contact: Brass/Beryllium-Copper

  • Pin/Socket Plating: Silver

  • Crimp Ferrule Material: Copper-alloy

  • Crimp Ferrule Plating: Nickel

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C
