N Male to 4.3-10 Female Adaptor

N Plug to 4.3-10 Jack Adaptor

N Pin to 4.3-10 Socket Adaptor



What is an adaptor?



A coaxial adaptor can be either inter-series or intra-series.


  • An inter-series (also known as between-series) adaptor is used to convert one type of connector into a different series connector.

  • An intra-series (also known as within-series) adaptor is used to connect two devices or cables of the same series, cable joiners and bulkheads are the most common type of intra-series adaptors.





Specifications



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-6GHz

  • PIM: 160dBc

  • Working Voltage: 1000V RMS

  • Withstand Voltage: 2500V RMS

  • Insertion Loss: <0.24dB/3GHz

  • VSWR: <1.2:1/6GHz



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: All

  • Pin/Socket Contact: Beryllium-Copper

  • Pin/Socket Plating: Silver

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C

  • MIL-C-39012

  • IEC-60169-16 (N Type)

  • IEC 61169-54 (4.3-10 Type)



Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.


tick rohs compliant lead free

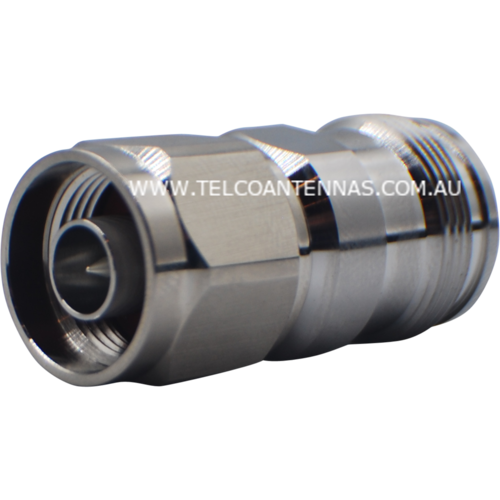

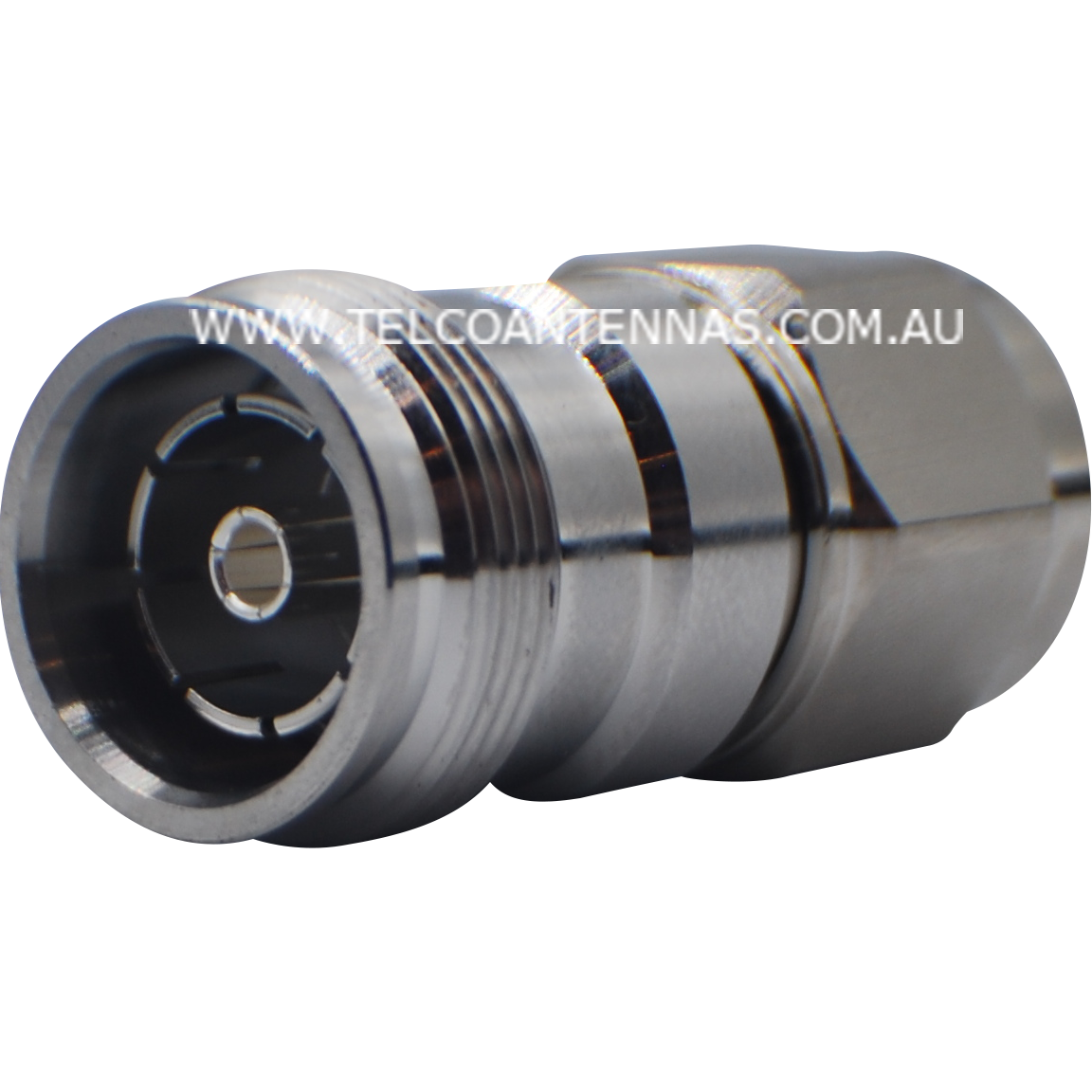

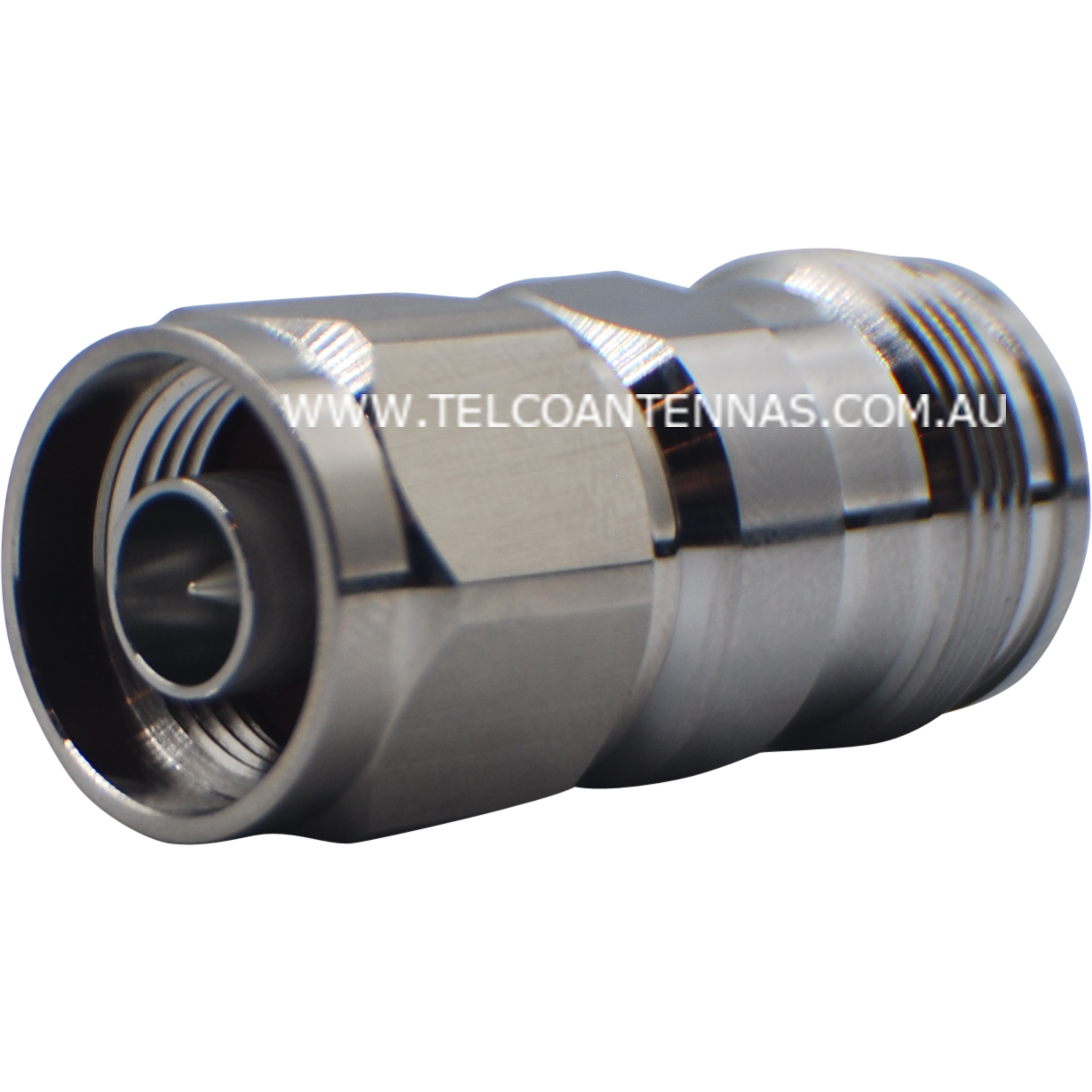

(NM-4310F-AD)

SKU NM-4310F-AD
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
