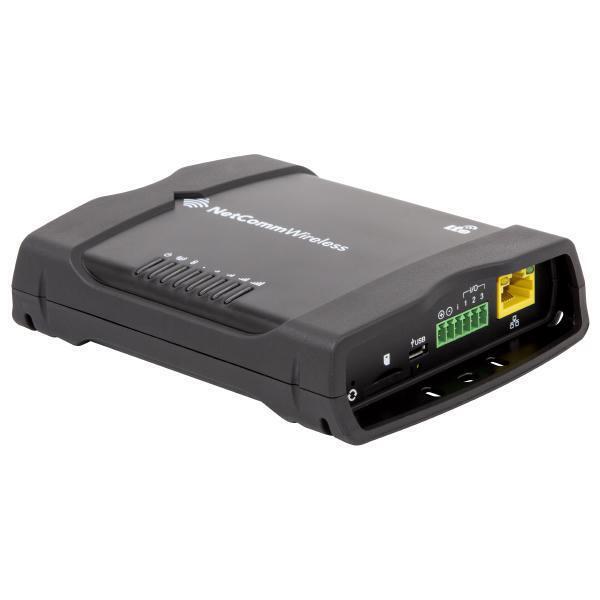

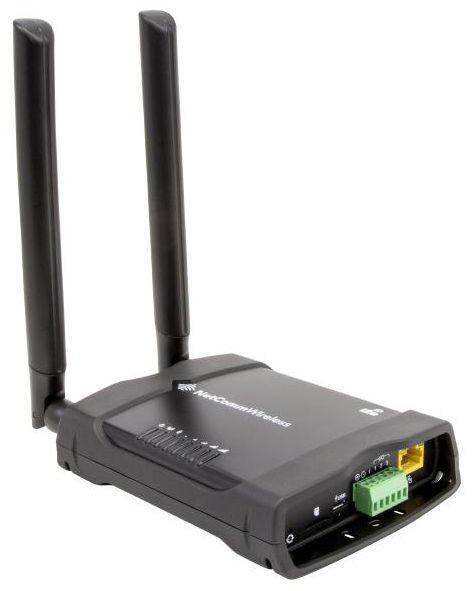

NetComm NTC-221-01 Industrial IoT M2M LTE/4G Router

Key Features

• LTE: Octa-Band 700/850/900/1700/1800/1900/2100/23300/2600 MHz

• WCDMA: Quad-Band 850/900/1900/2100MHz

• RS-232/422/485 Serial Port

• Micro USB 2.0 OTG port

• 6 Way Connector (power, ignition input and 3 x I/O ports)

• 2x External SMA Female antenna connectors with Rx diversity

• Fast Ethernet LAN port

• Integrated GPS support via SDK.

Usage

• Designed for rugged and remote environments, the HSPA M2M Router creates a reliable wide-area-network for point-to-point or point-to-multi-point communications across a range of applications in areas such as:

  • smart metering

  • transport

  • security

  • surveillance

  • banking

  • health

  • transport

  • mining and development.

• Ideal for modern telemetry, M2M communication and legacy serial applications, the LTE M2M Router lets you remotely manage, monitor and control networked equipment in real time from any computer

• Install custom firmware using the software development kit (SDK) and benefit from access to most networks and service types

• Connect digital signs, CCTVs, smart meters, climate control systems and other wired devices to the Ethernet port to support high-bandwidth communications and large file transfers for applications such as video streaming

• The NTC-221-01 series are intelligent octa-band 4G and quad-band 3G M2M Routers designed for Machine-to-Machine (M2M) applications taking advantage of the high speed and wide coverage of modern cellular networks

• Featuring Ethernet, Serial (RS232/422/485), and USB 2.0 connectivity, the NTC-221-01 series can interface with a diverse range of equipment used in a wide variety of vertical applications

• The  NTC-221-01 also features built in GPS support and a dedicated ignition input making it ideal for vehicle applications

• The device features integrated Zigbee1 with embedded antennas for multipoint wireless networking and multipurpose digital and analogue I/O ports.
