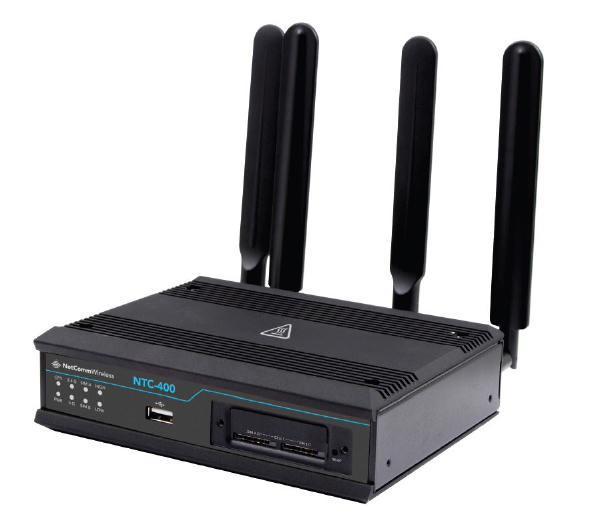

NetComm NTC-400 Industrial 3G+4G Modem

Key Feature

• Cat 6 4G LTE (300 Mbps) with failover to 3G and automatic fall back to 4G

• Three Gigabit Ethernet ports, a serial port, and a USB port for network flexibility

• Integrated high speed dual band Wi-Fi access point

• Rugged Industrial Design with a metal housing and a wide temperature rating

• Integrated GPS

• Dual SIM for configurable network redundancy

• Ignition sense capability and a wide input voltage range for vehicular applications

• Integrable with a wide range of Remote Management Protocols - Including NetComm Wireless’ Remote Device Management

• Compatible with Telstra, Optus, Vodafone and other networks.

Usage

• The robust and intelligent Netcomm LTE Cat6 Industrial Grade Router is designed to provide real-time M2M data connectivity even in harsh environments

• The NTC-402-02 creates reliable point-to-point or point-to-multi-point wide area network (WAN) connections for a variety of mission critical applications such as primary broadband, video surveillance, retail, payments, in-vehicle wireless hotspot and business continuity

• Create high-speed dual-band Wi-Fi hotspots in public transport, stream HD video from multiple surveillance cameras, track vehicles using GPS or stream 4K/UHD video to large digital displays in real time with the future-proof NTC-400.

High-speed connectivity

• Equipped with connectivity options covering almost any requirement, the NTC-400 delivers high-speed 4G LTE and Wi-Fi virtually anywhere

• The cellular WAN connection supports 4G LTE Category 6 (up to 300Mbps) with failover to 3G and automatic fall back to 4G, to deliver the highest speed possible

• Integrating a high speed dual band Wi-Fi access point and hotspot functionality, the NTC-400 can be used to provide public Internet access to multiple passengers on a bus, or construction workers on a busy work site.

Industrial grade design

• Designed from the ground up with harsh industrial and automotive environments in mind, the NTC-400 features a rugged industrial design with a metal housing and a wide temperature rating to allow the NTC-400 to operate at extreme temperatures

• Most importantly, environmental testing ensures that the device continues to operate under extreme conditions of temperature, shock and vibration.

Carrier grade management

• The NTC-400 supports telecommunication standards based remote management protocols such as TR-069 and SNMP to allow quick and easy integration with a wide range of remote management platforms including NetComm Wireless’ Remote Device Management platform

• Extensive support for managing the device via SMS allows enterprises to communicate, get status reports, change settings using an SMS gateway

• The built-in event notification engine, which sends alarms and notifications via email or SMS, allows an automated layer of self-monitoring to ensure a quick response to events requiring human intervention.

Read More

• Datasheet

• User Manual

• Latest Firmware
