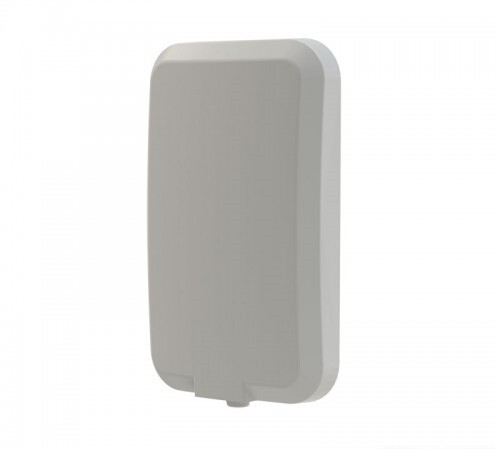

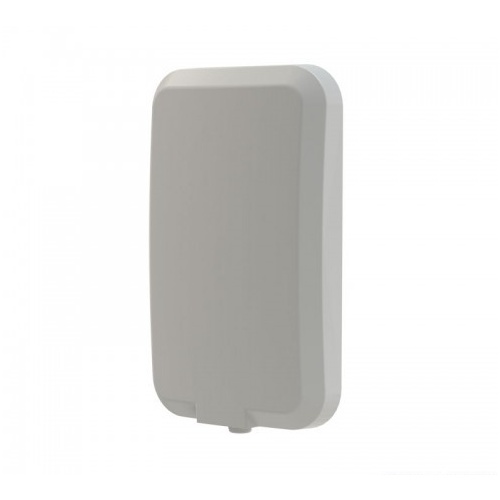

Panorama 4x4 MIMO 3G, 4G & 5G Directional Panel Antenna



Key Features

  • Ultra wide-band coverage 700 to 3800MHz

  • Wall Mount, Pole Mount & Desk Mount

  • Your choice of cable length and connectors (SMA or N-type)

  • Four cables for 4x4 MIMO operation

  • Wide spectrum design, suits all current and planned cellular networks (including future 5G Networks).

  • Ideal for Branch Networks & Failover



Additional Information

  • The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks.

  • Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.

  • The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided.

  • Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G-6-60 minimises exposed connector joints and simplifies cable management for easy installation.



Specifications / Frequency

Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
6dBi
Optus 4G+ (700MHz)
compatible
6dBi
Telstra Next-G™ (850MHz)
compatible
6dBi
Vodafone 4G+(850MHz)
compatible
6dBi
Optus Regional 3G (900MHz)
compatible
6dBi
Vodafone Regional 3G (900MHz)
compatible
6dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
9dBi
All carriers - Urban/Metro 3G (2100MHz)
compatible
9dBi
Optus 4G/Vivid Wireless (2300MHz)
compatible
9dBi
LTE-TDD Bands 38, 40 (2300MHz)
compatible
9dBi
802.11 b/g/n/ac WiFi (2400MHz)
compatible
9dBi
Telstra 4Gx (2600Mhz)
compatible
9dBi
Optus 4G+ (2600Mhz) compatible 9dBi
All Carriers 5G Networks compatible 9dBi



Electrical Specifications

  • Frequency Range: 617-960MHz / 1710-6000MHz

  • Radiation Pattern: Directional

  • Nominal Polirisation: +/-45° / Vertical

  • Input Impedance: 50Ω

  • Efficiency: >60%

  • Correlation Co-Efficient: < 0.2

  • Maximum Power: 20 Watts



Mechanical/Environmental Specifications

  • Construction: White Impact Resistant ASA

  • Cable: 4 x ( 500mm tails or 5m CS29 cables )

  • Connector: N-Type Female or SMA Male

  • Temperature: -40°C +80°C

  • Weight: 5.1kg

  • Dimensions: 507 x 307 x 85mm (L x W x D)

  • Ingress Protection: IP66

  • Fixing: Wall Mount / Flush Wall Mount / Mast Mount



Read More

Specification Sheet

Install Instructions

IP Certificate

(WMM4G-6-60-5)

SKU WMM4G-6-60-5
Shipping Weight 5.1000kg
Shipping Width 0.650m
Shipping Height 0.160m
Shipping Length 0.320m
Shipping Cubic 0.033280000m3
