Panorama 4x4 MuMiMo 4G/5G Dome Antenna 3G+4G+5G - 700-6000MHz



Key Features



  • 4x4 MiMo Cellular Antenna

  • Covers all cellular bands

  • Low profile 80mm height

  • IP69, vandal resistant design

  • Ground plane dependent.



Usage



  • The LPMM4-6-60 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package.

  • The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.

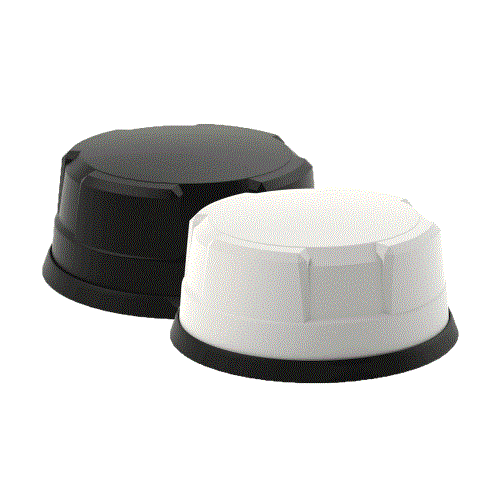

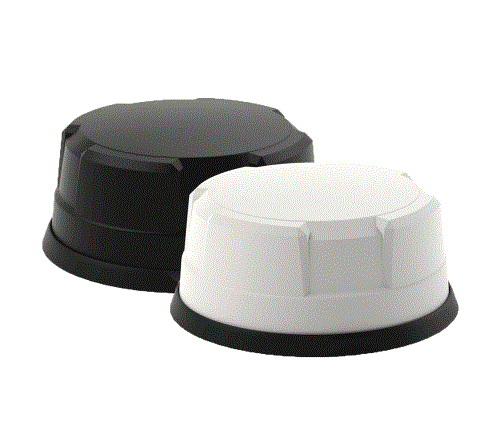

  • The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.



Specifications / Frequency

Electrical Specifications

  • Frequency Range 4G Elements:  698-960 / 1710-3800 / 4900-6000MHz

  • Peak Gain: 4 / 8 / 9dBi

  • Typical Efficiency: >50% / >75% / >85%

  • Input Impedance: 50Ω

  • Vertical Beamwidth: See Specifications Sheet

  • Radiation: Omnidirectional

  • Maximum Power: 10Watts



Mechanical/Environmental Specifications

  • Cable: RG174 0.3m

  • Connector: 4x SMA Male

  • Operating Temperature: -40°C to +80°C

  • Weight: kg

  • Dimensions: 75 x 185mm (H x Dia)

  • Mounting: Panel Mount - 19mm Hole Required



Read More





(LPMM4-6-60)

SKU LPMM4-6-60
Brand Panorama
Shipping Weight 1.5000kg
Shipping Width 0.220m
Shipping Height 0.140m
Shipping Length 0.200m
Shipping Cubic 0.006160000m3
