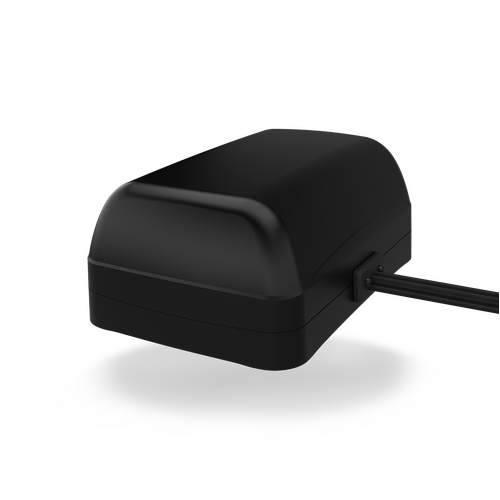

The L[X]A[X]MM4-7-42 MiMo antenna is designed to be a no drill installation solution for IOT applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698- 960/1427-4200MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS. The housing is constructed from robust, flame retardant, impact resistant plastic. The subtle, curved design makes the product harder to vandalise and the IK10 rating ensures that the product is suitable for use in tough environments and devices located in public areas. The housing is UV stable and approved to IP65 for ingress protection. The product is supplied with integrated low loss flame retardant cables approved to UN ECE R118 and fitted connectors offer plug and play connectivity for a huge range of devices. The L[X]A[X]MM4-7-42 can be installed on conductive or nonconductive panels without significant detriment to performance although magnetic mounting requires an appropriate surface.

(LGADMM4-7-42)

  • Low Profile Magnetic / Adhesive IOT Antenna
  • 4×4 MiMo 698-960/1427-4200MHz
  • Up to 4×4 MiMo WiFi 6e (Optional)
  • GPS/GNSS L1/L5 or L1 only 30dB / 26dB LNA (Optional)
  • Meets IK10 and IP65

https://panorama-antennas.com/product/lxaxmm4-7-42-x-clam-4x4-mimo-4g-5g-iot-antenna/#product-features





SKU LGADMM4-7-42
Shipping Weight 1.0000kg
Shipping Width 0.205m
Shipping Height 0.135m
Shipping Length 0.215m
Shipping Cubic 0.005950125m3
