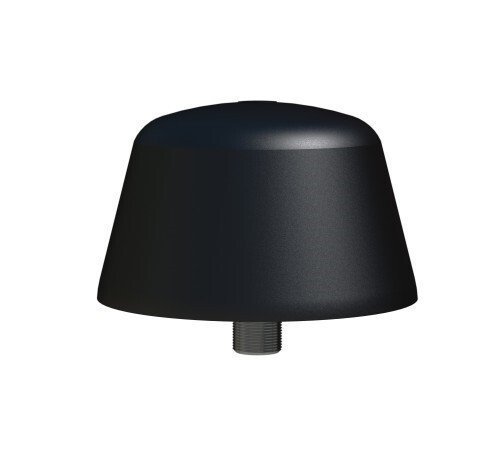

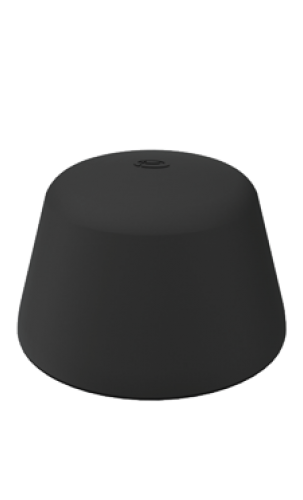

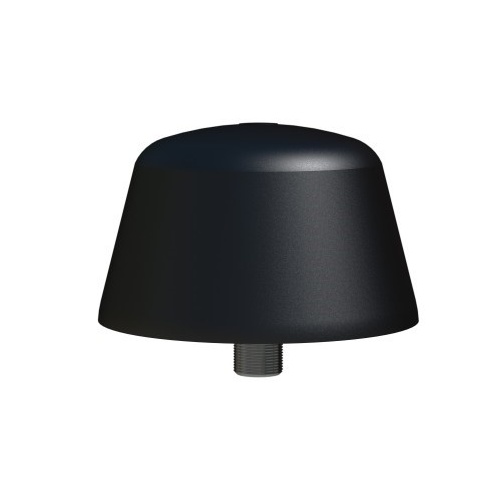

Panorama Low Profile 3G/4G/5G +GPS Antenna 2-in-1 Combination Antenna

'The Fez'



Key Features



  • Suitable for 3G, 4G & 5G Networks

  • Active GPS

  • Extremely low profile 70mm height

  • IP66 Rated

  • Ground plane independent.



Usage



  • The Fez LGE-6-60 antenna is a heavy-duty, fully IP66 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications

  • The Fez  is unique in the market because it combines a 2-in-1 GPS/GLONASS &  Cellular (2G, 3G, 4G & 5G) elements inside a single heavy-duty antenna radome with high efficiency in a compact format

  • The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket

  • For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the Fez provides a robust, rugged antenna that is durable, even in extreme environments

  • The Fez also has excellent GPS/GLONASS reception without need to attach to an external ground-plane due to coupling to its unique own metal base

  • Two of the Fez antennas separated by distance are ideal for applications requiring MIMO spatial diversity.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
4dBi
Optus 4G+ (700MHz)
compatible
4dBi
Telstra Next-G™ (850MHz)
compatible
4dBi
Vodafone 4G+ (850MHz)
compatible
4dBi
Optus Regional 3G (900MHz)
compatible
4dBi
Vodafone Regional 3G (900MHz)
compatible
4dBi
Telstra/Optus/Vodafone 4G (1800MHz)
compatible
6dBi
All carriers - Urban/Metro 3G/4G (2100MHz)
compatible
6dBi
802.11 b/g/n WiFi (2400MHz)
compatible
6dBi
Telstra Metro 4GX (2600MHz)
compatible
6dBi
 Metro 4GX (2600MHz) compatible 6dBi
5G (3500-3600 MHz)
compatible
8dBi


Electrical Specifications



  • Frequency Range: 617-960/1427-6000 MHz

  • GPS: 1560-1612MHz

  • Input Impedance: 50Ω

  • VSWR: <2.5:1

  • Polarisation: Linear Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: Black A.S.A

  • Cellular Cabl: 0.3m CS29

  • Connector: SMA Male

  • GPS Cable: 0.3m RG174

  • Connector: FME Female

  • Thermal Shock: -30°C to +80°C

  • Weight: 0.3kg

  • Dimensions: 70 x 111mm (H x Diameter)

  • Mounting: Panel Mount - 18mm Mounting Bush



Read More

(LGE-6-60)

SKU LGE-6-60
Brand Panorama
Shipping Weight 0.4000kg
Shipping Width 0.150m
Shipping Height 0.130m
Shipping Length 0.145m
Shipping Cubic 0.002827500m3
