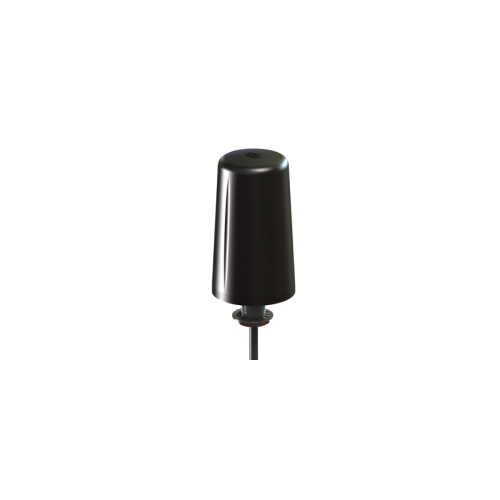

Panorama LPB-6-60 Wideband Stud Mount Antenna



Key Features



  • Wideband 698 to 6000 MHz covering most cellular bands

  • Rugged low profile design

  • High efficiency and gain stability

  • Screw-mount/permanent mount

  • IP65 ingress protection rating

  • 5 metre CS29 cable with SMA Male straight connector.



Usage



  • The LPB-6-60 antenna is a cost effective omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz and is suitable for external or internal installation.

  • The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted.

  • This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.

  • The LPB-6-60 requires a conductive ground plane of >300mm (1’) diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60)



Specification Sheet

(LPB-6-60-5SP)

SKU LPB-6-60-5SP
Brand Panorama
Shipping Weight 0.3000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.006000000m3
