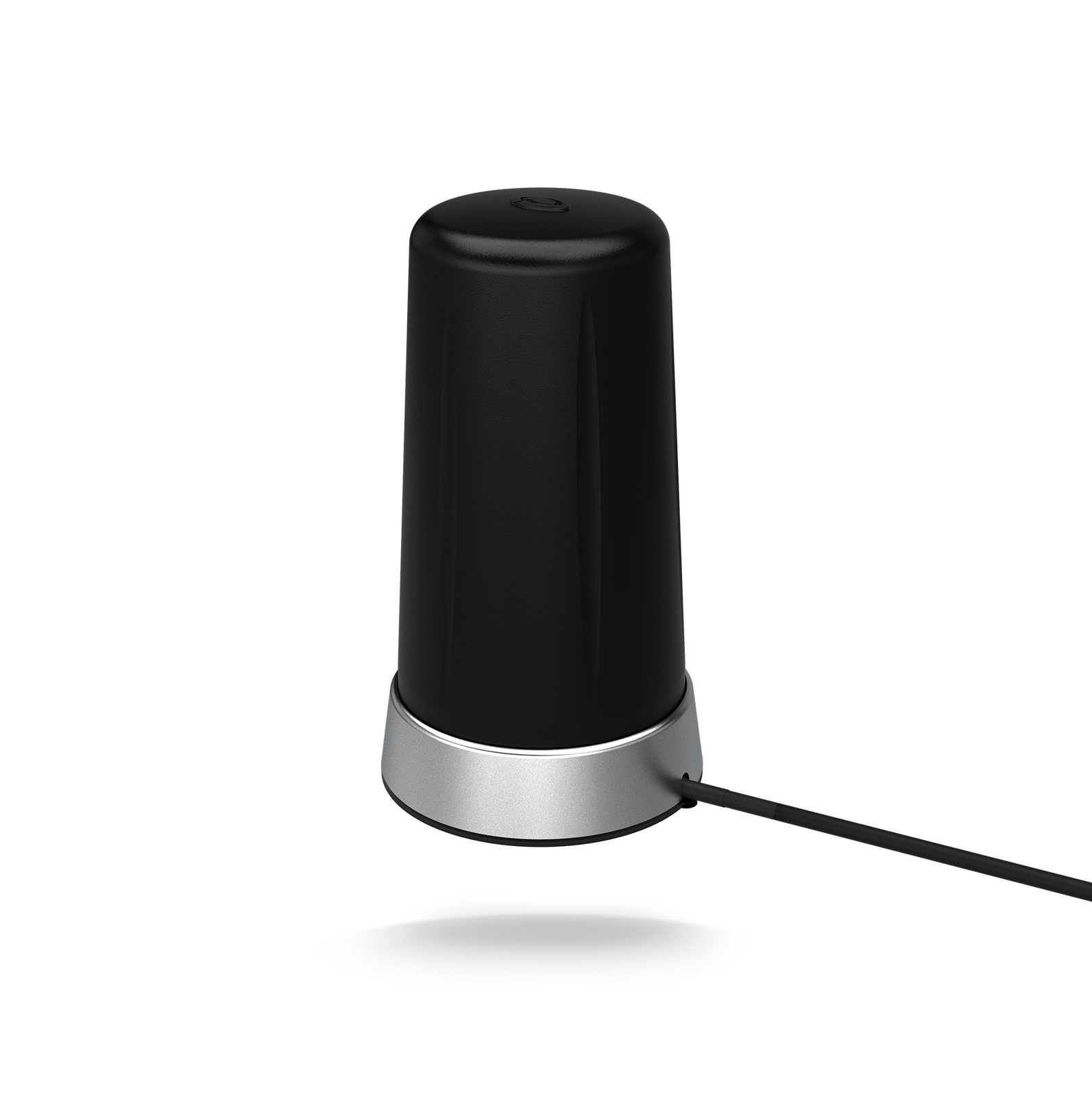

Panorama LPBEM-7-27 Wideband Magnetic Mount Antenna

Key Features

• Low profile magnetic design

• Excellent Bandwidth

• Supports 2G/3G/4G/5G, 617-960 MHz, 1710-2170 MHz, 2170-2700 MHz,

Usage

• The Panorama LPBEM-7-27 is a range of low cost high performance magnetic mount antennas for temporary fit applications

• At only 96mm (3.7”) high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear

• The LPBEM offers excellent performance across a wide bandwidth

• The LPBEM-7-27 covers global cellular and LTE frequencies from 617-960 MHz, 1710-2170 MHz, 2170-2700

• Although intended for magnetic mounting on a conductive ground plane, the antenna can also be used for desk mounting applications with some impact on performance

• Supplied with a convenient 5m length of flexible RG174 cable, terminated with SMA Male (Plug) connector, the LPBEM is easy to install and compatible with a large range of modems.

Specifications / Frequency

Electrical Data

• Frequencies: 617-960 MHz, 1710-2170 MHz, 2170-2700 MHz,

• Typical VSWR: <2.5:1

• Peak Gain (dBi): 617-960 MHz 3dBi, 1710-2170 MHz 4dBi, 2170-2700 MHz 5dBi,

• Max Input Power (W): 25

• Pattern: Omni-directional

• Ground Plane Independent: Yes, but best performance on metal surface

Mechanical Data

• Available Colours: Black

• Height (mm): 96

• Diameter (mm): 48

• Operating Temperature: -40 / + 80°C

Mounting Data

• Mounting Type: Temporary Mount

• Mounting Method: Magnetic Mount
