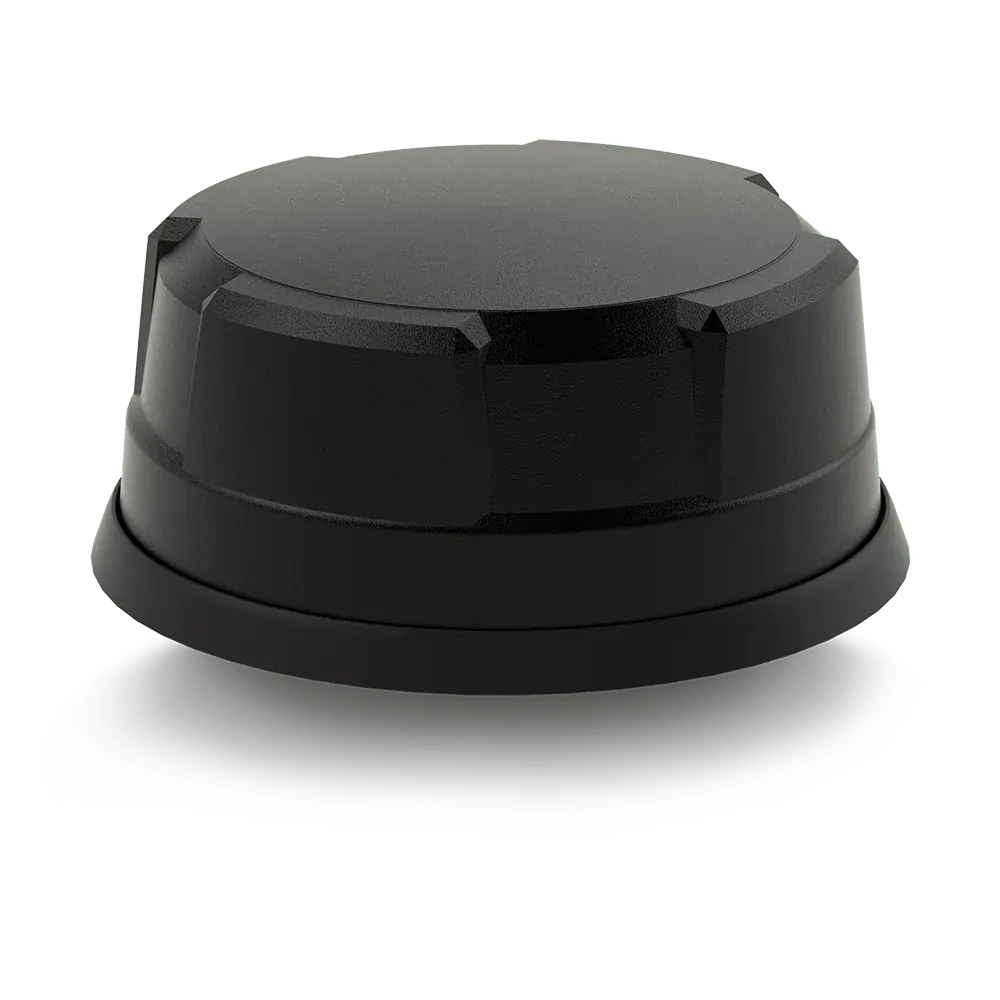

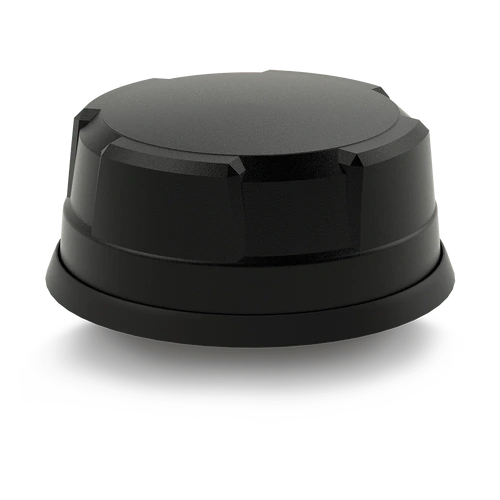

Panorama MAKO 4x4 MuMiMo 4G/5G Dome Antenna with 2x2 Dual Band WiFi & GPS

Key Features

Designed for latest generation LTE Cat 18/20 routers and devices
Low profile antenna with up to 11 functions in 1
4×4 MiMo 4G/5G LTE cellular, Optional GPS/GNSS & optional MiMo 2.4/7.2GHz in one housing
Kits with extension cables available for a range of LTE routers
Flame retardant cables compliant to UNECE R118
Pre-terminated antenna connectors fitted as standard
Cable flags attached for easy cable identification and installation

The MAKO® 5G Dome LGMDM4B-6-60-24-58 represents a series of advanced 4×4 MiMo antennas that operate within the frequency range of 617-960/1710-6000MHz, operating with 4x4 MuMiMo.
The MAKO® 5G Dome LGMDM4B-6-60-24-58 provides MiMo/Diversity at 2.4/5.0/7.2GHz for WiFi Service.
The MAKO® 5G Dome LGMDM4B-6-60-24-58also offers GPS/GNSS integratio, as it is equipped with a 26dB gain LNA and superior filtering for exceptional positioning accuracy..
The LGMDM4B-6-60-24-58 system comprises of 7 elements, including four isolated high-performance antenna elements that facilitate MuMiMo/Diversity at cellular/LTE frequencies across the specified range.
Notably, these LGMDM4B-6-60-24-58 antennas do not require a metallic ground plane and perform effectively even when installed on non-metallic surfaces.
While the LTE elements are optimized for 4×4 MiMo operation, they can also be configured as two pairs of 2×2 MiMo for routers with two SIM cards in a failover setup, where only one SIM is active at any given time. It is essential to verify network coverage to determine the suitability of this configuration.
Detailed instructions for the proper connection of the LTE antennas are included in the installation guidelines.
Please be advised that this antenna is not designed for use with routers that utilize two SIM cards for simultaneous or aggregated data operations, due to insufficient isolation between the MiMo pairs.

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	10
Frequency Range \| Gain	617 – 960MHz \| 4dBi; 1710 – 3800MHz \| 8dBi; 4900 – 6000MHz \| 9dBi
Cellular LTE Elements	4 x 4 MIMO
WIFI Elements	No; 2 x 2 MIMO; 4 x 4 MIMO; 6 x 6 MIMO; 5 x 5 MIMO; 3 x 3 MIMO
UHF Elements	No
GPS DATA
GPS Frequency Range	1562-1612MHz
LNA GAIN (dB)	26
Number of GPS Elements	1 Module; No
MECHANICAL DATA
Colour	Black; White
Height	80 (mm) \| 3.15 (in)
Diameter	180 (mm) \| 7.09 (in)
Operating Temperature	-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE	min: 0.3 (m) \| 0.98 (ft); max: 5 (m) \| 16.4 (ft)
Cable length – GPS	min: 0.3 (m) \| 0.98 (ft); max: 5 (m) \| 16.4 (ft)
Cable Length – WIFI	min: 0.3 (m) \| 0.98 (ft); max: 5 (m) \| 16.4 (ft)
Cable Type (LTE)	FR RG174; RG174
Cable Type (GPS)	FR RG174
Cable Type (WIFI)	FR RG174; RG174
Quantity of Cell Cable	4
Quantity of GPS/GNSS Extension	1
Quantity of WIFI Extension	max: 6
TERMINATION DATA
Connector (WIFI)	Reverse Polarity SMA; FAKRA I; SMA (f)
Connector (GPS)	SMA (m); FAKRA C; FME (f)
Connector (LTE)	SMA (m); FAKRA D; N (f)
MOUNTING DATA
Mounting Type Fixed	Panel
Mounting Type Temp	Magnetic
Mounting Methods	Magnetic; Panel
APPROVALS DATA
IP Rating	IK10; IP69K
Cable Flammability	EN45545-2 HL3; UN ECE R118; EN6722
TECHNOLOGY DATA
Technology	GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS; WIFI MIMO; WIFI

(LGMDM4B-6-60-24-58)
