Netcomm 3G38WV Patch Lead



Key Features



  • Connects 3G WiFi Router to your antenna (FME Male)

  • 15cm RG174 cable with SMA Male connector

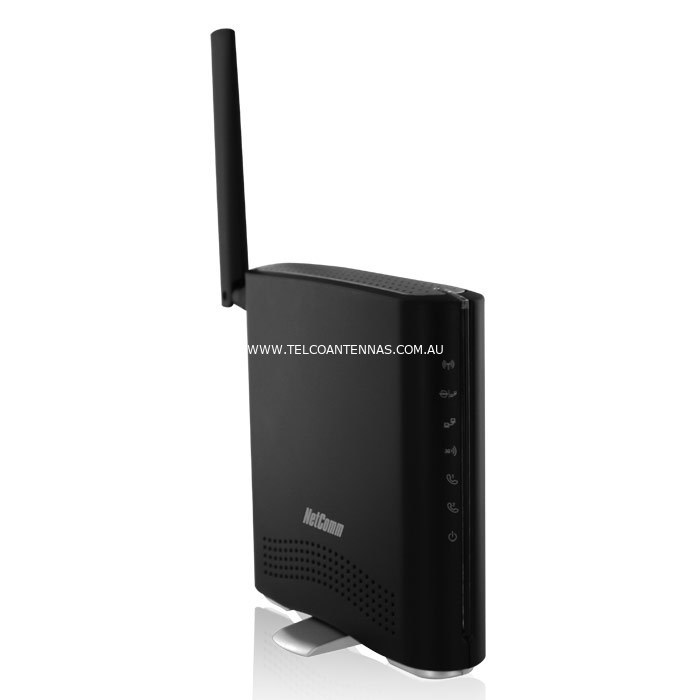

  • Boost the signal strength and speed of your Netcomm 3G38WV Router.



Why use an external antenna?



  • Next time you're out-and-about look around you - every day thousands of Australians use external antennas to enjoy fast, uninterrupted wireless broadband internet

  • If you're in a rural, hilly, low signal area, or you can't get a good signal indoors, there's no need to tear your hair out over slow mobile broadband crashing or dropping out half way, when an external antenna is often all you need.



What does a patch lead do?



  • Most antenna cables terminate with a standard connection, most commonly a female 'FME' connector

  • To plug an antenna into your phone or wireless modem, you need a short cable that acts as a conversion from the FME connector to the device-specific connector that will plug into the antenna port on your device.



Connectors



SMA male connector FME male coaxial connector
Male SMA Connector
Male FME Connector


Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-3GHz

  • Working Voltage: 335V RMS

  • Withstand Voltage: 1000V

  • RMS Insertion Loss: <0.4dB/3GHz VSWR: <1.25:1



Mechanical/Environmental Specifications



  • Cable: 150mm RG316

  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel/Gold

  • Pin/Socket Contact: Beryllium

  • Pin/Socket Plating: Gold/Gold

  • Insulator: PTFE Operating Temperature: -55° to 155° C



Read More





(SMAM-FMEM-3G38WV)

SKU SMAM-FMEM-3G38WV
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.300m
Shipping Cubic 0.000270000m3
