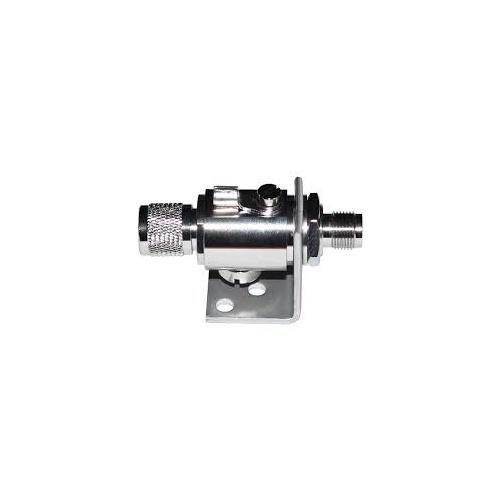

Phaseblocker Inline (Male to Female) Lightning Arrester

Key Features

• N Male to N Female Bulkhead connectors

• For devices operating 0-40W

• Bi-directional protection

• DC Pass

• Removable L bracket for bulkhead panel mounting

• Protect your antenna and device from dangerous electrical surges.

Usage

• Gas tube lightning protection with excellent VSWR and superior RF performance characteristics for equipment operating DC to 6GHz with up to 40W RF power

• Male to Female arresters designed for installation in-line between an antenna and feeder cable

• By installing at the tower-top position, this arrester helps protect not only the end user equipment, but the cabling itself

• When feeder lengths exceed 10-15m vertically a second arrester is recommended at the equipment end of the cable to protect against parasitic coupling

• Given the critical nature of remote communications, this high grade surge suppressor has been designed with safety as a priority

• This device has a built-in gas-charging surge arrester element which discharges and grounds the surge the moment the surge voltage exceeds the pre-specified level

• This device makes the actions of surge discharge and restoration repeatedly - no replacement necessary.

Specifications / Frequency

Electrical Specifications

• Frequency Range: DC - 6GHz

• Input Impedance: 50Ω

• VSWR: <1.2:1

• DC-6GHz Insertion Loss: <0.4dB

• DC-6GHz Return Loss: >26dB

• Power Rating: 0-40W

• Sparkover Voltage: <90VDC

• Voltage protection level @ 3kA (8/20us): <600V

• Maximum Discharge Current: 10kA @ IEC 61000-4-5 8/20us waveform

Mechanical/Environmental

• Construction: Nickel plated brass

• Durability: >500 cycles

• Connector: N Male to N Female Bulkhead

• Temperature: -40 to +155ºC / 5 to 95% non-condensing

• Environmental Protection Level: IP55

• Weight: 155g

• Dimensions: 64 x 26mm (L x Ø)

Applications

• Cellular (GSM, UMTS, LTE)

• WiMAX - 2.4 & 5.8GHz WiFi

• ISM

• UNII

• Coaxial DC Pass Applications (Remote Amplifiers, LNA, etc)

Read More

• Specification Sheet
