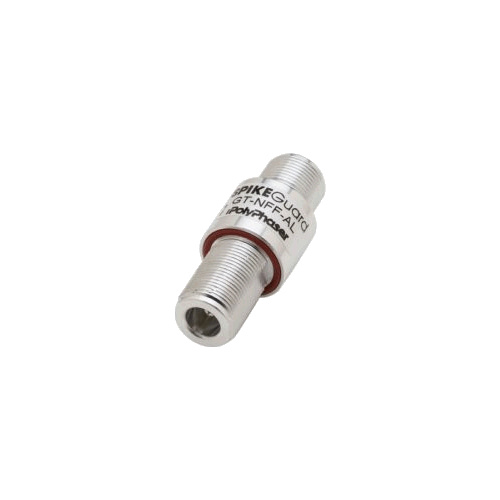

Polyphaser Panel Mount Lightning Arrester



Key Features



  • N Female Bulkhead to N Female connectors

  • For devices operating 0-90W

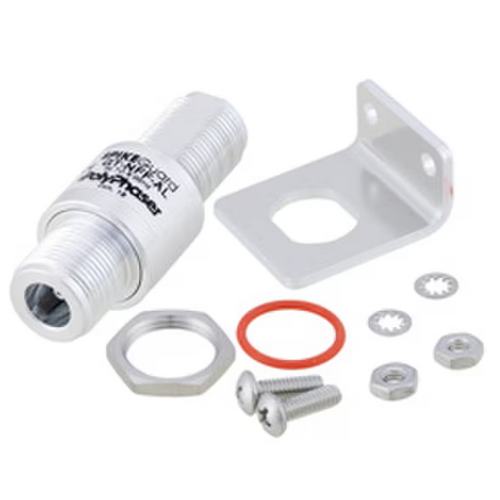

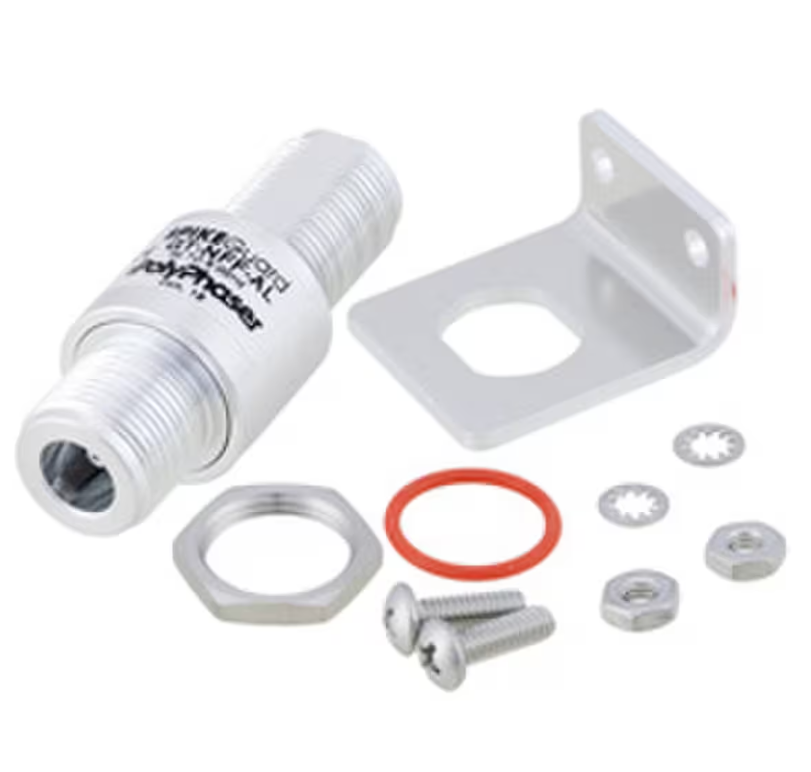

  • Removable L bracket for bulkhead panel mounting

  • Protect your antenna and device from dangerous electrical surges.



Usage



  • Gas tube lightning protection with excellent VSWR and superior RF performance characteristics for equipment operating between DC and 7 GHz with up to 90W RF power configured with N female connectors - bidirectional.



Specifications / Frequency



Electrical Specifications



  • Frequency Range: DC - 7GHz

  • Input Impedance: 50Ω

  • VSWR: <1.1:1 DC-3GHz, <1.4:1 3GHz-7GHz

  • Insertion Loss: <0.1dB DC-3GHz, <0.25dB 3GHz-7GHz

  • Power Rating: 0-90W

  • Impulse Sparkover: 500V @1000V/?s

  • Sparkover Voltage: <150VDC

  • Holdover Voltage: 80V @150ms

  • Maximum Discharge Current: 20kA one time @ IEC 61000-4-5 8/20us waveform

  • Maximum Operating Current: 10A



Mechanical/Environmental



  • Construction: Nickel plated brass

  • Connector: N Female Bulkhead to N Female

  • Temperature: -55 to +85ºC

  • Weight: 36g

  • Dimensions: 57 x 22mm (L x Ø)
