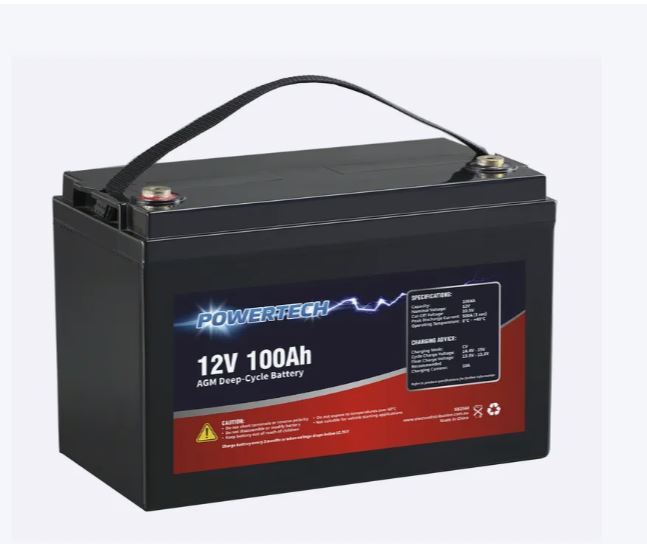

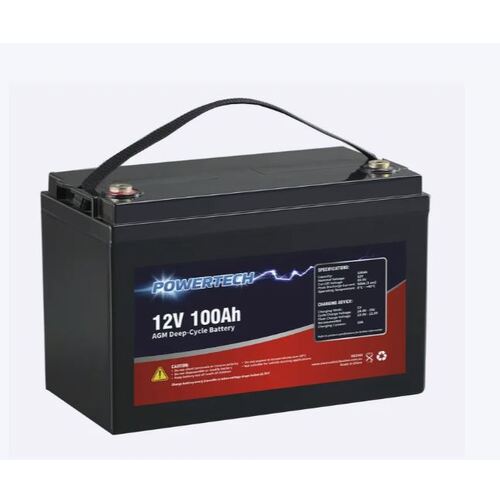

Powertech 12V 100Ah AGM Deep Cycle Battery

This product has an absorbent glass mat embedded in the structure of the plates. (There are 6 sets of plates, each 2.0V which makes up a “battery” of plates, i.e. 12V). The mat does two things. It reinforces the lead frame of each plate, or cell, and it stops the plates from buckling under heavy discharge current). By helping make the innards of the battery virtually solid, you can mount it in any position, but it is still preferable, of course, to mount the battery upright, even for the sake of convenience of terminal access.

Specifications

Battery Charging Standard Recharge Current : 10.0 A

Leakage Properties: 91% charge after 3 months; 82% charge after 6 months; 64% charge after 12 months

Recharging Time: 10.0 hr

Battery usage: Bulk Storage

Battery Chemical Composition: Deep Cycle AGM

Battery Peak Current: 500.0 A

Amp Hour Rating: 100.0 Ah

20 Hour Capacity: 103.0 Ah

10 Hour Capacity: 100.0 Ah

5 Hour Capacity: 80.0 Ah

1 Hour Capacity: 63.0 Ah

Connection Type: M8 Bolt/Nut

Type of battery: SLA Block

Peak Discharge Duration: 5.0 sec

DC Voltage: 12.0 V

Product Dimensions

Length: 330.0 mm

Width: 172.0 mm

Height: 217.0 mm

Weight: 28.4 kg
