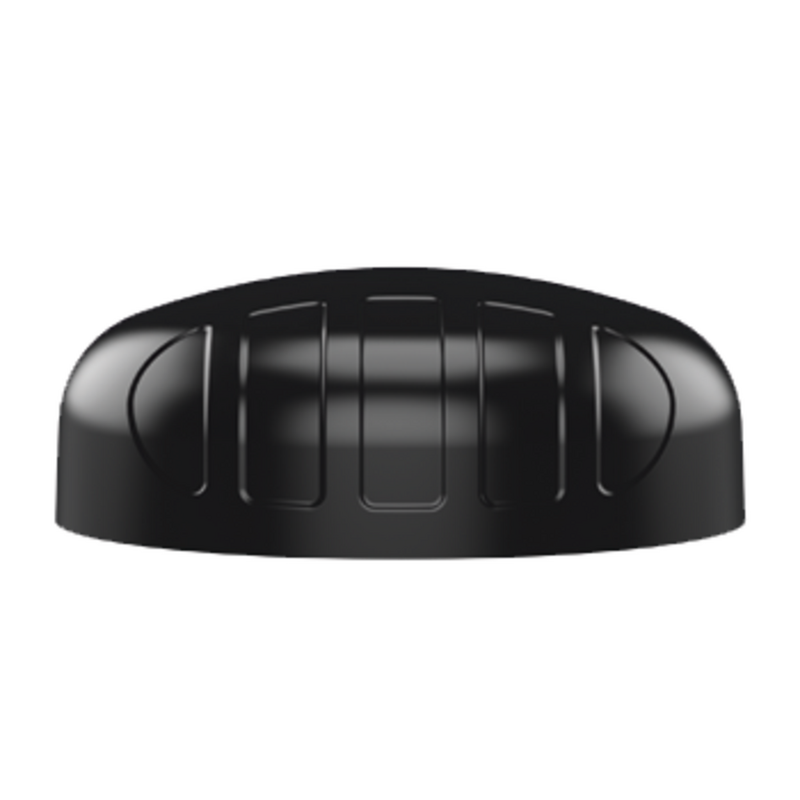

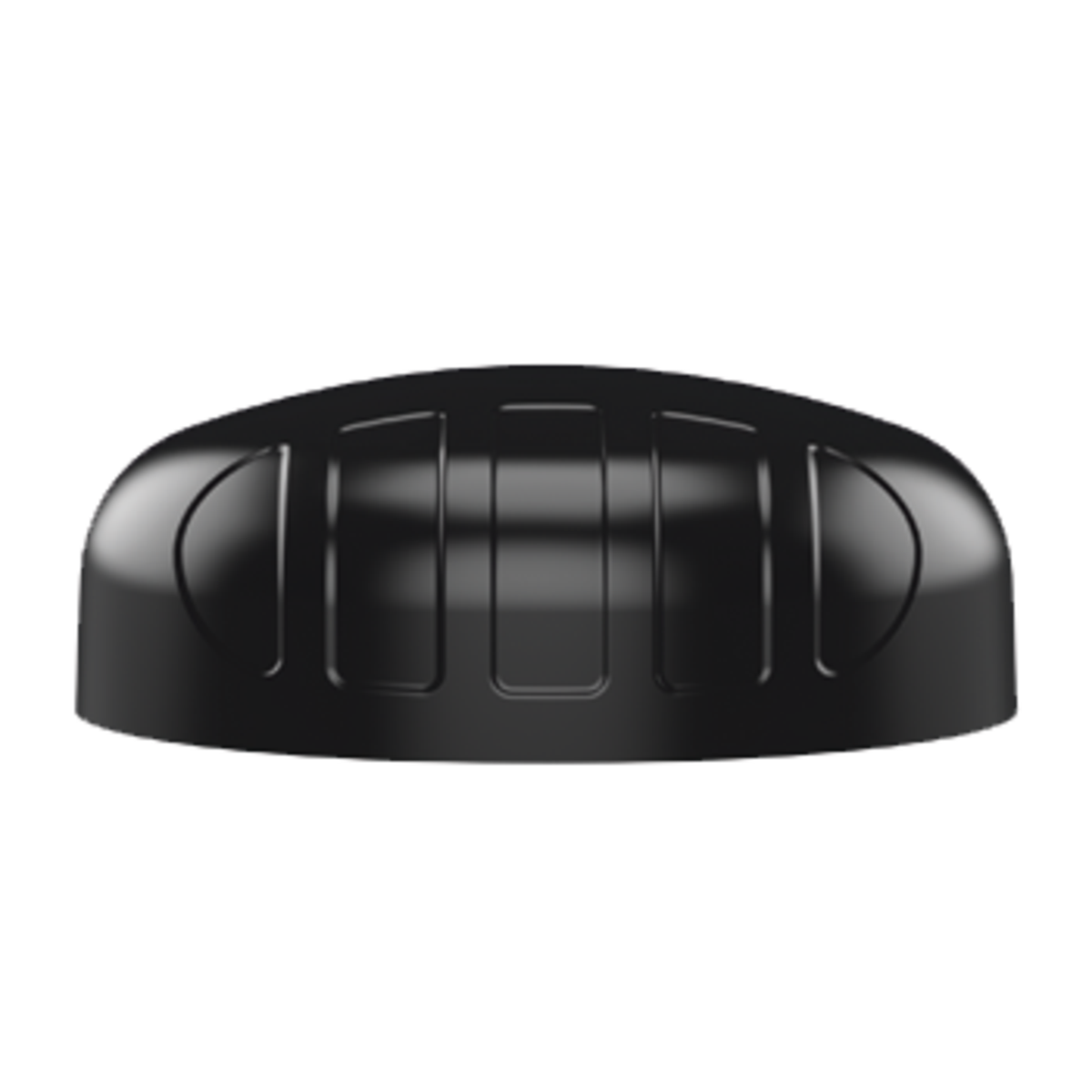

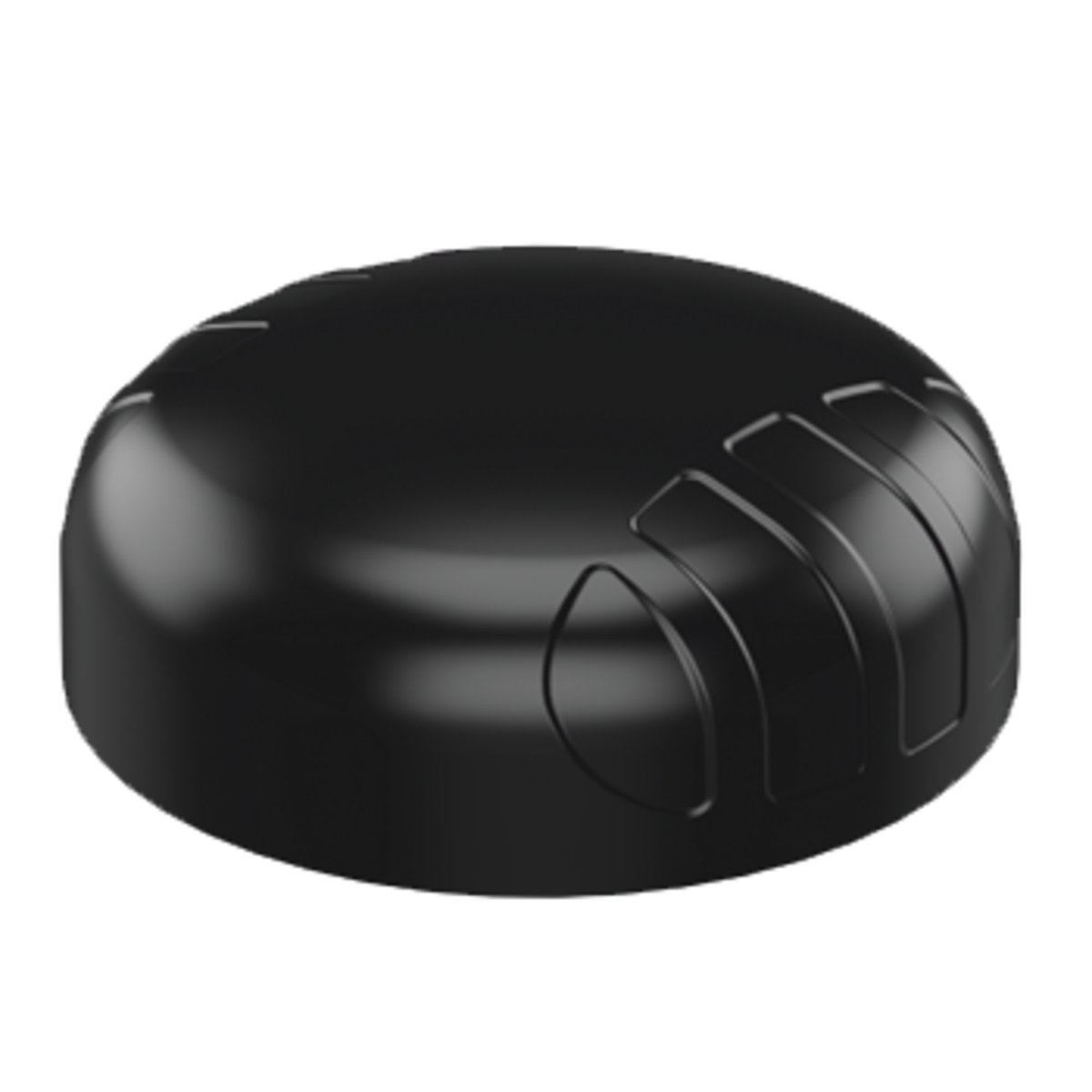

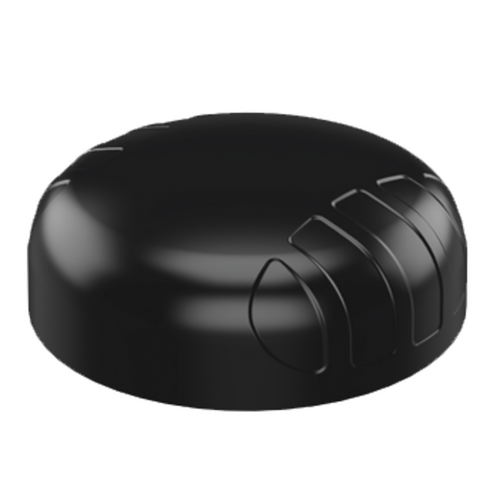

Poynting 2-In-1 Wi-Fi 2x2 MIMO Transportation & IoT/M2M Antenna (2400-6000 MHz); 2m, SMA(M) (Black)



Key Features

  • Small & Low-profile (Ø100mm x h 36mm)

  • Careful mechanical design provides ruggedness, corrosion, water and dust resistance (IP69K)

  • Fire Resistant

  • UV Stable Enclosure

    • Easy installation; multi-implementation options available:

    • Spigot Mount

    • Magnetic Mount

    • Adhesive Tape Mount

    • Bracket Mount



Usage



  • Poynting’s new PUCK range offers a small profile antenna which can be used in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets.
    The PUCK-12 consists of a 2-in-1 antenna system within a single housing, featuring 2x2 MIMO Wi-Fi (Dual-band 2.4 GHz & 5 GHz).

  • The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4 GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO.

  • The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna.

  • The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna.
    Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for Wi-Fi throughput and connection stability.



Read More



(PUCK-12-B)

SKU PUCK-12-B
Brand Taoglas
Shipping Weight 0.5500kg
Shipping Width 0.340m
Shipping Height 0.120m
Shipping Length 0.120m
Shipping Cubic 0.004896000m3
