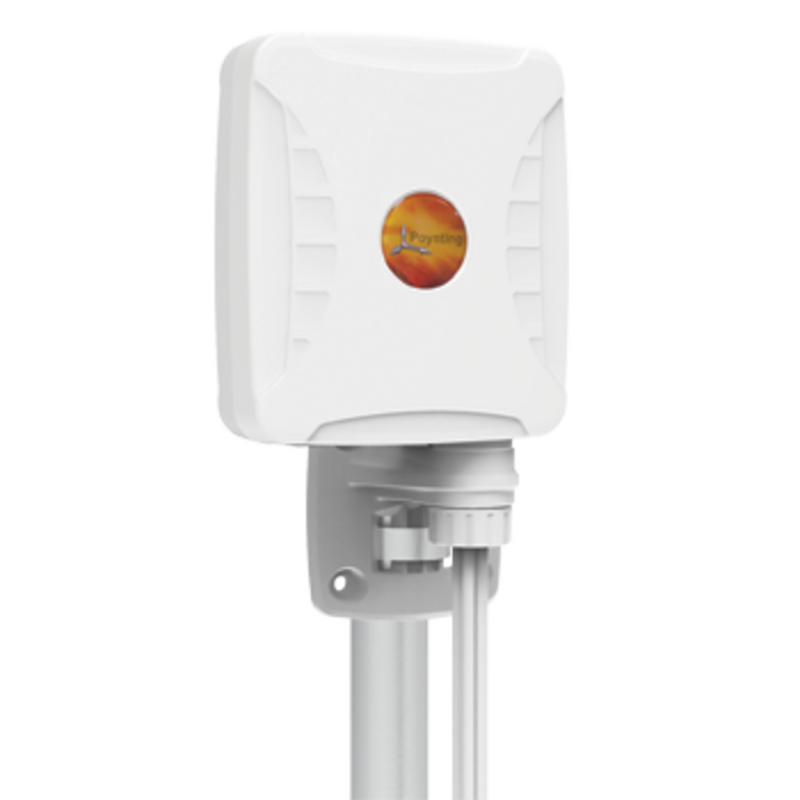

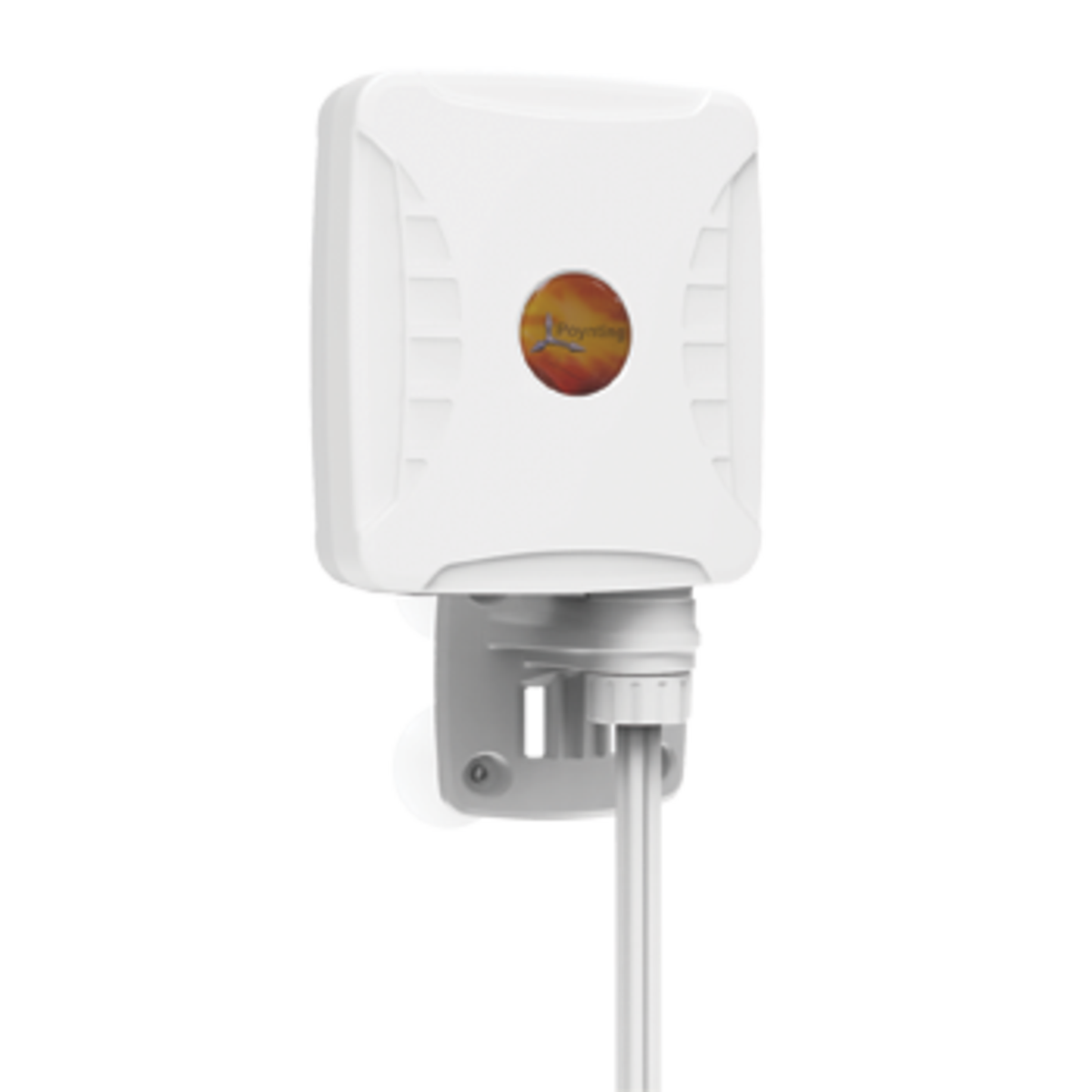

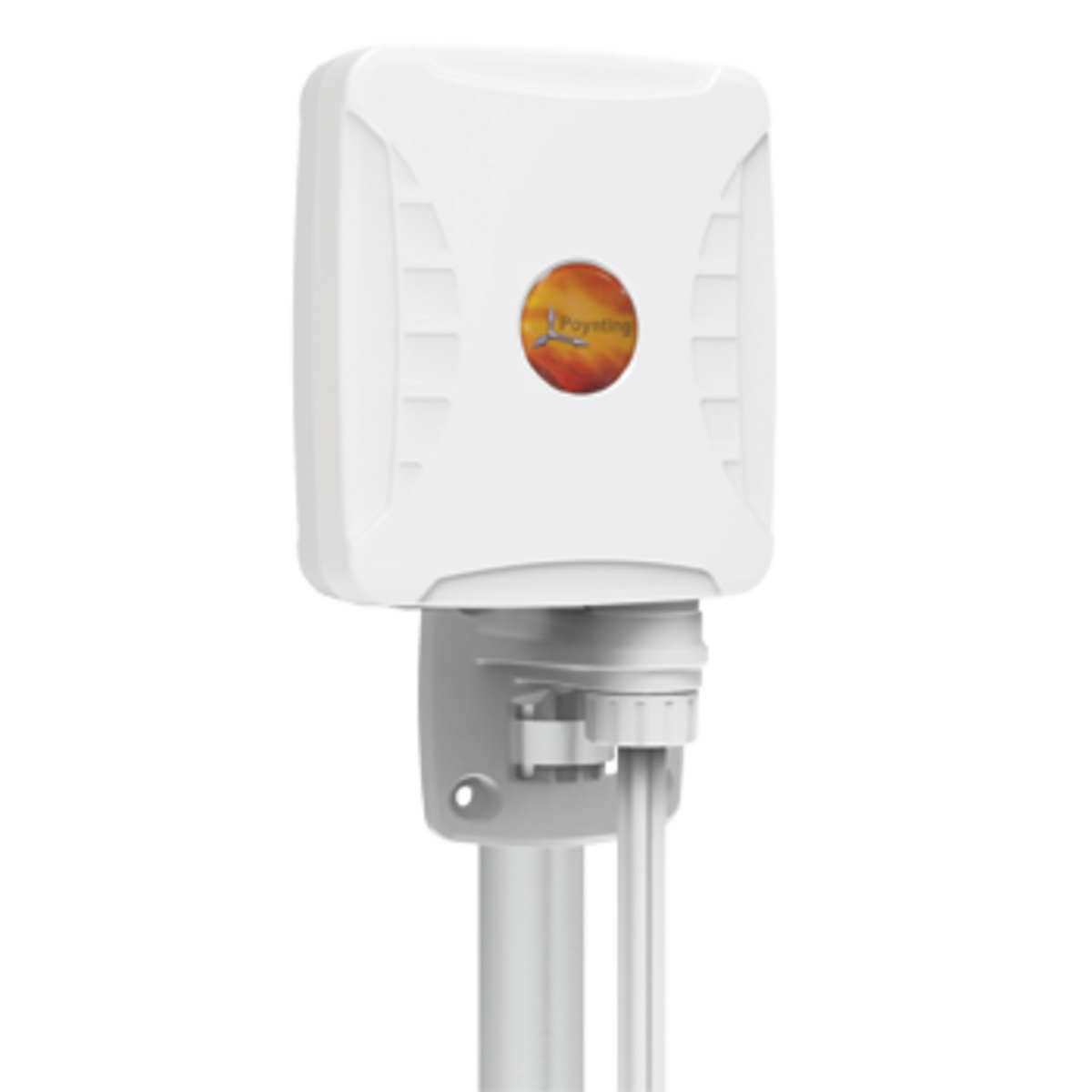

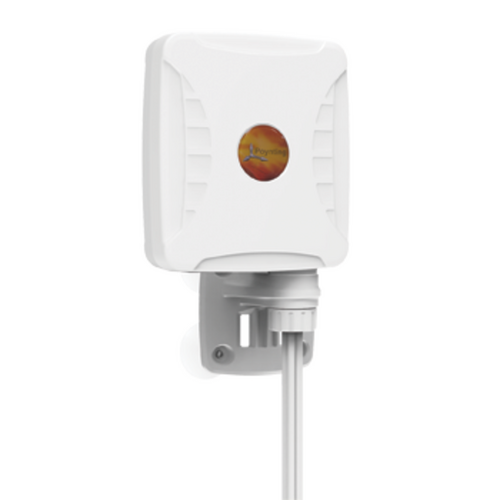

Poynting 2x2 MIMO Omnidirectional 3G+4G+5G Antenna - 617-3800MHz

Key Features

• Covers 5G band N78 as well as 4G

• Cross polarised 2x2 MIMO

• Wall, pole or window mounting

• Light weight & rugged

• Weatherproof (IP65)

• High pattern consistency across bands for 4G/5G carrier aggregation

Usage

• This omnidirectional LTE MIMO antenna provides an innovative and future proof solution for 5G and 2G/3G/4G networks and is ideal for those seeking increased signal and hence faster, more reliable data speeds on today’s modern 4G & 5G networks

• This Antenna supports LTE-A allowing for carrier aggregation across the 4G & 5G bands within Urban areas.

• It incorporates two separately fed ultra-wideband elements in a single housing which provides basic MIMO diversity for the networks of today and tomorrow.

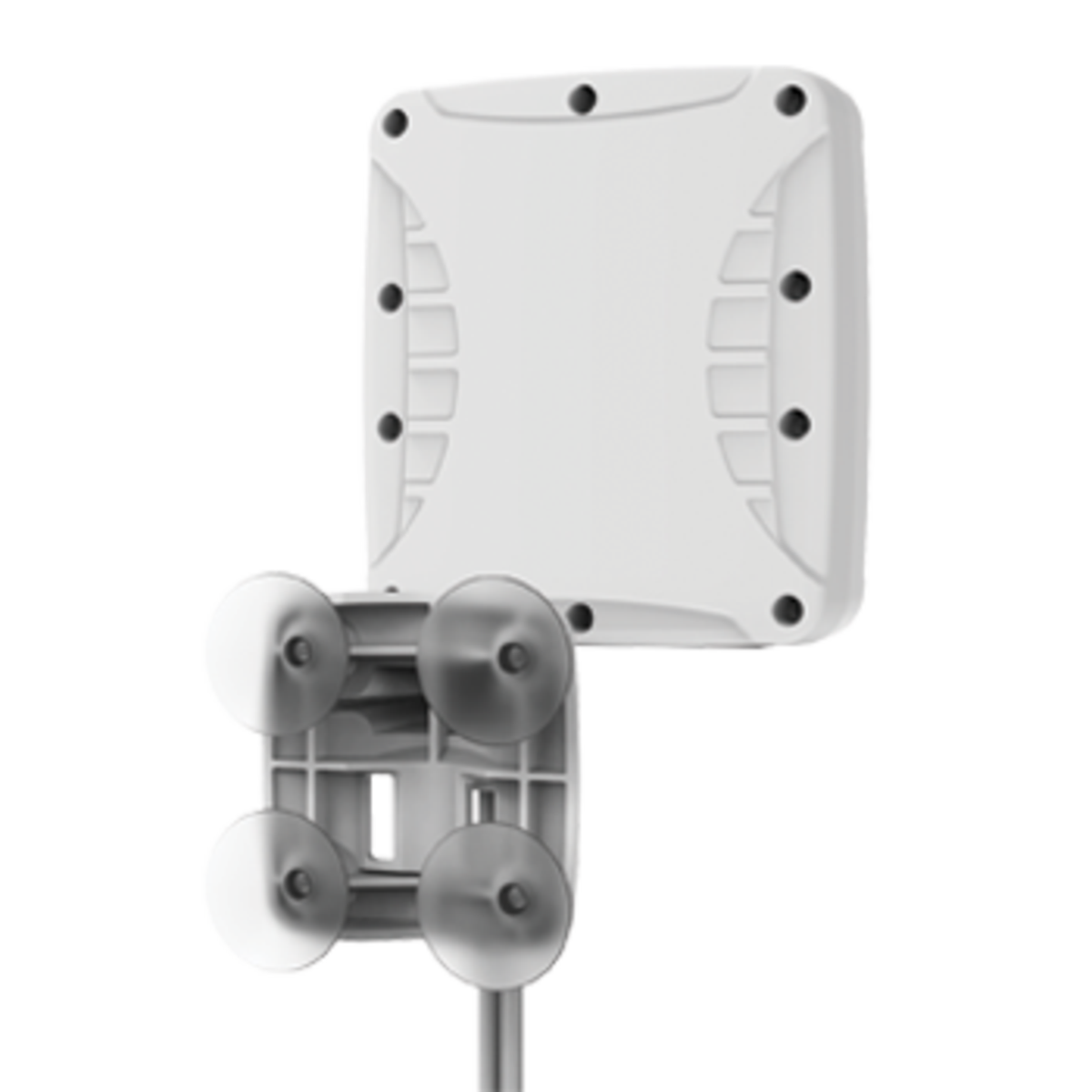

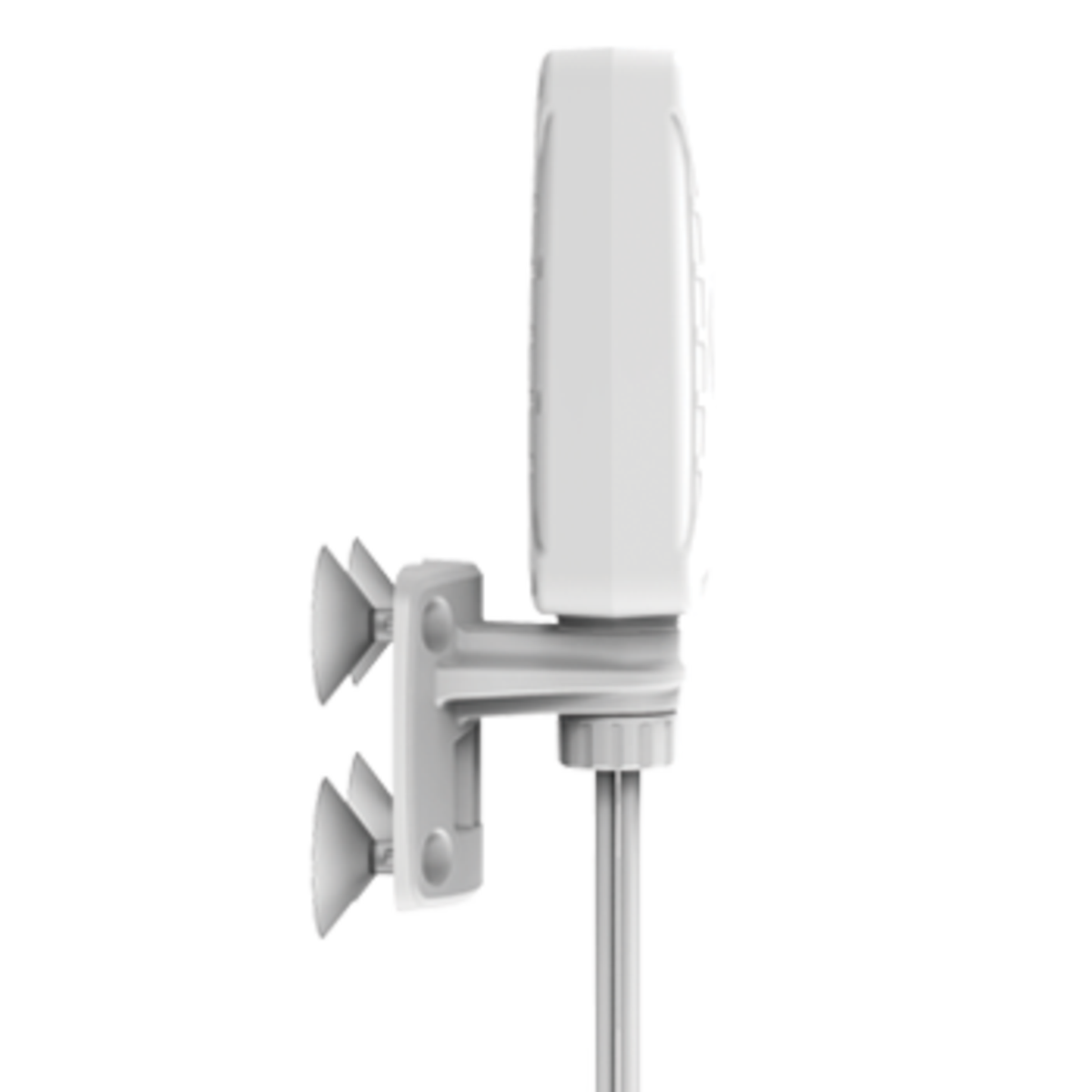

• The weatherproof housing is designed for window (suction), pole and wall mounting and has dual 5m low loss cables terminated with SMA male connectors

• If you require longer cables you can select the N-Female connector option to allow connecting antenna extension cables.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700 MHz)		3 dBi
Optus 4G+ (700 MHz)		3 dBi
LTE Bands 12-14, 17, 28, 29, 44 (700 MHz)		3 dBi
Telstra Next-G™ (850 MHz)		3 dBi
Vodafone 4G+ (850 MHz)		3 dBi
Optus Regional 3G (900 MHz)		3 dBi
Vodafone Regional 3G (900 MHz)		3 dBi
Telstra/Optus/Voda 4G (1800 MHz)		3 dBi
LTE Bands 2, 25, 35-37, 39 (1900 MHz)		3 dBi
LTE Bands 1, 33, 34 (2100 MHz)		3 dBi
All Carriers - Urban/Metro 3G (2100 MHz)		3 dBi
Optus 4G TDD (2300 MHz)		3 dBi
LTE-TDD Bands 40 (2300 MHz)		3 dBi
802.11 b/g/n/ac WiFi (2400 MHz)		3 dBi
LTE Band 41 (2500 MHz)		3 dBi
LTE Bands 7, 38 (2600 MHz)		3 dBi
Telstra 4GX Band 7 (2600 MHz)		3 dBi
All Carriers - 5G (3500MHz)		3 dBi

Electrical Specifications

• Frequency Range: 698–960 / 1810–2700 / 3400–3800MHz

• Input Impedance: 50Ω

• VSWR: <2.5:1 over 90% of the Bands

• Polarisation: X-Pol 45/135°

• Radiation: Omnidirectional (Directional X-Pol)

• Maximum Power: 20Watts

Mechanical/Environmental Specifications

• Cable: 2x 5m LMR195

• Connector: 2x SMA Male or 2x N Female (your choice)

• Wind Rating: 250km/hr

• Temperature: -40°C +70°C

• Mounting: Window (suction), wall or pole

• Weight: 950g

• Dimensions: 247 x 157 x 88mm
