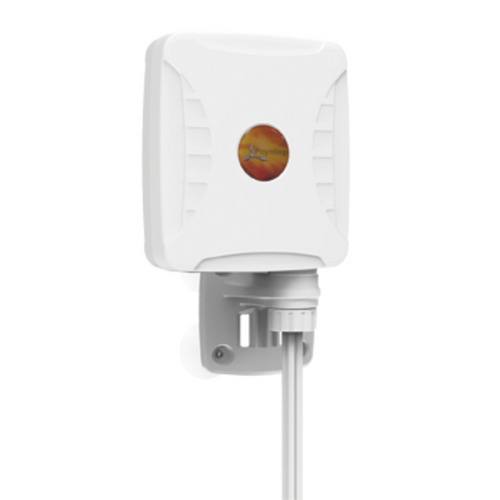

Poynting 4X4 MuMiMo Omnidirectional 4G/5G Antenna - 617-3800MHz

Key Features

• New 3400 to 3800MHz, 5G band

• Broadband, including the latest 3.5GHz bands

• X-Polarised 2x2 or 4X4 MIMO Antenna

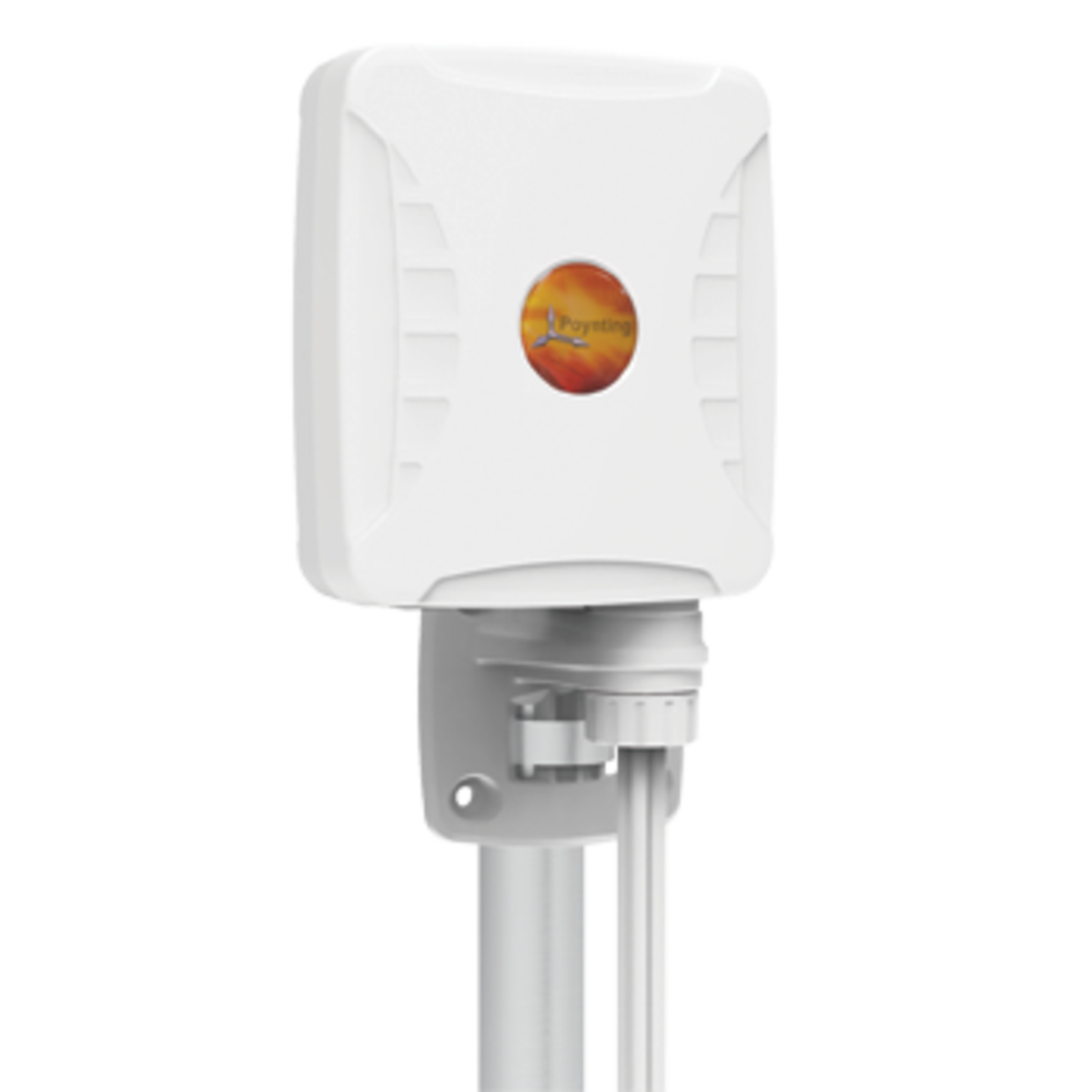

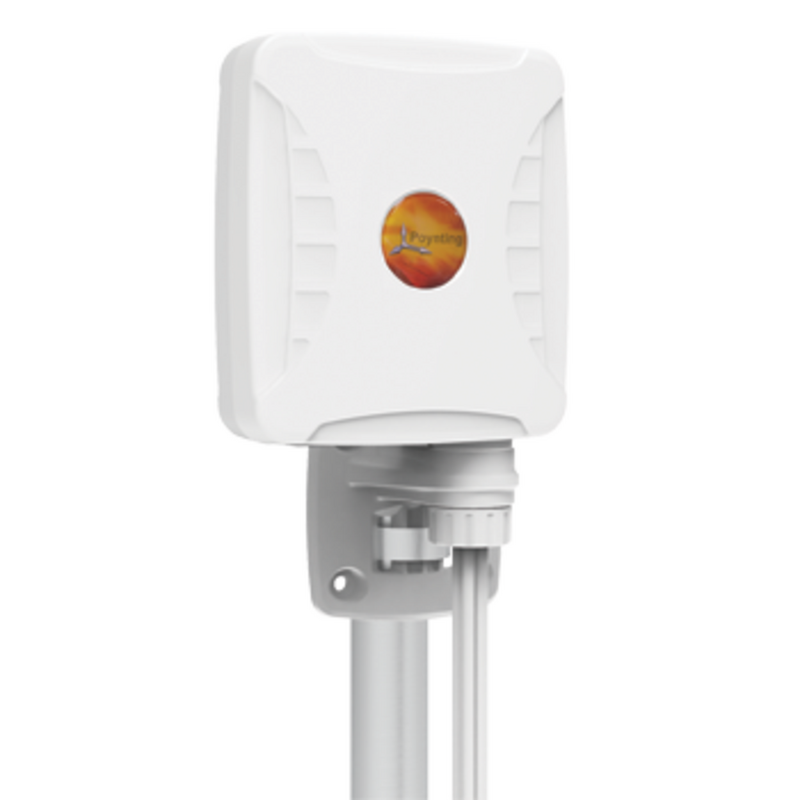

• Wall or pole mountable

• Lightweight & Rugged

• Weatherproof (IP65)

• High pattern consistency across bands for 4G/5G carrier aggregation

Usage

• The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2x2 MIMO antenna.
• The addition of a 4X4 MIMO derivative is also available for user specific needs.
• The antenna has been completely redesigned from the previous generation with an allnew enclosure and antenna design.
• The antenna now includes the newer 3400 - 3800 MHz bands as well as the in demand lower 617 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G.
• This antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1427 – 1517 MHz, 1700 –2700 MHz & 3400 – 3800 MHz, with a peak gain of 3.5 dBi across the frequency bands of operation.
• The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna.
• This makes the antenna perfect for most application areas, such as urban and commercial to achieve the best possible coverage over a large area.
• The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.

Applications

• Outdoor antenna for Fixed Wireless Access (FWA)
• Consumer LTE/5G internet connectivity
• Industrial & Commercial LTE/5G deployments
• Urban household reception enhancement
• Power, Energy & Water telemetry access
• Oil & Gas communication systems
• Municipal & Government systems
• Repeaters & coverage enhancement amplifiers

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700 MHz)		0.5dBi
Optus 4G+ (700 MHz)		0.5dBi
LTE Bands 12-14, 17, 28, 29, 44 (700 MHz)		0.5dBi
Telstra Next-G™ (850 MHz)		0.5dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map		0.5dBi
Optus Regional 3G (900 MHz)		0.5dBi
Vodafone Regional 3G (900 MHz)		0.5dBi
Telstra/Optus/Voda 4G (1800 MHz)		3dBi
LTE Bands 2, 25, 35-37, 39 (1900 MHz)		3dBi
LTE Bands 1, 33, 34 (2100 MHz)		3dBi
All Carriers - Urban/Metro 3G (2100 MHz)		3dBi
Optus 4G TDD (2300 MHz)		3dBi
LTE-TDD Bands 40 (2300 MHz)		3dBi
802.11 b/g/n/ac WiFi (2400 MHz)		3dBi
LTE Band 41 (2500 MHz)		3dBi
LTE Bands 7, 38 (2600 MHz)		3dBi
Telstra 4GX Band 7 (2600 MHz)		3dBi
All Networks 5G (3500MHz)		3.5dBi

Electrical Specifications

• Frequency Range: 617-960 / 1427-1517 / 1710-2700 / 3400-3800 MHz

• Input Impedance: 50 Ω

• VSWR: <2.5:1

• Polarisation: Cross Polarised

• Maximum Power: 10 Watts

Mechanical/Environmental Specifications

• Construction Material : UV Stable ASA

• Cable: 4x HDF 195 5m

• Input Connector: 4x SMA Male

• Temperature: -40 °C to +80 °C

• Dimensions: 247 mm x 157 mm x 88 mm

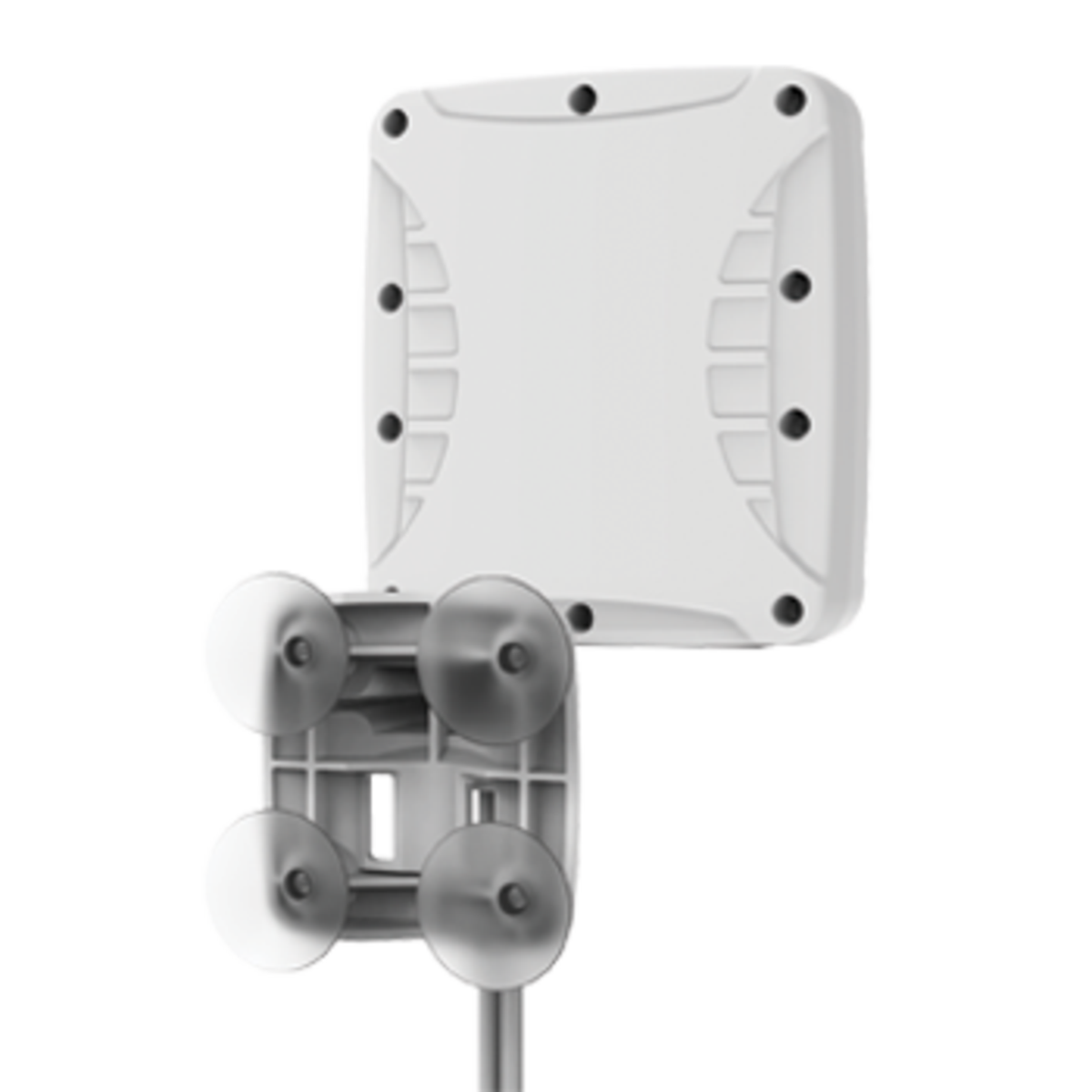

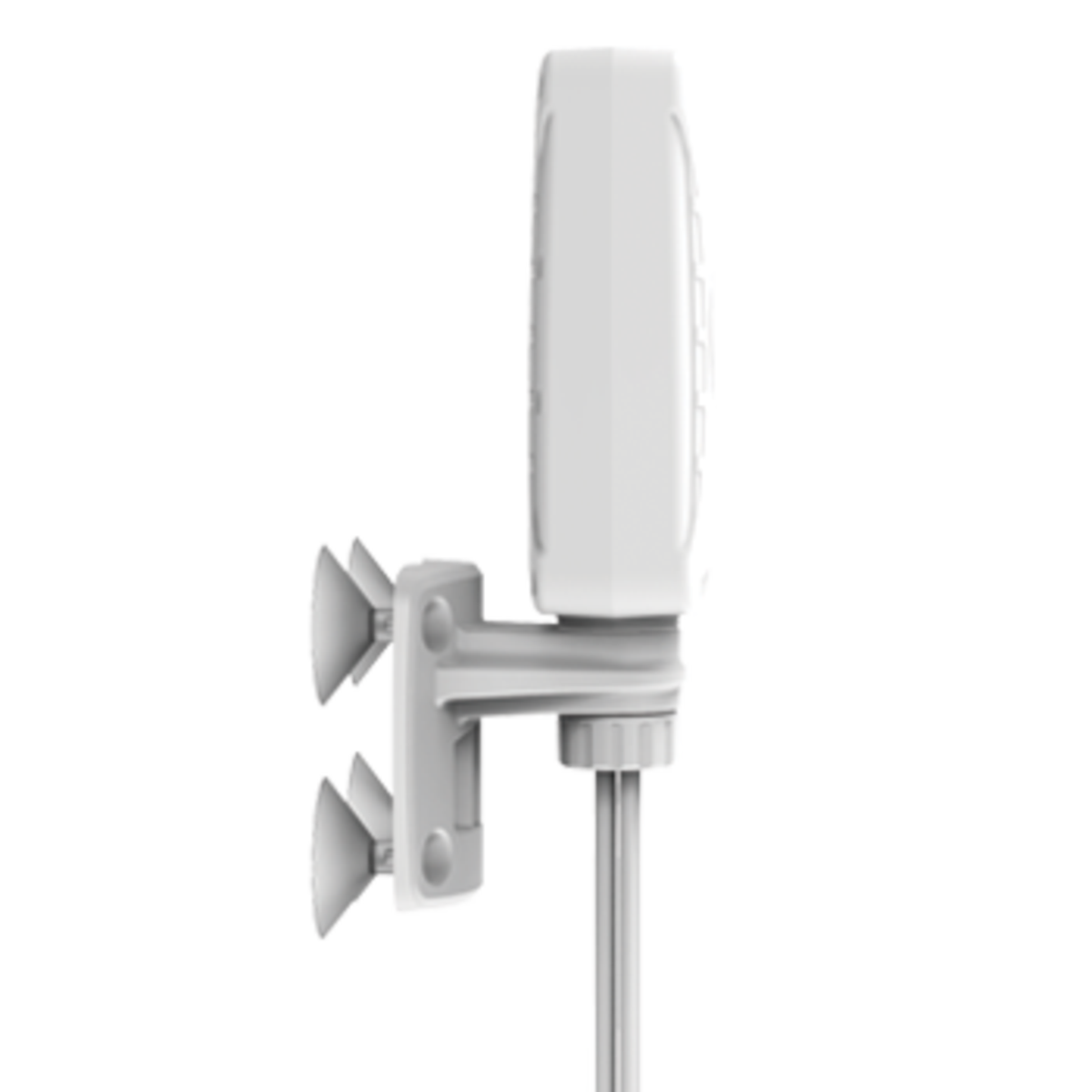

• Fixing: Wall, pole, and window mount

• Rated to IP65
