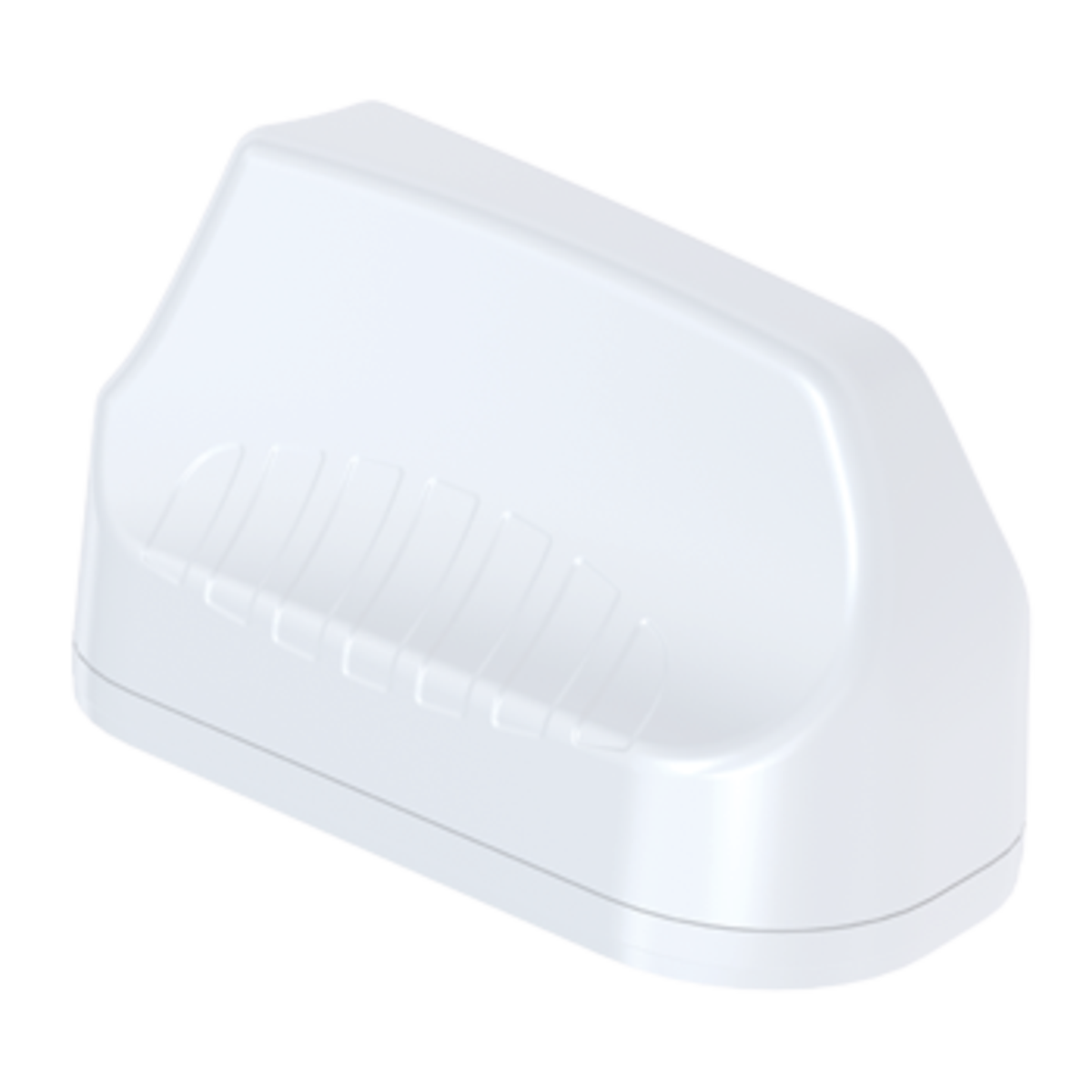

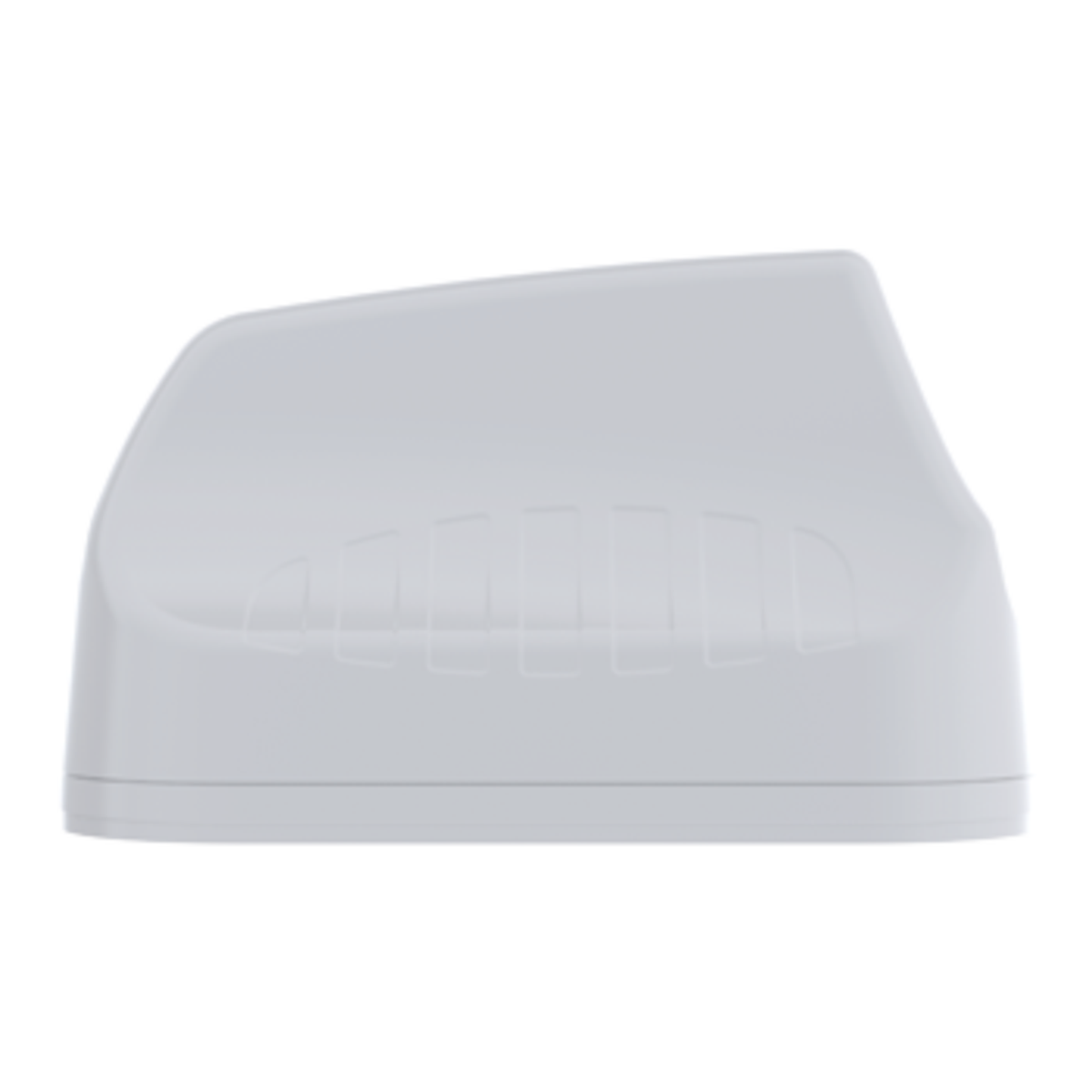

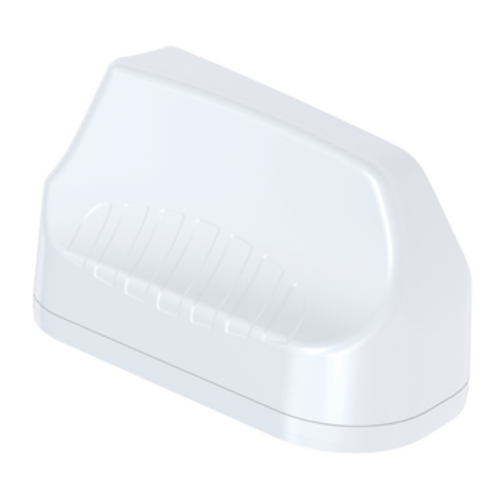

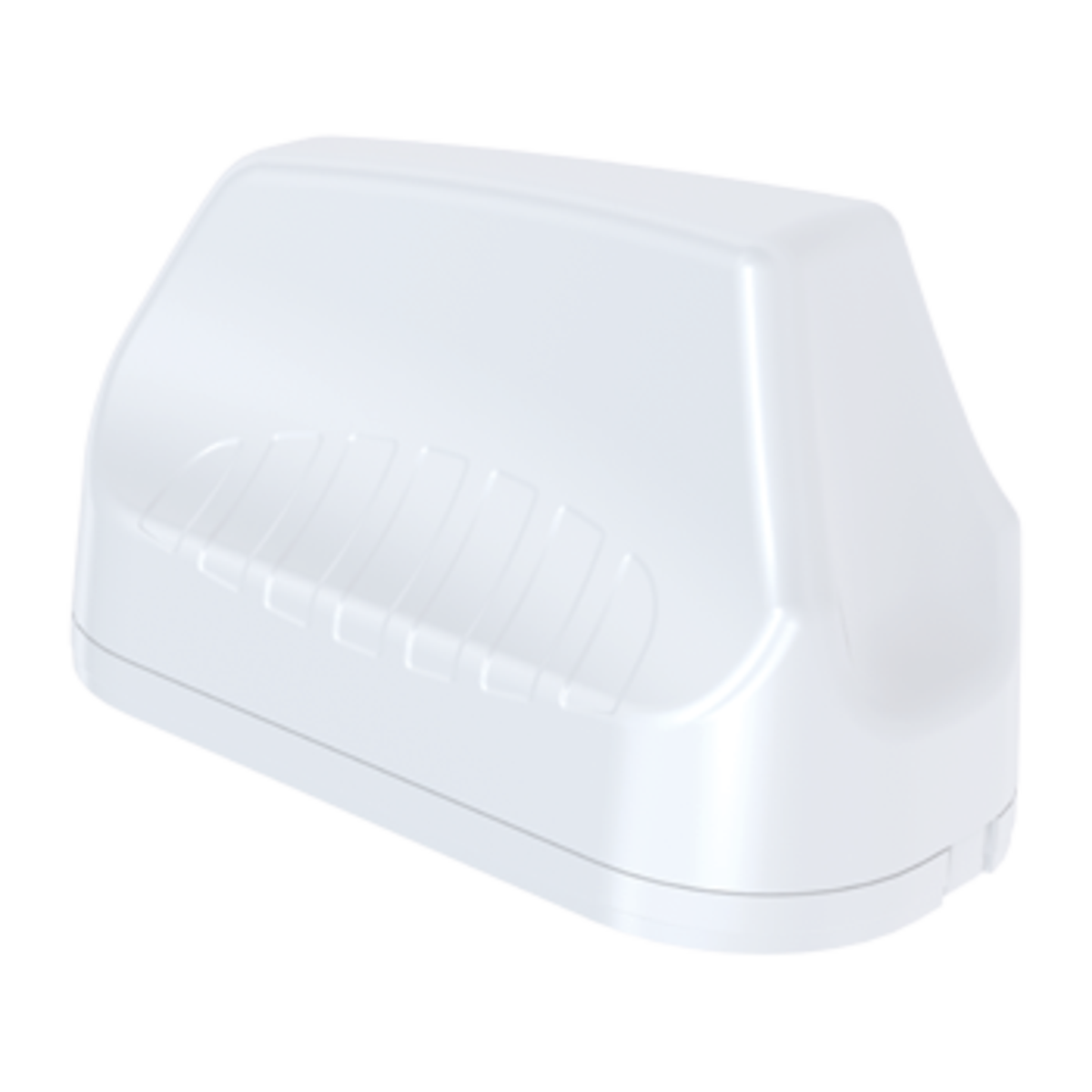

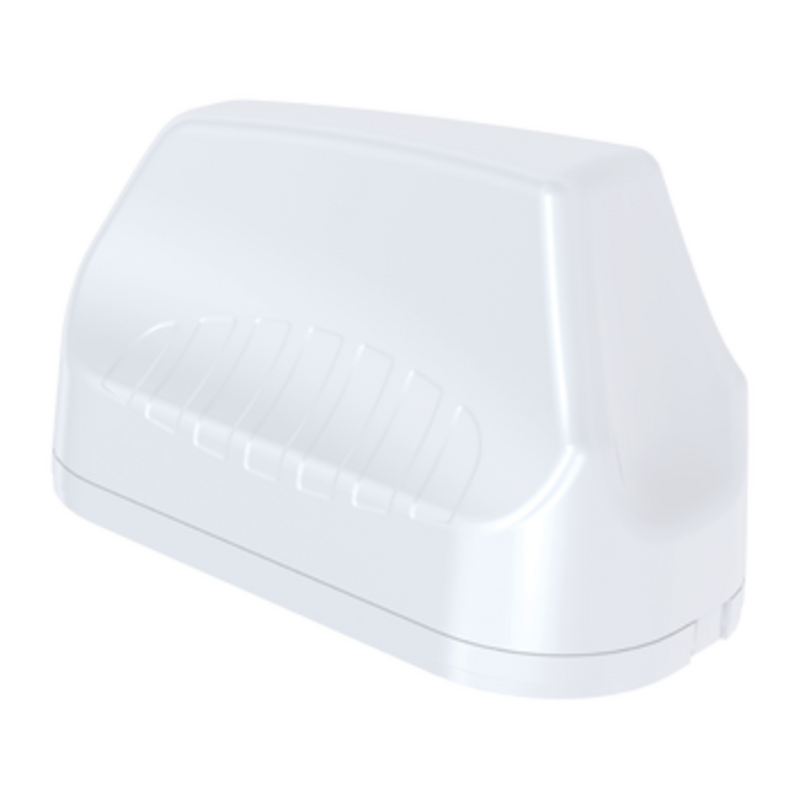

Poynting 5-In-1 5G/LTE 2x2 MIMO, Wi-Fi 2x2 MIMO & GPS Transportation & Automotive Antenna (410-3800 MHz); 5.8/7dBi, White



Key Features

  • 5-in-1 High performance multi frequency 2G/3G/4G/LTE/5G antenna
  • 2x2 MIMO LTE, 2x2 MIMO Wi-Fi & GPS / GLONASS
  • Ultra-wideband, includes 450 MHz and 3.5 GHz CBRS bands
  • Robust and water-resistant antenna (IP69K)
  • Ideal for transportation and marine use
  • Multi mounting options for easy installation



Application Areas

  • Transport broadband and Wi-Fi distribution, automation and telemetry for buses, utility, trucks and public safety vehicles

  • Industrial factory automation, robotic machinery and other M2M systems telemetry

  • Farming & agricultural automation such as M2M & IoT

  • Broadband cellular to Wi-Fi distribution for marine / boats (inland and near coastal vessels)Mining vehicles and machinery communications, telemetry and automation (M2M & IoT)



Product Overview

  • The MIMO-3-15 is a 5-in-1 high performance multi frequency antenna within a single housing, providing two cellular, two Wi-Fi and a GPS/GLONASS antenna.
  • The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 617 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE.
  • The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications.
  • The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 GHz on each antenna with 2x2 MIMO capability.
  • The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40°C.
  • The MIMO-3-15 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna.
  • The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desiredelevation.
  • This is an important criterion for the transportation and marine market. which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.



Specifications / Frequency



Electrical Specifications

  • Frequency Range: 410-470MHz / 617-960MHz / 1427-1517MHz / 1710-2700MHz / 3400-3800MHz

  • Gain (max): 1dBi / 3.5dBi / 4dBi / 5.8dBi / 4.8dBi

  • Impedance: 50&Omega

  • VSWR: <2.5:1

  • Feed Power Handling: 10W

  • Vertical Beamwidth: See specification sheet

  • Polarisation: Vertical



Mechanical/Environmental Specifications



  • Construction: UV Stable ASA

  • Cable: 2m HDF195

  • Connectors: SMA Male

  • Weight: 1.36kg

  • Ingress Protection Rating: IP69

  • Operation Temperature: -40°C to 80°C

  • Humidity: Non-condensing 5-95%

  • Salt Spray: MIL-STD 810G/ ASTM B117
