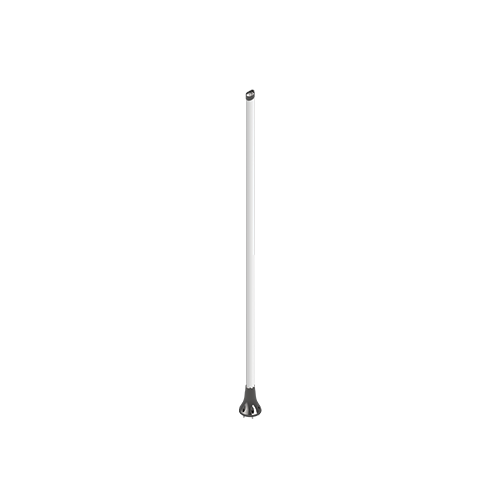

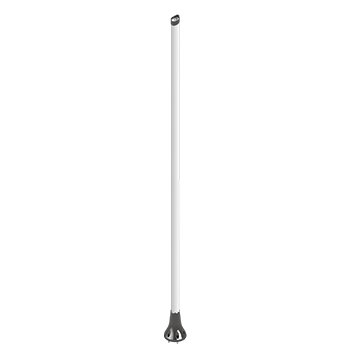

Poynting High Gain 8dBi Omni Directional 4x4 MuMiMo Antenna

Key Features

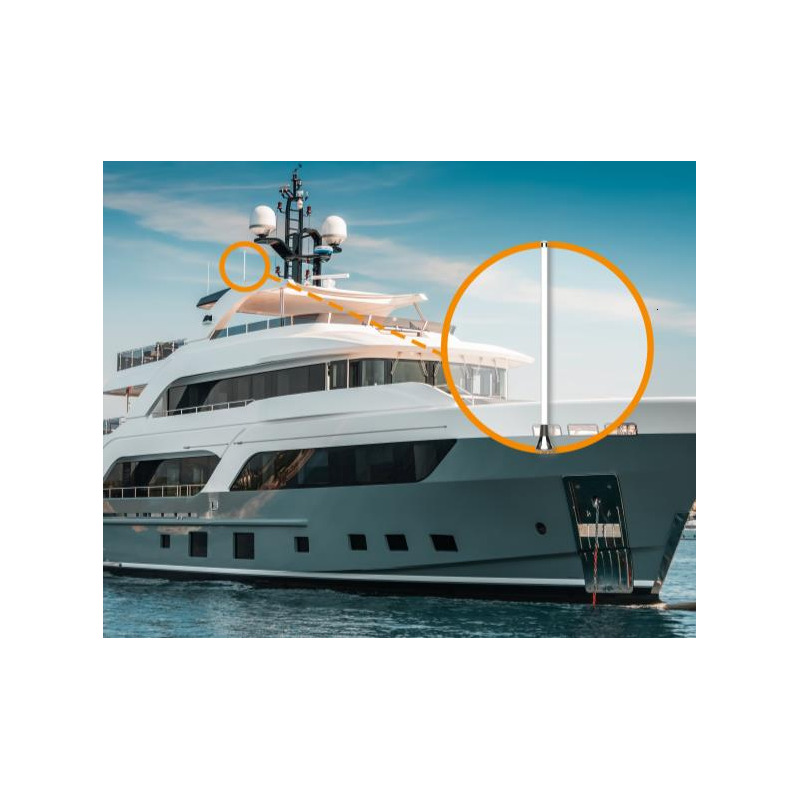

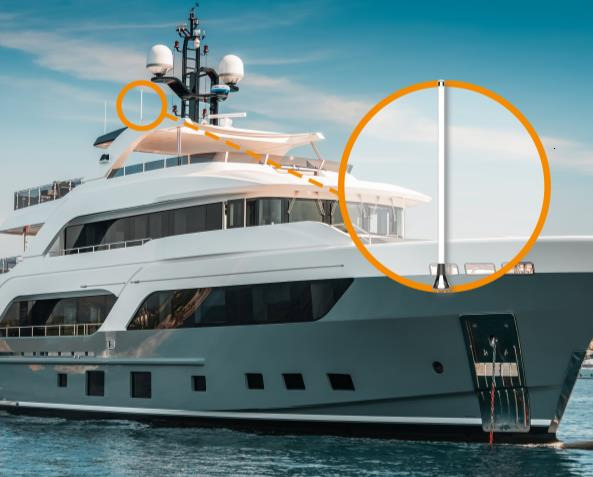

• High performance, omni-directional marine & coastal antenna

• 4x4 MIMO capability for improved performance

• Covers contemporary LTE/5G bands from 617 - 4200 MHz

• UV and saltwater protected for marine and coastal conditions

• Robust and all-weather proof for harsh conditions at sea (IP 68)

• Optional 316 stainless steel mounting bracket available

Usage

• The OMNI-914 is a high gain, ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with excellent balanced gain across all frequencies from 617 to 4200 MHz.

• The OMNI-914 antenna offers 4×4 MIMO capability from its vertically separated radiating elements, all in the same single radome.

• The OMNI-914 antenna design combines four high gain omni-directional antennas, which allows for superior pattern control over the entire frequency range. This unique combination makes the OMNI-914 a true omni-directional 4×4 MIMO antenna, suitable for marine and coastal applications.

  The OMNI-914 antenna comes with an IP68 protection rating against dust and water ingress, making it ideal for most severe storms at sea.

• The radome is also fully salt water protected so that it can be used in highly corrosive environments, thanks to the fiberglass radome material.

• The OMNI-914 guarantees signal reception almost everywhere and is usable in all part of the world.

• The ultra-wideband performance makes the antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 4200 MHz for inland use.

Specifications / Frequency

Network Compatibility Yes/No Gain Telstra 4GX (700MHz) 6dBi Optus 4G+ (700MHz) 6dBi Telstra Next-G™ (850MHz) 6dBi Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map 6dBi Optus Regional 3G (900MHz)* *Please check Optus Coverage Map. 6dBi Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map. 6dBi Telstra/Optus/Voda 4G (1800MHz) 8dBi All Carriers - Urban/Metro 3G (2100MHz) 8dBi Optus 4G TDD (2300MHz) 8dBi Telstra 4GX (2600MHz) 8dBi All Networks 5G (3500MHz) 5.5dBi

Electrical Specifications

• Frequency Range: 617-960MHz / 1427-1517MHz / 1710-2700 / 3400-4200MHz

• Input Impedance: 50Ω

• VSWR: <2.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Maximum Power: 10Watts

Mechanical/Environmental

• Construction: Fiberglass with 316 Stainless Steel Caps

• Mounting: Wall/Pole Mount Bracket

• Cable: Nil - Integrated Connector

• Connectors: N Female

• Dimensions: 2550 mm x Ø180 mm

• Weight: 9.4kg

• Wind Survival: <190km/h

• Tempreature Range: -40°C to +80°C

• Water Ingress Protection Ratio/Standard: IP 68

• Salt Spray: MIL-STD 810G/ASTM B117

• Operating Relative Humidity: Up to 98%

• Enclosure Flammability Rating: UL 94-HB

• Impact Resistance: IK 10

• Product Safety & Environmental: Complies with CE and RoHS standards

A heads up!

• This product is over 1200mm long and can only be delivered by courier and not Australia Post - please leave an appropriate address for a signatory.
