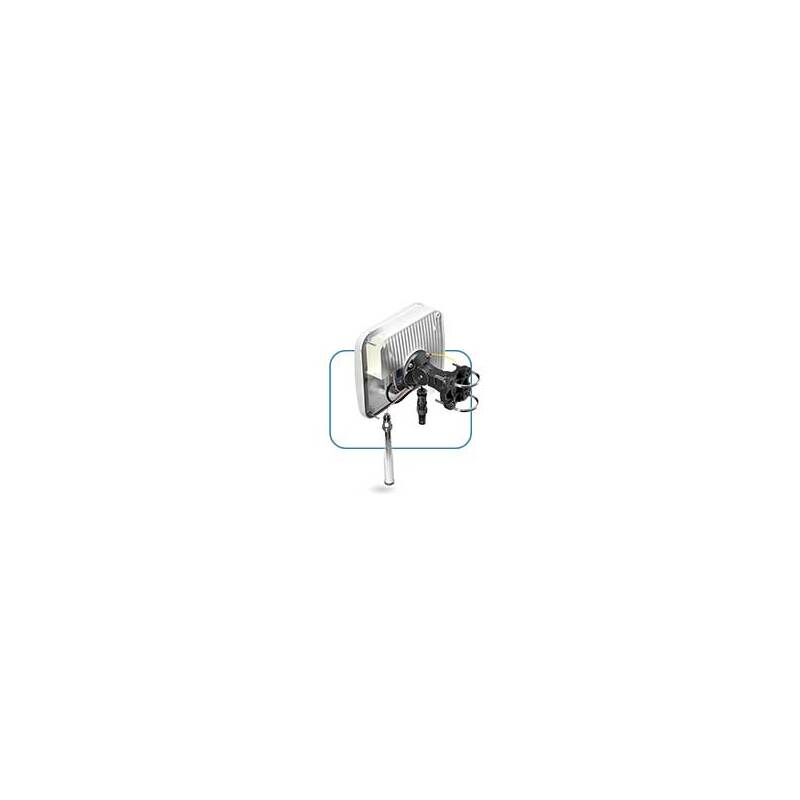

QuMax for RUT240/230/241 INTEGRATED OUTDOOR MULTI BAND HIGH POWER LTE DIRECTIONAL ANTENNA + OUTDOOR WI-FI OMNI ANTENNA + PLACE TO INSTALL TELTONIKA

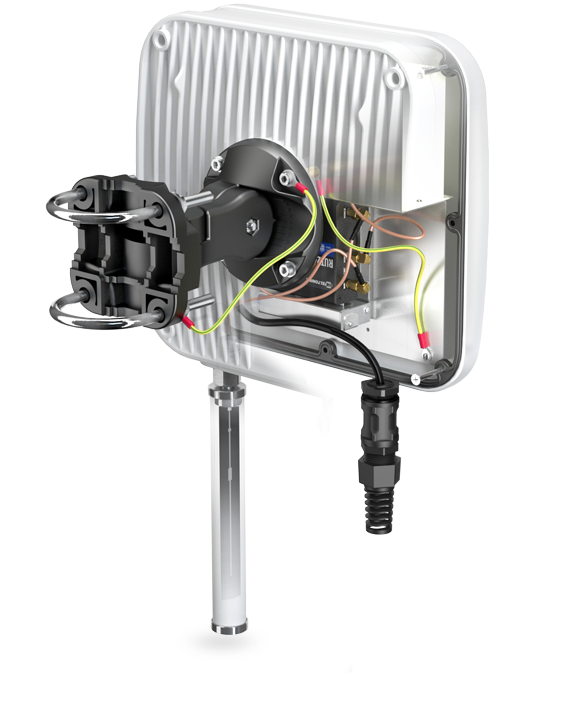

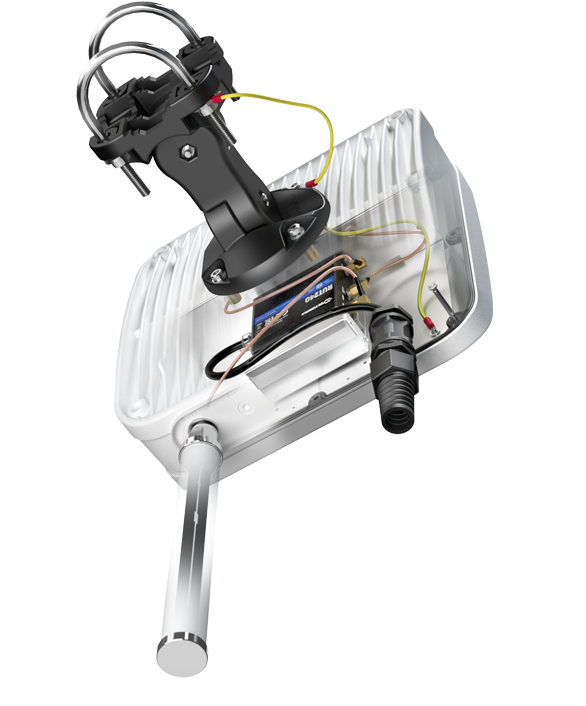

RUT240 OR RUT230 or RUT241 (ALL-IN-ONE) QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT240 or RUT23 0or RUT241 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas. NOTE: For RUT230 one LTE antenna is unplugged.

RUT240 / RUT230 / RUT241 sold separately, just add to your cart.

LTE SPECIFICATION


FREQUENCY: 0.694-0.96 GHz, 1.7 - 2.2 GHz, 2.2 - 2.7 GHz
GAIN: 4 dBi, 5 dBi, 6 dBi
VSWR: <1.50, max <2.00, <1.30, max <1.60, <1.30, max <1.60
BEAMWIDTH: 90°/90° +/- 30°, 90°/90° +/- 30°, 90°/90° +/- 30°
POLARIZATION: Vertical
IMPEDANCE: 50 Ω

WI-FI SPECIFICATION
F

(A240M)

SKU A240M
Model # QuMAX A240M
Brand QuMax
Shipping Weight 2.7000kg
Shipping Width 0.290m
Shipping Height 0.120m
Shipping Length 0.440m
Shipping Cubic 0.015312000m3
