QuMax for Teltonika RUT360

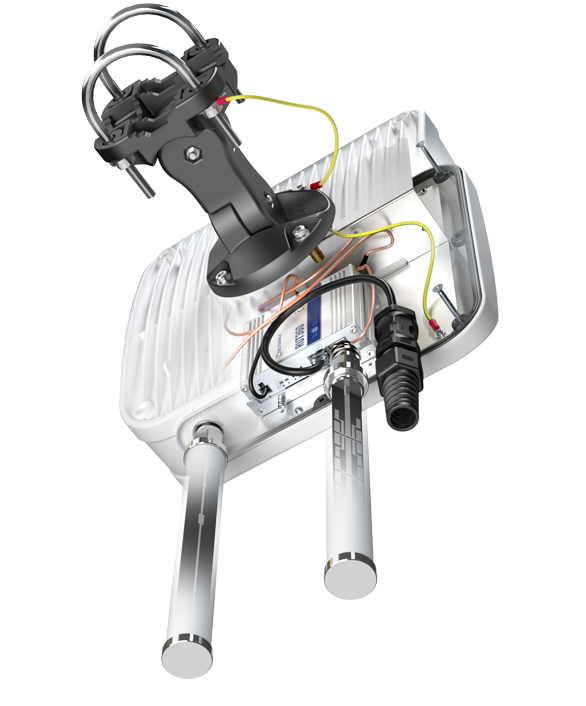

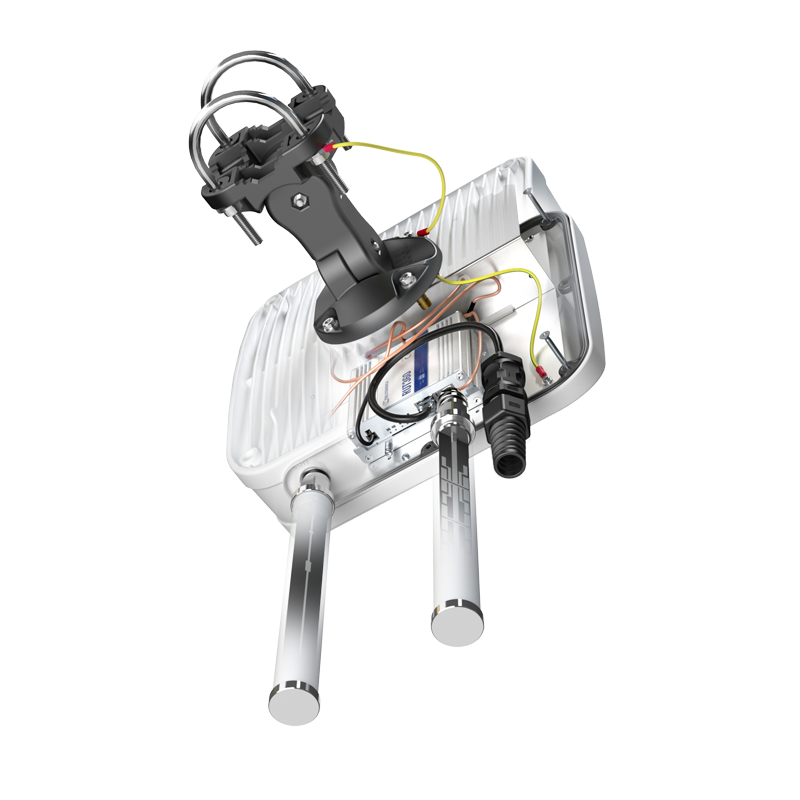

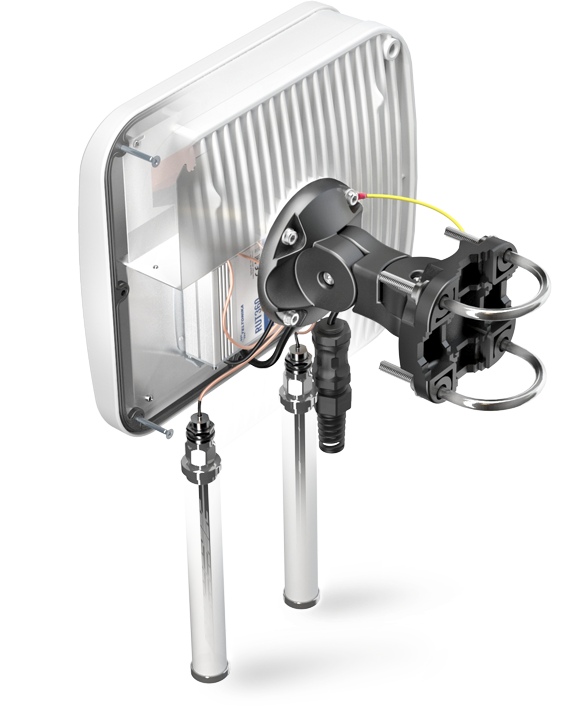

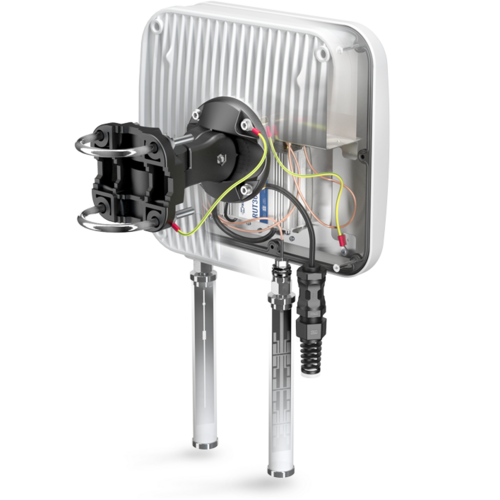

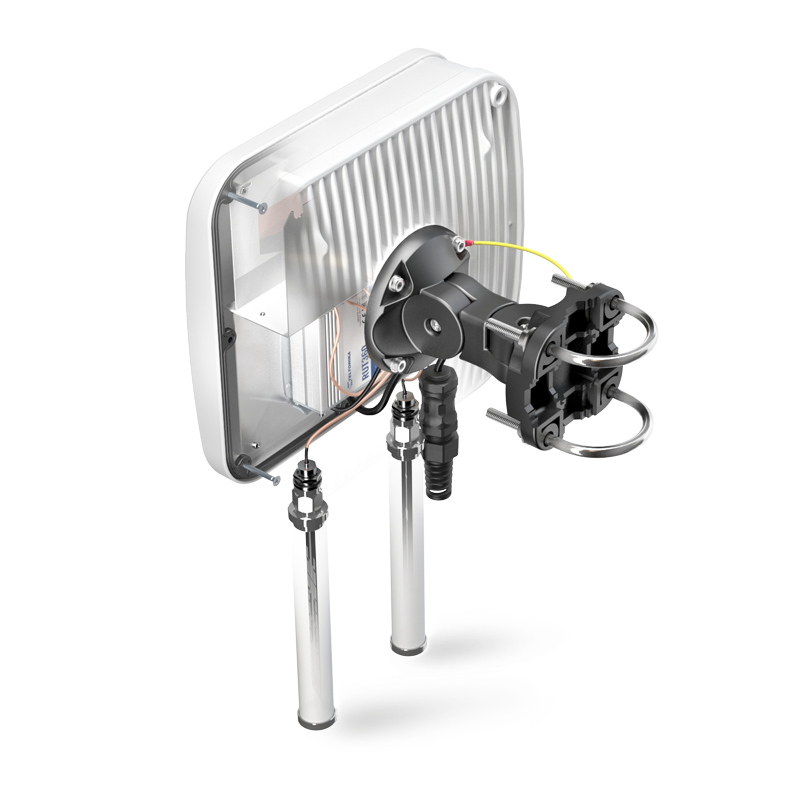

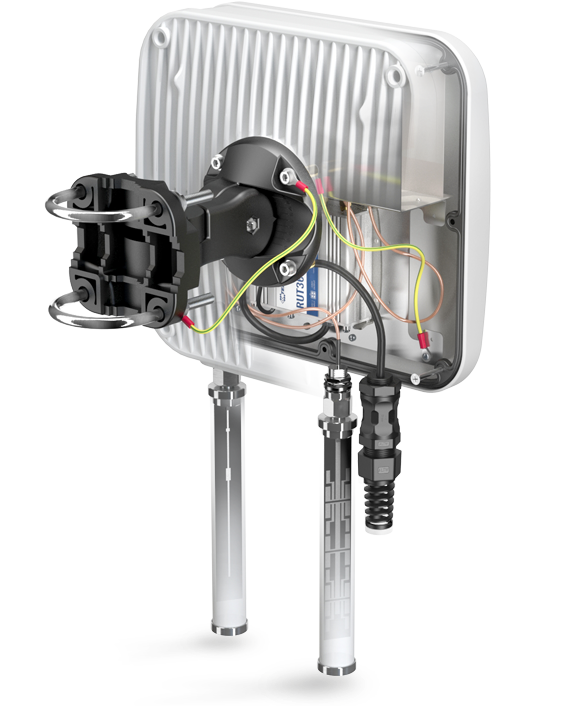

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT360 (All-in-one)

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT360 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.

RUT-360 sold separately, just add to your cart.



LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain 0.694 - 0.96 GHz : 4 dBi
1.7 - 2.2 GHz : 5 dBi
2.2 - 2.7 GHz : 6 dBi
Front-to-Back >8 dB
VSWR <1.30, max <1.80
Beamwidth 90°/90° ±30°
Polarization Vertical
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
Gain 6 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45 + 2xNf + 2xNm in external omni wi-fi antenna
Ingress protection IP67
Dimensions 272 x 276 x 96 mm
10.71 x 10.87 x 3.78 inch
Weight 1.8 kg
3.97 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F






(A360M)

SKU A360M
Brand QuMax
Shipping Weight 5.0000kg
Shipping Width 0.400m
Shipping Height 0.150m
Shipping Length 0.400m
Shipping Cubic 0.024000000m3
