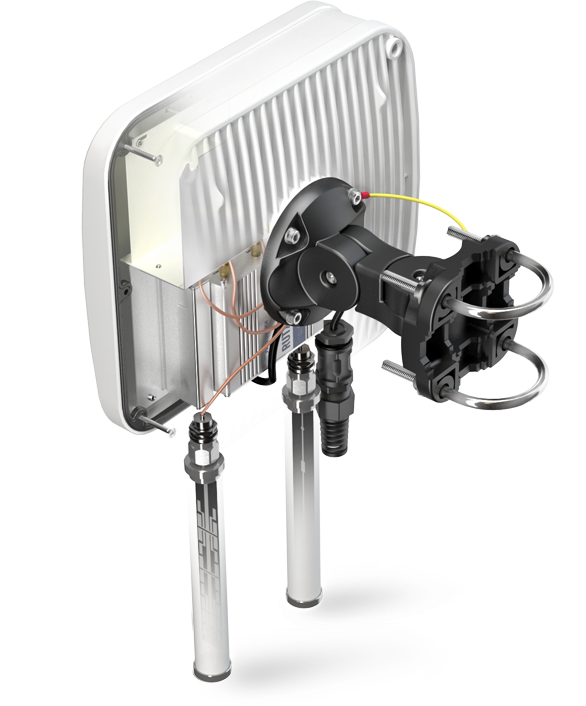

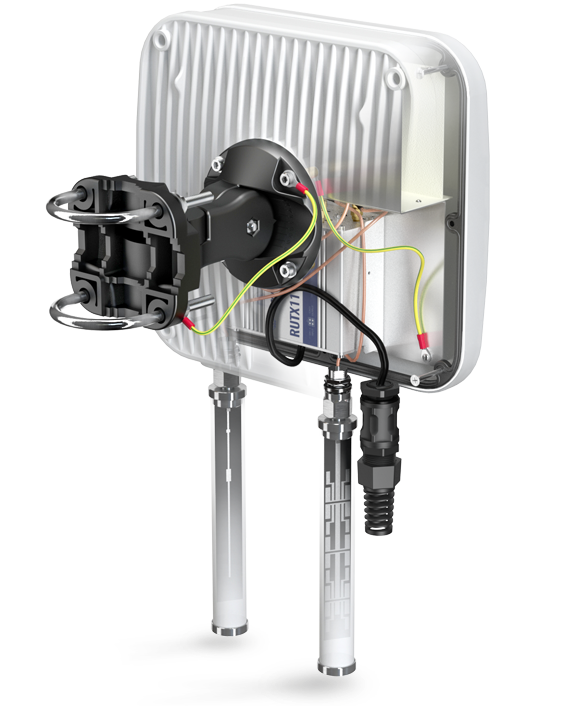

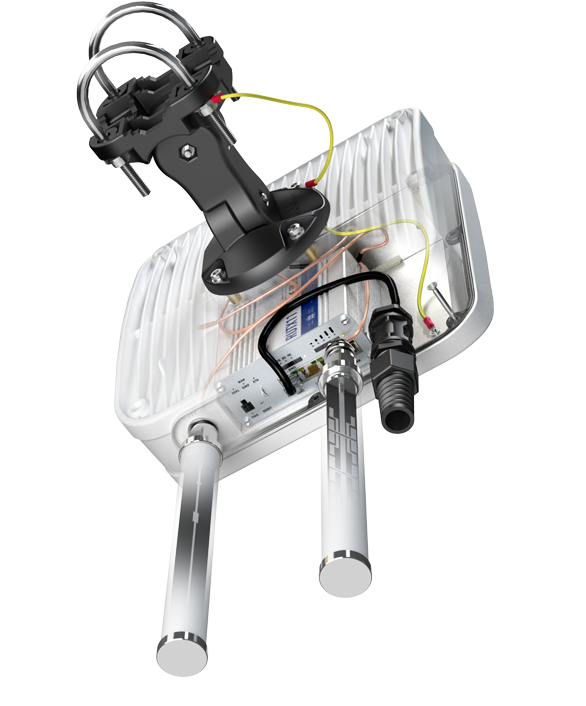

QuMax for Teltonika RUTX11



Integrated outdoor LTE high power directional antenna + outdoor Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth antenna + GPS antenna + place to install Teltonika RUTX11 (All-in-one)

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It also has embedded GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 & 5 GHz omni antennas.

RUT-X11 sold separately, just add to your cart.

LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain 0.694 - 0.96 GHz : 4 dBi
1.7 - 2.2 GHz : 5 dBi
2.2 - 2.7 GHz : 6 dBi
Front-to-Back >8 dB
VSWR <1.30, max <1.80
Beamwidth 90°/90° ±30°
Polarization Vertical
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
4.70 - 6.00 GHz
Gain 2.40 - 2.50 GHz : 6 dBi
4.70 - 6.00 GHz : 7 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
BLUETOOTH ANTENNA SPECIFICATION
Frequency 2.30 - 2.60 GHz
Gain 3 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45 + 2xNf + 2xNm in external omni wi-fi antenna
Ingress protection IP67
Dimensions 272 x 276 x 96 mm
10.71 x 10.87 x 3.78 inch
Weight 1.8 kg
3.97 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F



(QuMaxX11)

SKU QuMaxX11
Model # AX11M
Shipping Weight 5.0000kg
Shipping Width 0.400m
Shipping Height 0.180m
Shipping Length 0.400m
Shipping Cubic 0.028800000m3
