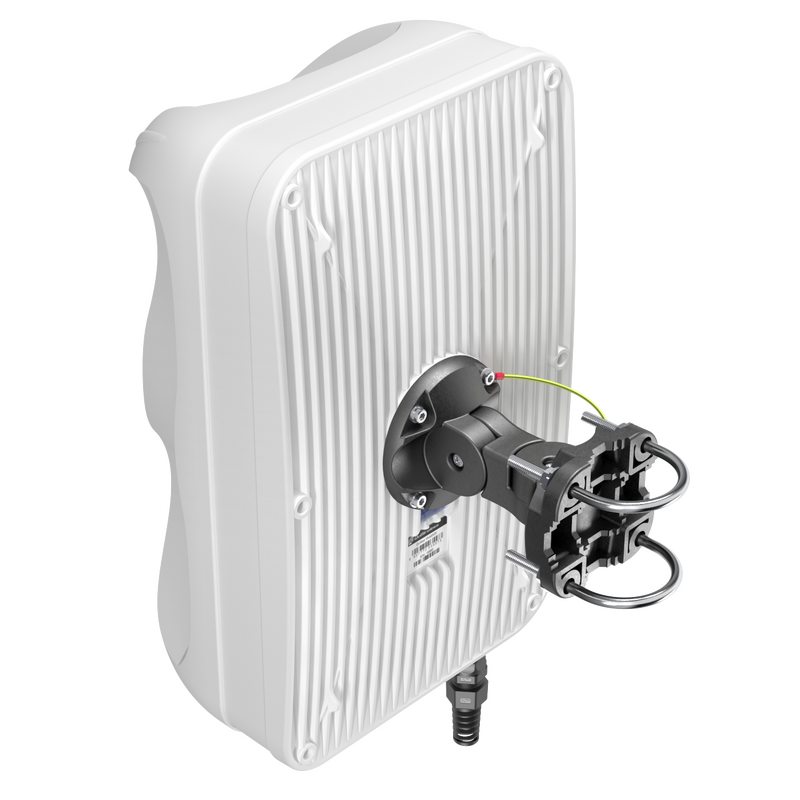

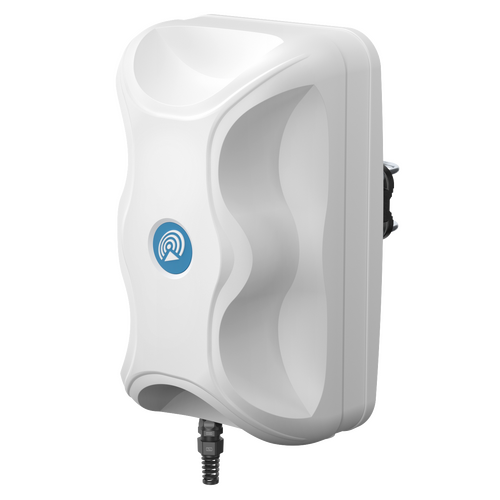

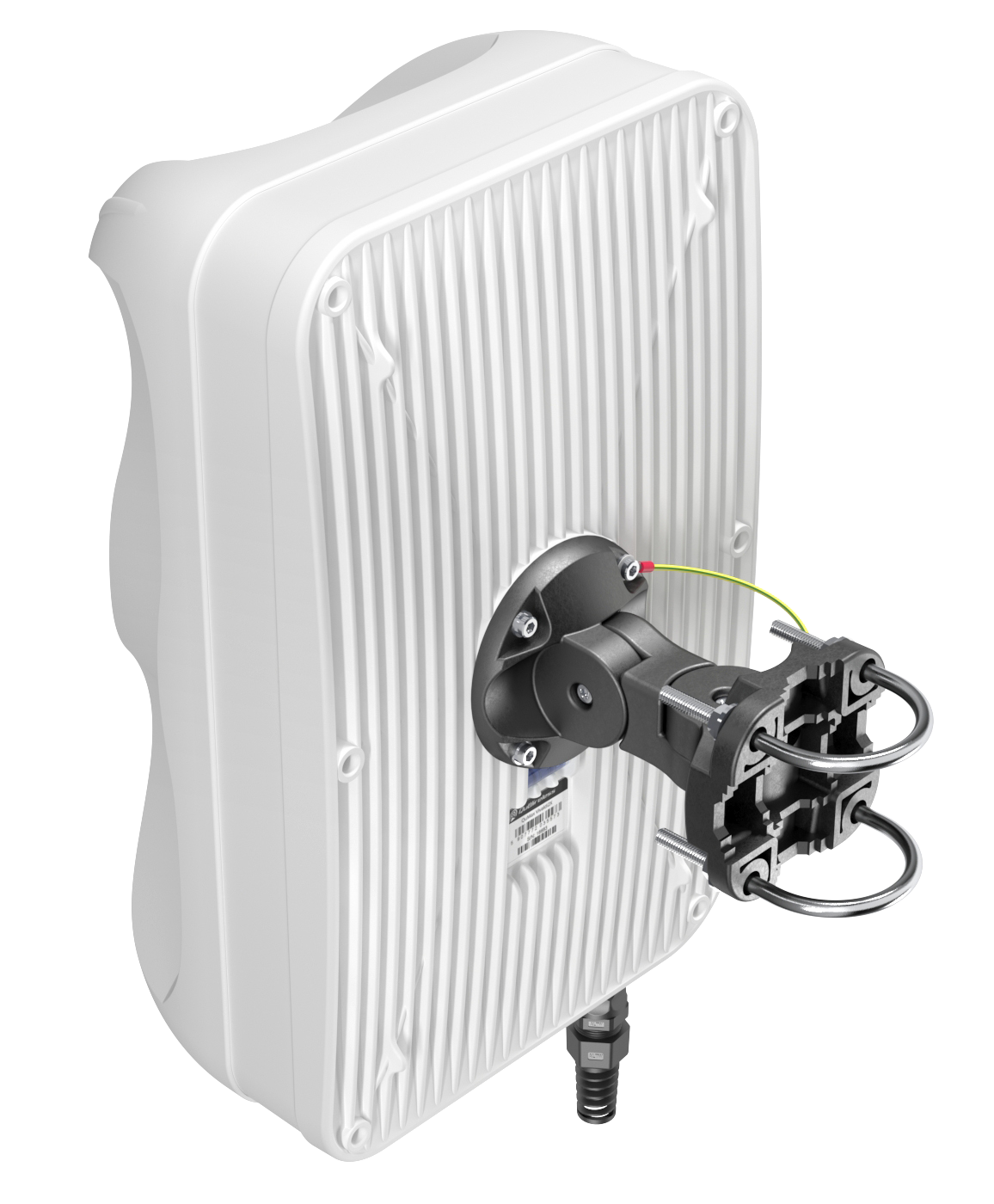

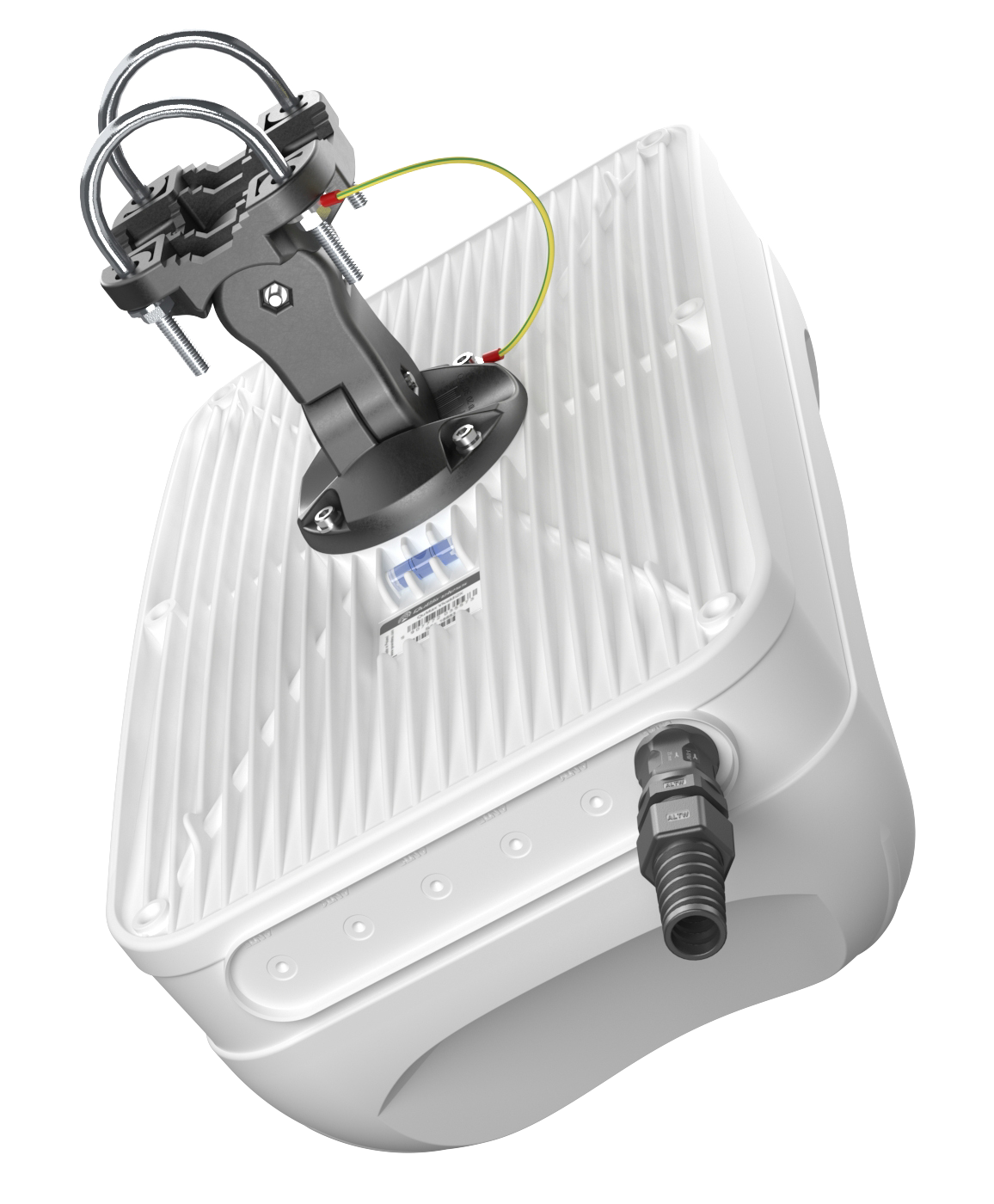

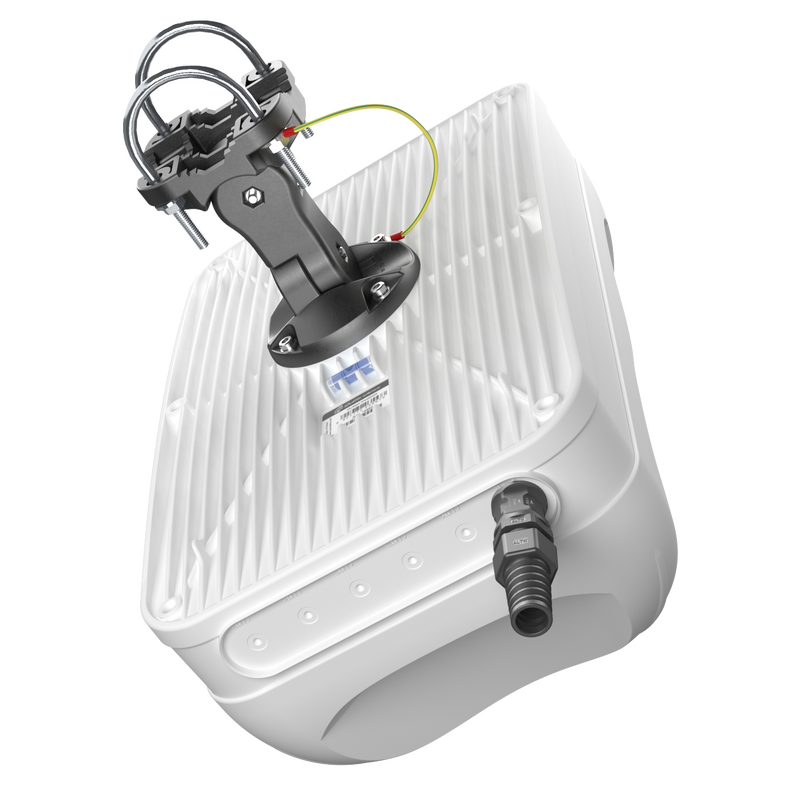

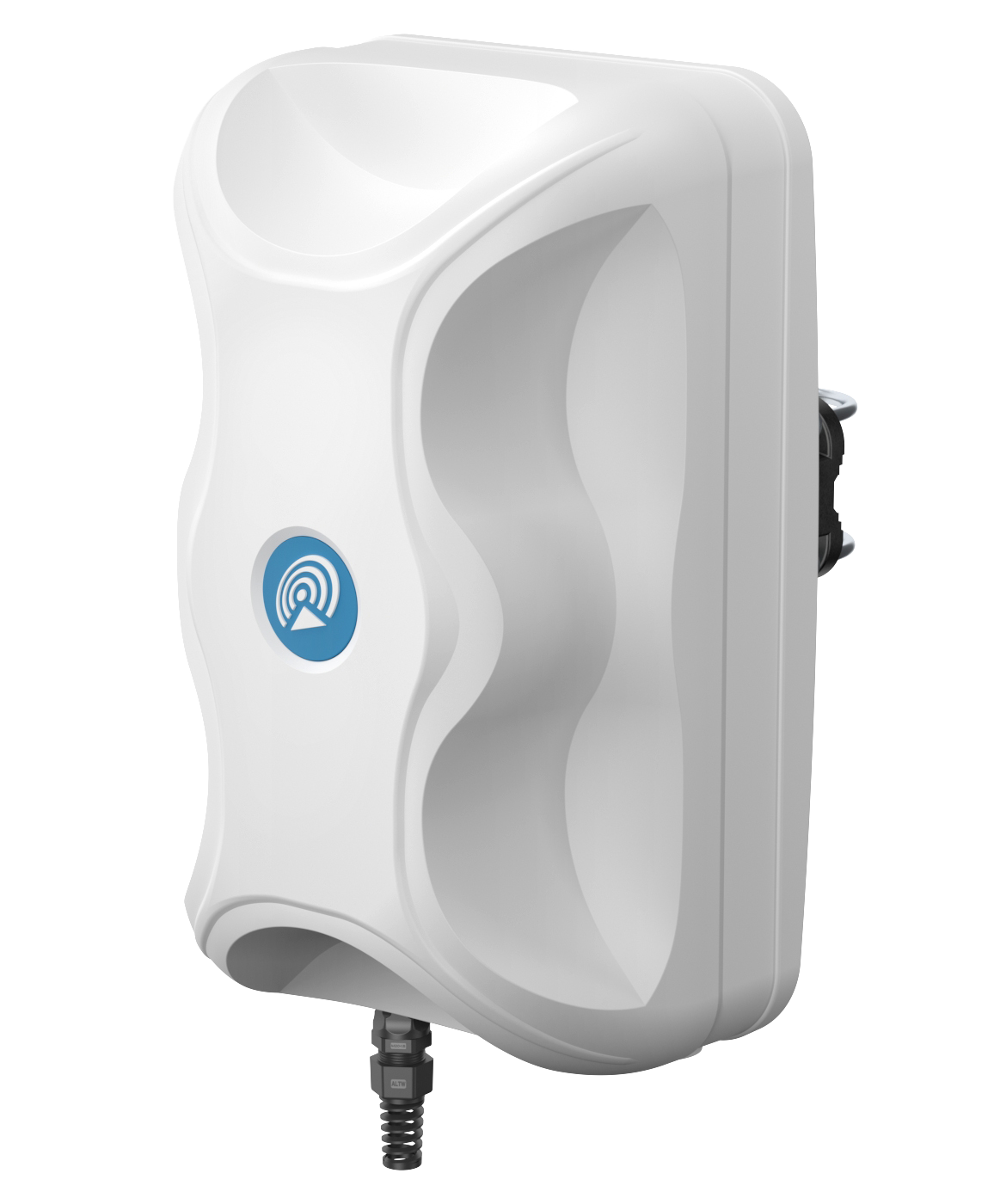

QuMax for Teltonika RUTX50

INTEGRATED MULTI-BAND LTE & 5G PANEL ANTENNA + WI-FI OMNI ANTENNA + GPS + PLACE TO INSTALL TELTONIKA RUTX50 (ALL-IN-ONE)

  • QuMax for RUTX50 is a high-performance directional antenna designed for use in a variety of wireless communication applications.

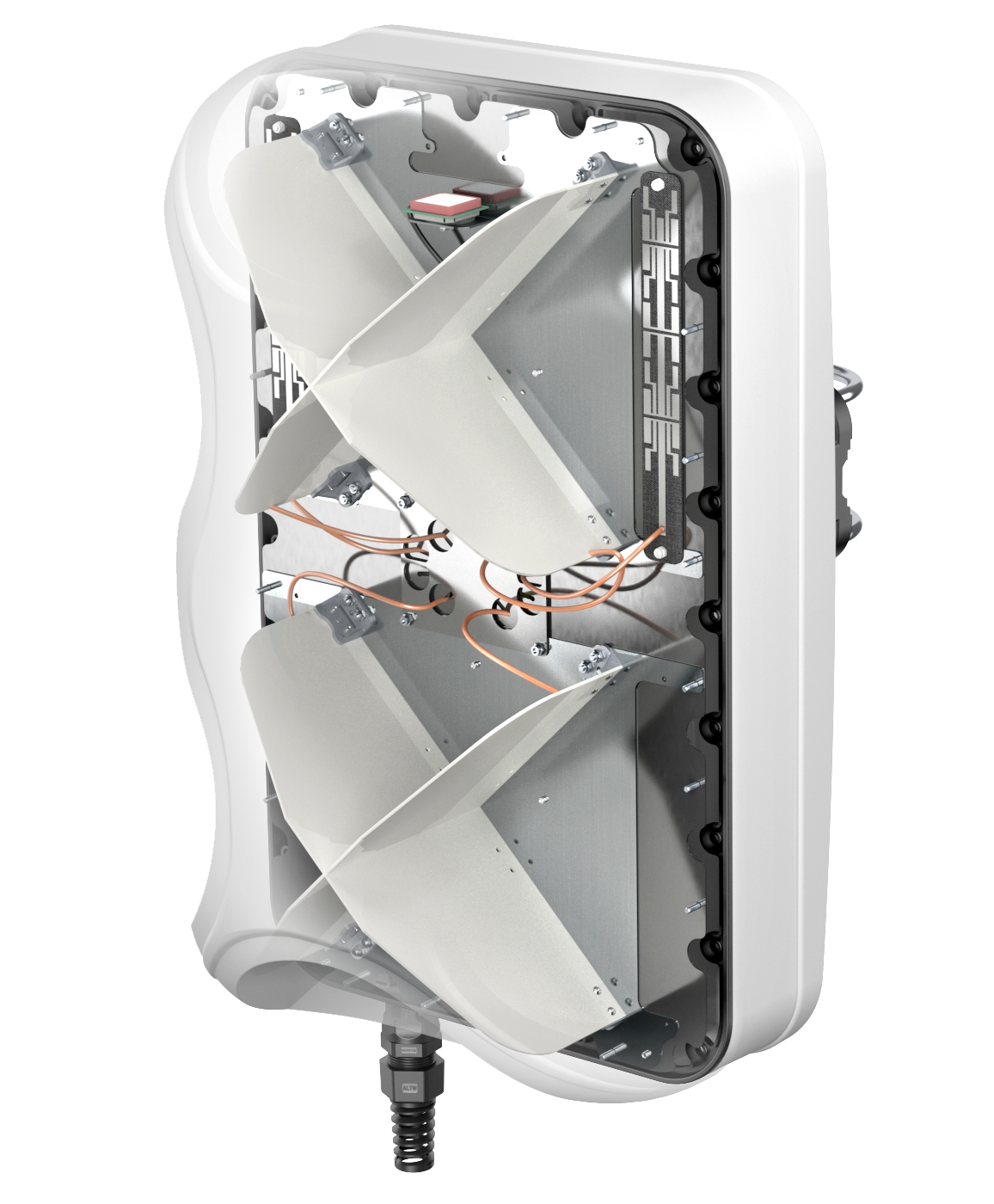

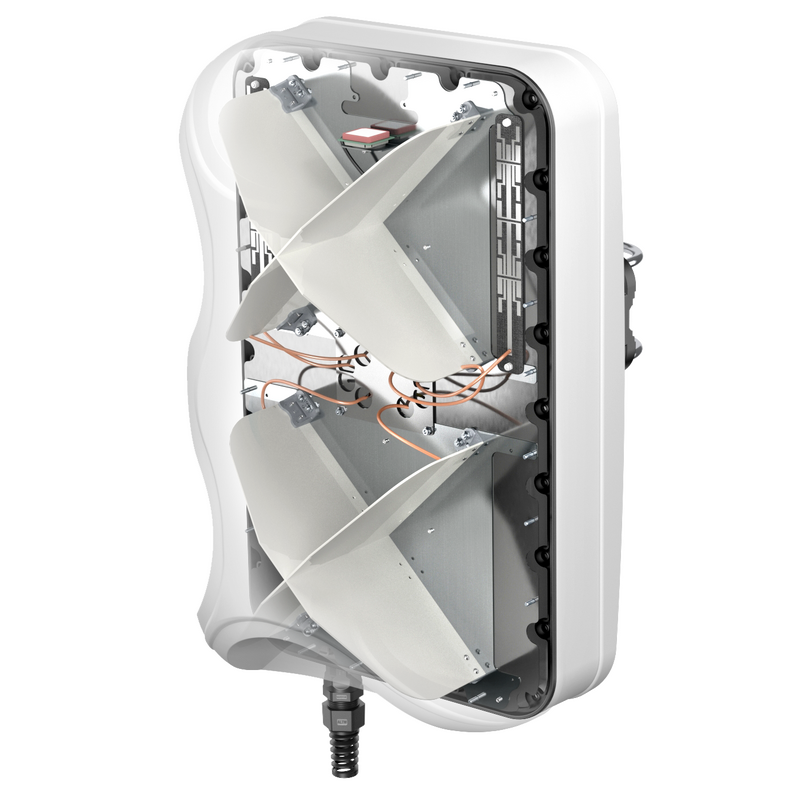

  • This all-in one product consists of multi-band 5G, Wi-Fi and GPS antennas integrated in IP67 enclosure.
  • It offers 7.5dBi gain and wide beamwidth, which makes it suitable for use in both urban and rural environments.
  • Combining QuMax with RUTX50 inside the antenna housing gives you complete, outdoor solution with mulitple use scenatios, such as transportation, public, energy, mining, IoT and more.
LTE & 5G ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.7 GHz
3.3 - 6 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n79, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101
Gain

0.617 - 0.960 GHz: 6 dBi

1.7 - 2.7 GHz: 7 dBi

3.3 – 4.6 GHz: 7 dBi

4.7 – 6.0 GHz: 5.5 dBi

VSWR <2.00, max <3.00
Beamwidth 80°/80° ±15°
Polarization X (±45°)
Impedance 50 Ω
LTE & 5G ANTENNA SPECIFICATION
Frequency

2.40 - 2.50 GHz

5.0 - 7.125 GHz

Gain

2.40 - 2.50 GHz: 6 dBi

5.0 - 7.125 GHz: 7.5 dBi

VSWR <1.70, max <2.00
Beamwidth 360°/25° +/- 5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45
Ingress protection IP67
Dimensions 486.0 x 292.2 x 210 mm
Weight 2.8 kg
Operating temperature From -40°C to 75°C

Specifcation Sheet

(AX50M)

SKU AX50M
Brand QuMax
Shipping Weight 4.0000kg
Shipping Width 0.400m
Shipping Height 0.250m
Shipping Length 0.400m
Shipping Cubic 0.040000000m3
