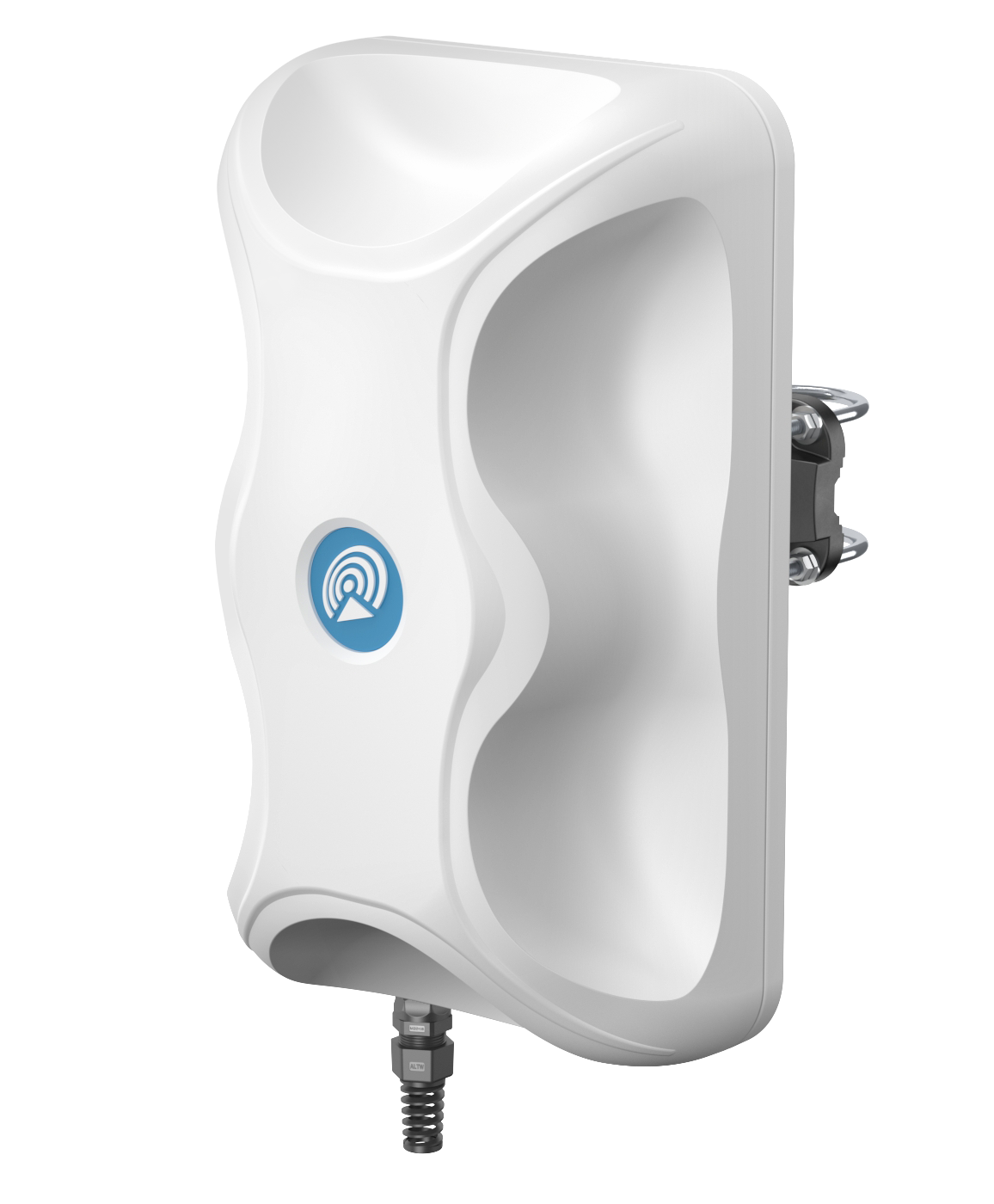

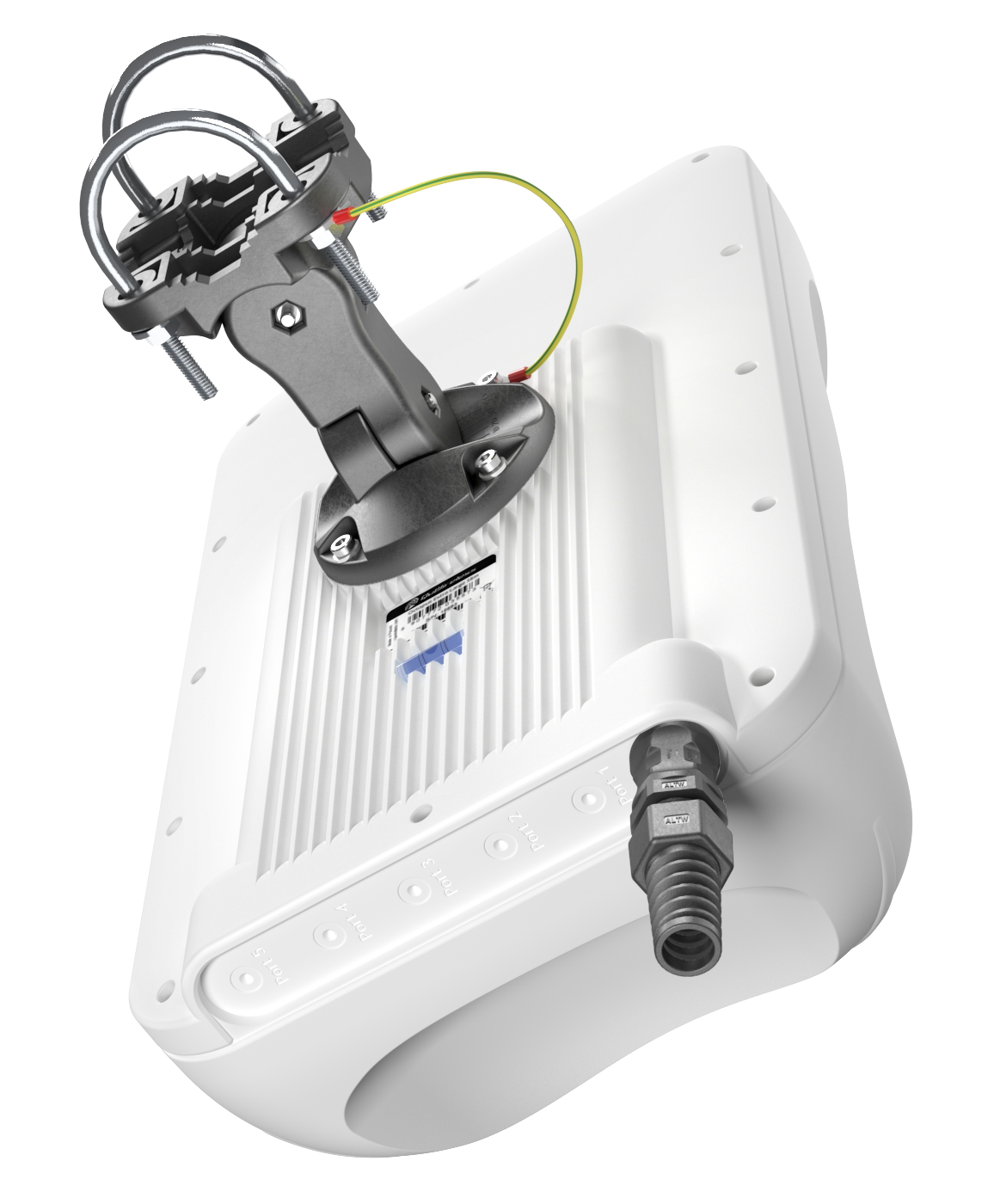

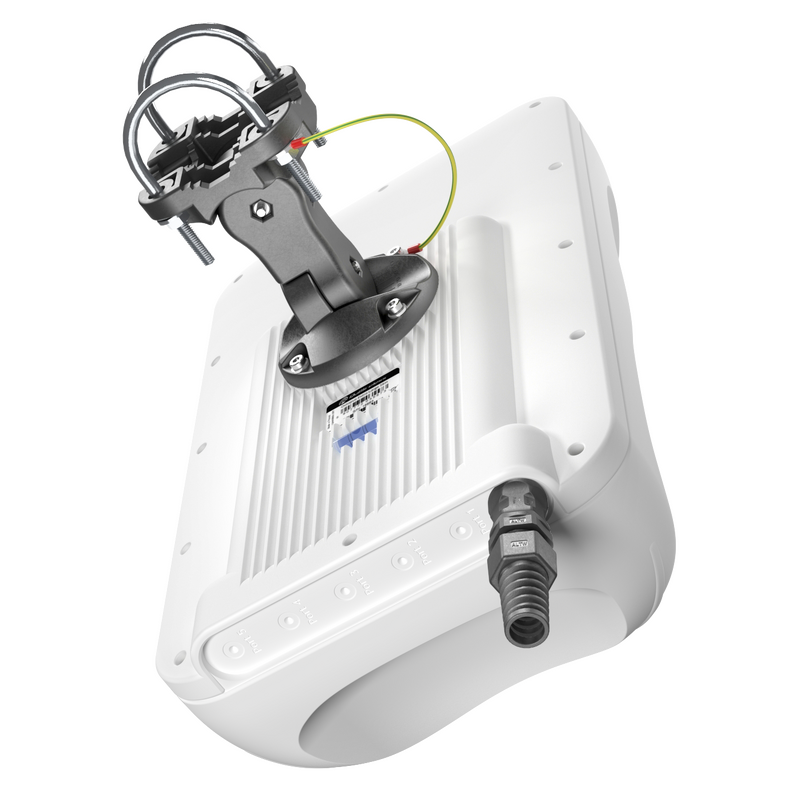

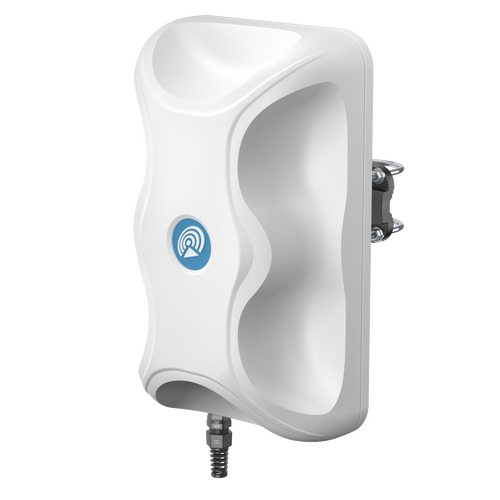

QuMax Outdoor Directional Antenna for Teltonika TRB500



INTEGRATED MULTI-BAND LTE & 5G PANEL ANTENNA + PoE SPLITTER + PLACE TO INSTALL TELTONIKA TRB500 (ALL-IN-ONE)



  • QuMax for TRB500 is a high performance directional antenna designed for use in a variety of wireless communication applications.

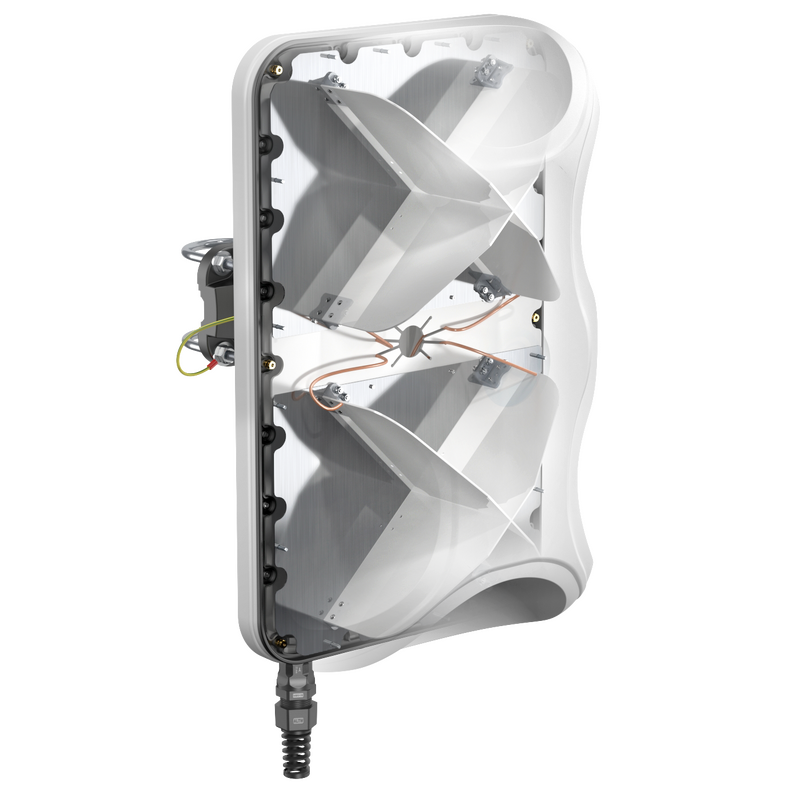

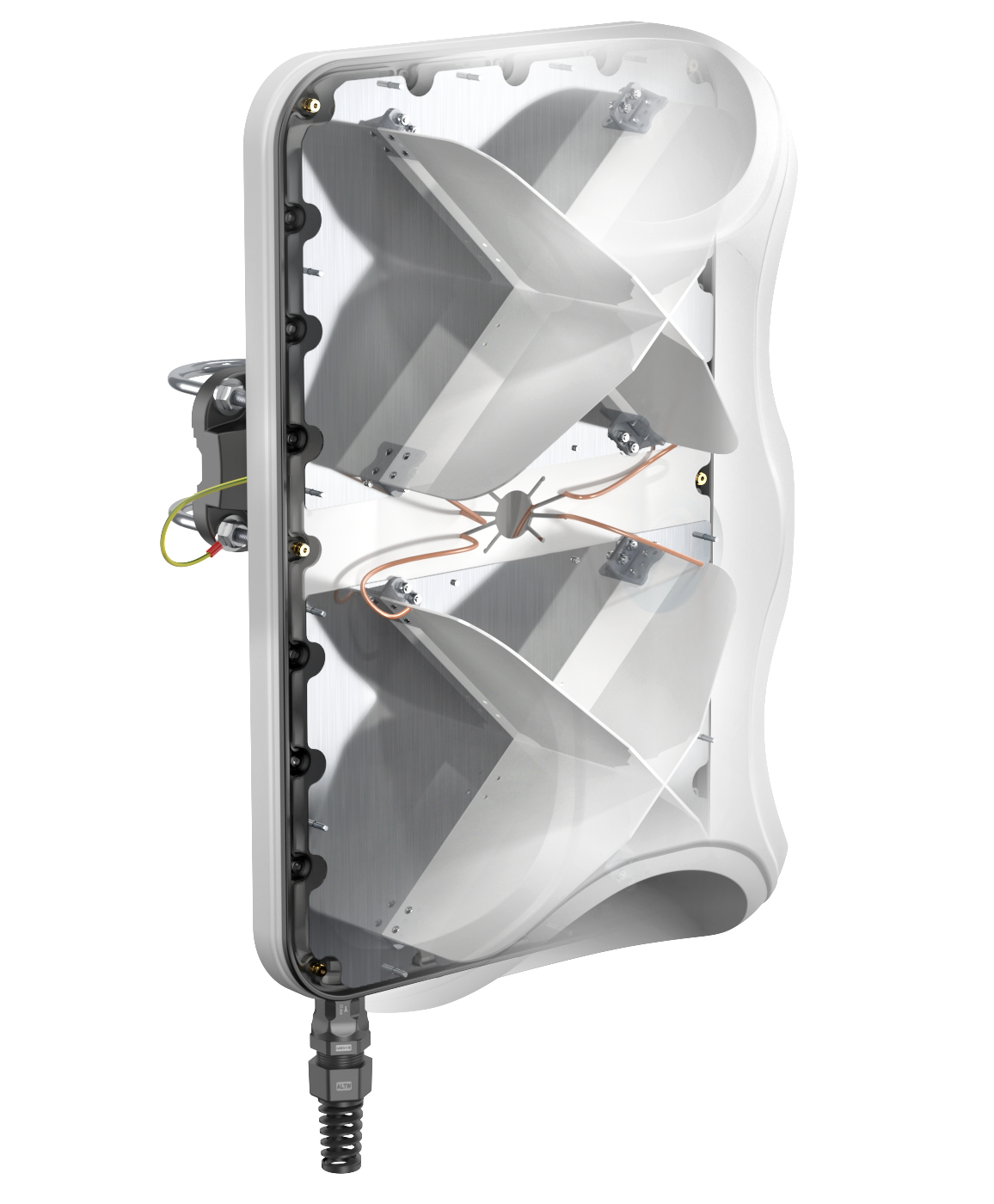

  • This all-in-one product consists of multi-band 5G antennas and PoE splitter integrated in IP67 enclosure.

  • It offers 7.5 dBi gain and wide beamwidth, which makes it suitable for use in both urban and rural environments.

  • The set contains a PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

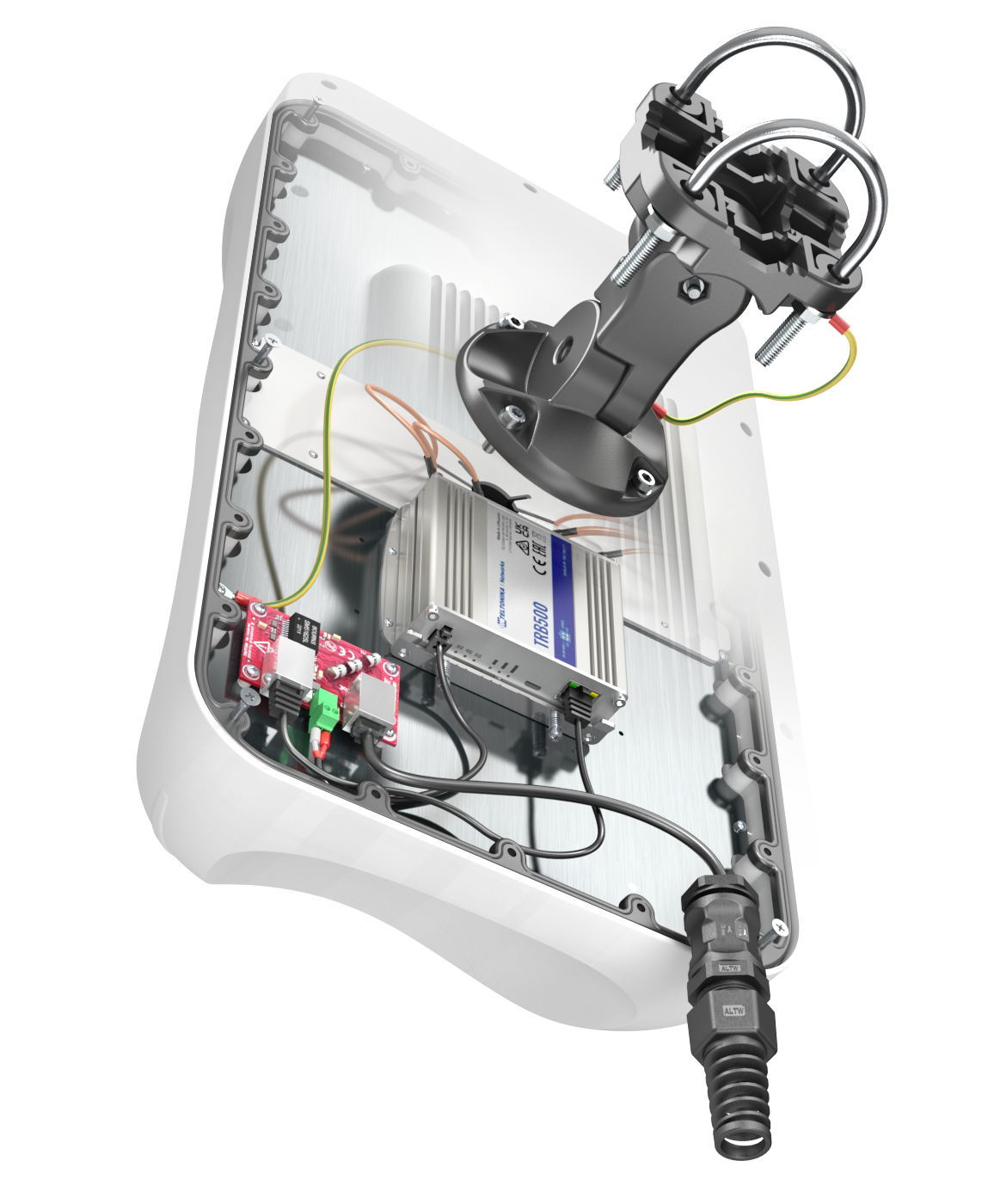

  • Combining QuMax with TRB500 inside the antenna housing gives you complete outdoor solution with mulitple use scenarios such as transportation public, energy, mining IoT and more.

LTE & 5G ANTENNA SPECIFICATION
Frequency

0.617 - 0.96 GHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz
Supported LTE/5G bands


1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain

0.617 - 0.96 GHz: 6 dBi

1.7 - 2.7 GHz: 7 dBi

3.3 - 4.6 GHz: 7 dBi

4.7 - 6.0 GHz: 5.5 dBi
VSWR <2.00, max <3.00
Beamwidth 80°/80° ±15°
Polarization X (±45°)
Impedance 50 Ω

Specifcation Sheet

(A500M)

SKU A500M
Brand QuMax
Shipping Weight 4.0000kg
Shipping Width 0.400m
Shipping Height 0.250m
Shipping Length 0.400m
Shipping Cubic 0.040000000m3
