QuMax XR All In
Integrated outdoor multi band LTE directional Antenna
SKU: XRAllIn
$330.00
In Stock
Please call us to place an order.
Integrated outdoor multi band eXtra Range LTE directional antenna + Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth antenna + GPS antenna + place to install Teltonika Teltonika RUT240/950/955/X09/X11 (All-in-one)

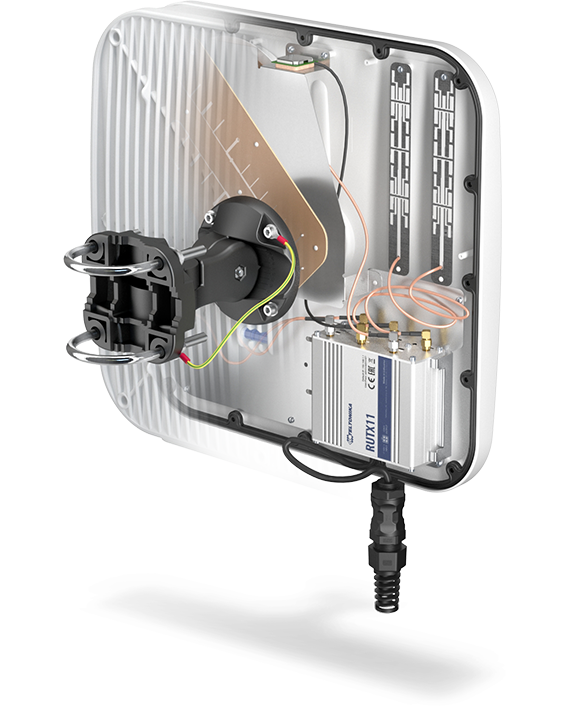

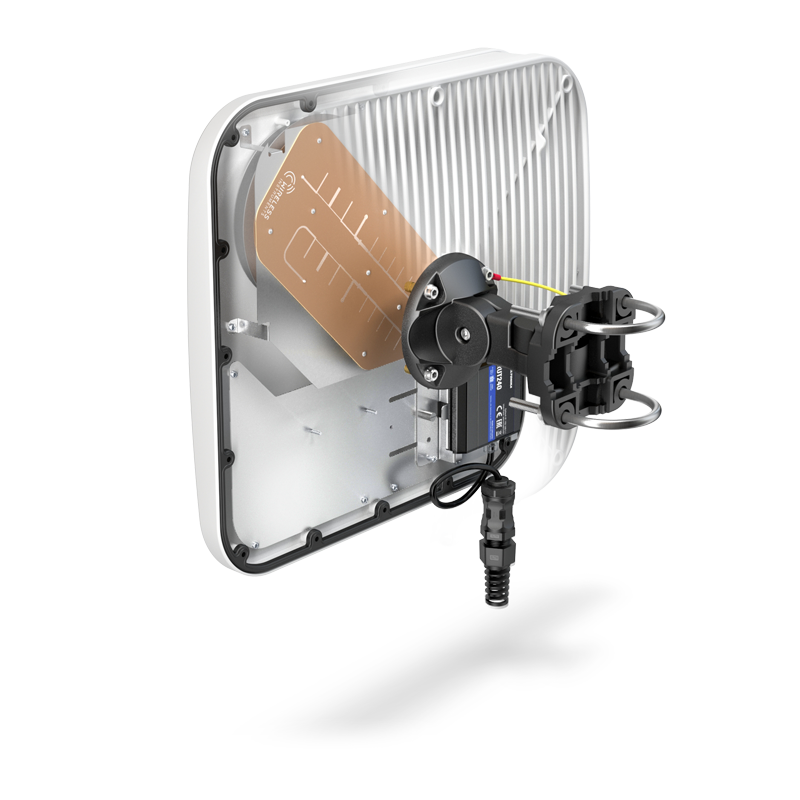

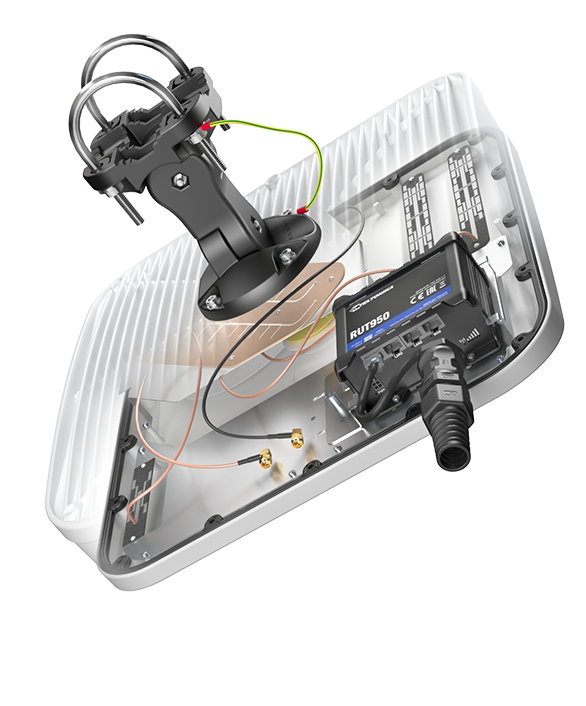

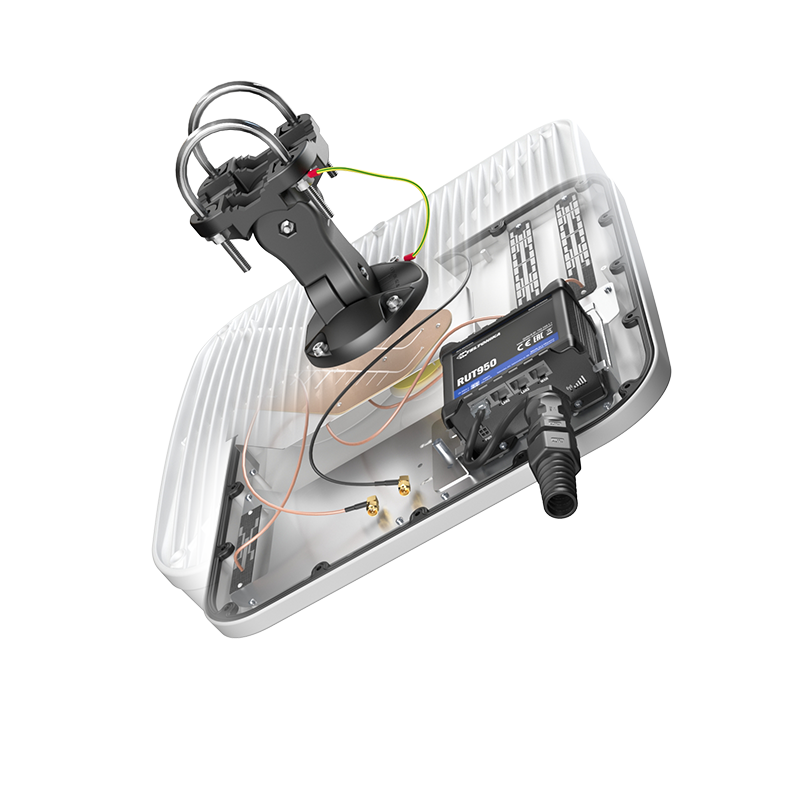

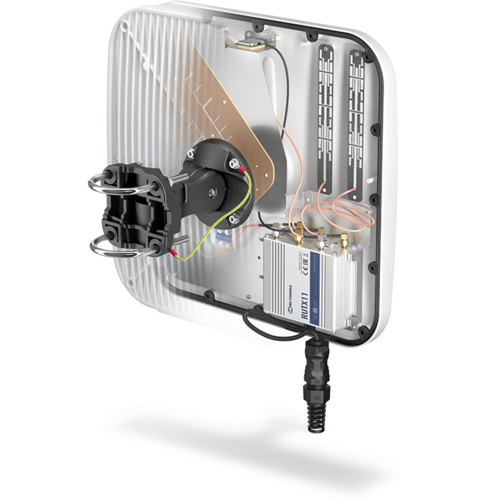

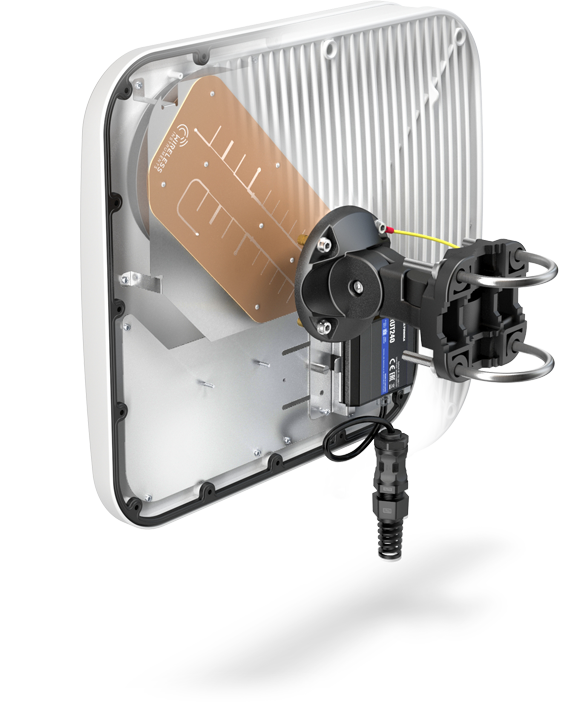

QuMAX eXtra Range All In offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. It is designed to have Teltonika RUT240/950/955/X09/X11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure.
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95 |
| Gain | 0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7 dBi |
| Front-to-Back | >10 dB |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 70°/70° ±15° |
| Polarization | Dual polarized X-Pol |
| Impedance | 50 Ω |
| WI-FI ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.40 - 2.50 GHz 4.70 - 6.00 GHz |
| Gain | 2.40 - 2.50 GHz : 6 dBi 4.70 - 6.00 GHz : 7 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| BLUETOOTH ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.30 - 2.60 GHz |
| Gain | 3 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Connector type | RJ45 |
| Ingress protection | IP67 |
| Dimensions | 392 x 392 x 99 mm 15.43 x 15.43 x 3.90 inch |
| Weight | 3.7 kg 8.16 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
