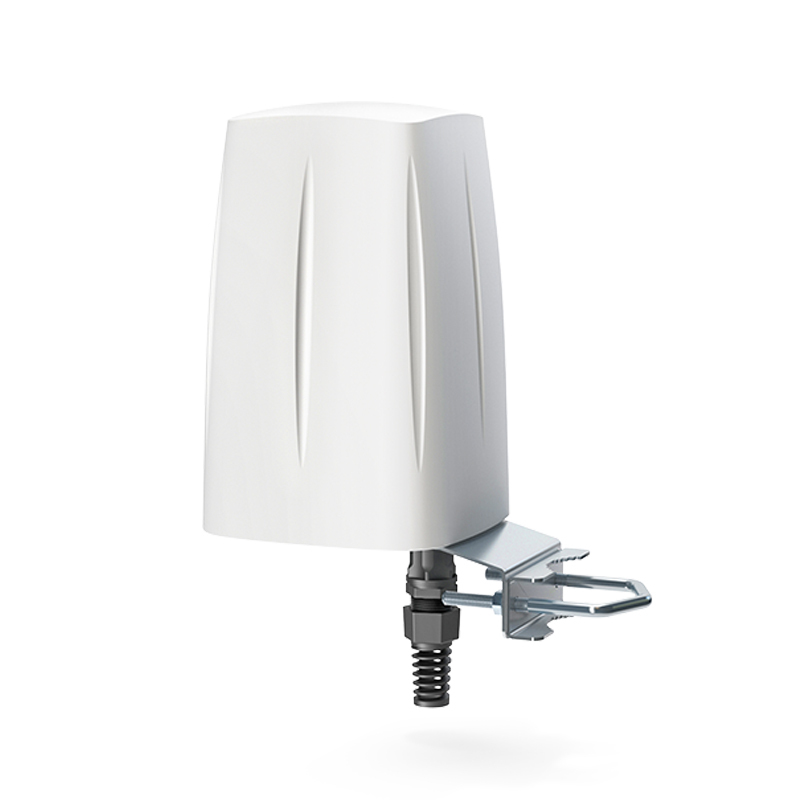

Quspot For Rut360 Integrated Multi-Band Lte Omni Antennas + Wifi Omni Antennas + Place to the Install Teltonika Rut360 (All-In-One)



QuSpot omni LTE antenna for Teltonika RUT360 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc.
It has embedded also omni Wi-Fi antennas.
If you use RUT360 with QuSpot antenna,you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

RUT360 sold separately, just add to your cart.

LTE ANTENNA SPECIFICATION
Frequency

0.694-0.96 GHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE Bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain

0.694 - 0.96 GHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.2 - 2.7 GHz : 4 dBi

VSWR <1.6, max <2.0
Beamwidth 360°/35° ±5°
Polarization Vertical
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
5.0 - 7.125 GHz
Gain 2.40 - 2.50 GHz : 6 dBi
5.0 - 7.125 GHz : 7.5 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45 + 2xNf + 2xNm in external omni wi-fi antenna
Ingress protection IP67
Dimensions 240 x 160 x 160 mm
Weight 1.5 kg
Operating temperature From -40°C to 75°C

Specification Sheet

(A360S)

SKU A360S
Model # AX11M
Shipping Weight 5.0000kg
Shipping Width 0.400m
Shipping Height 0.180m
Shipping Length 0.400m
Shipping Cubic 0.028800000m3
