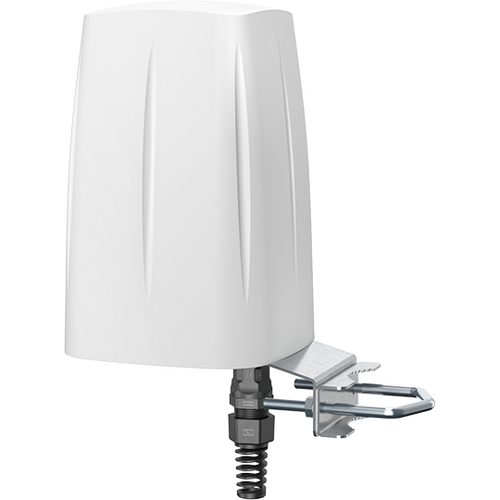

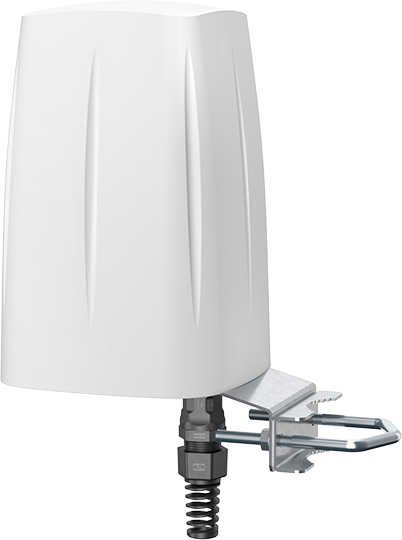

QuSpot for Teltonika RUTX50 - Integrated multi-band LTE & 5G omni antenna + Wi-Fi omni antenna + GPS + place to install Teltonika RUTX50 (All-in-one)



QuSpot for RUTX50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments.

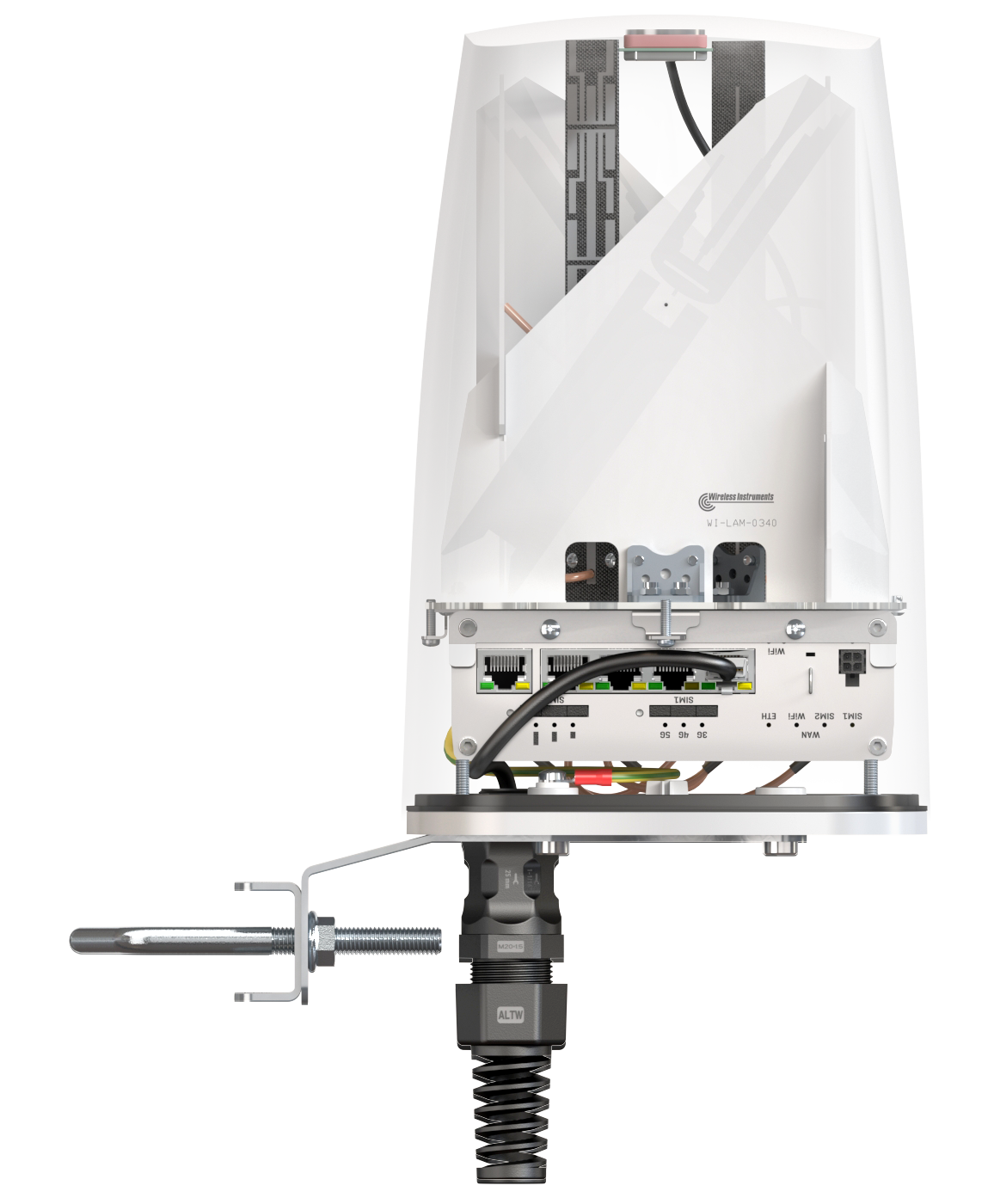

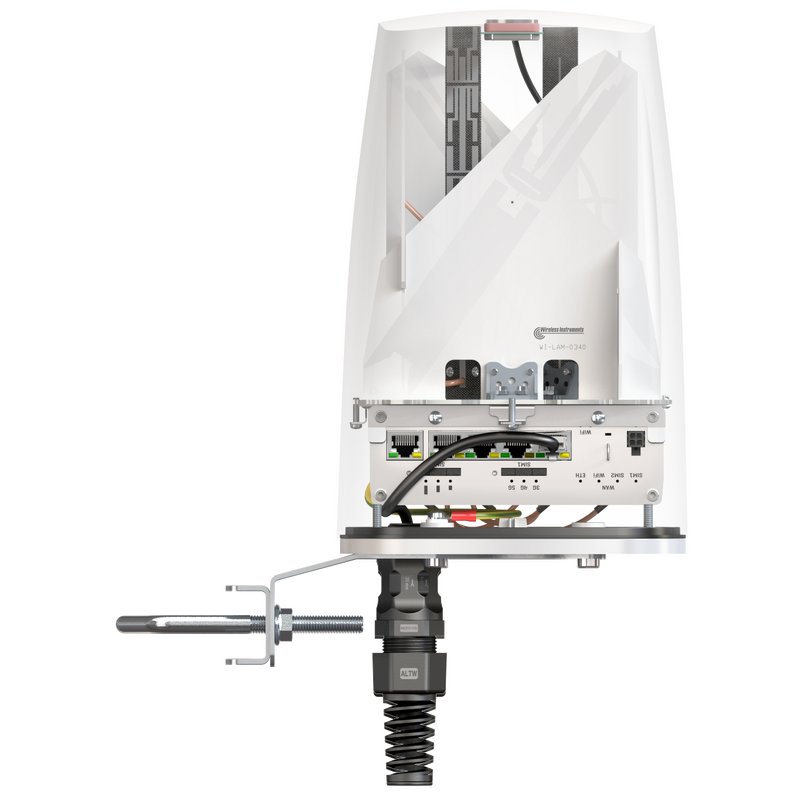

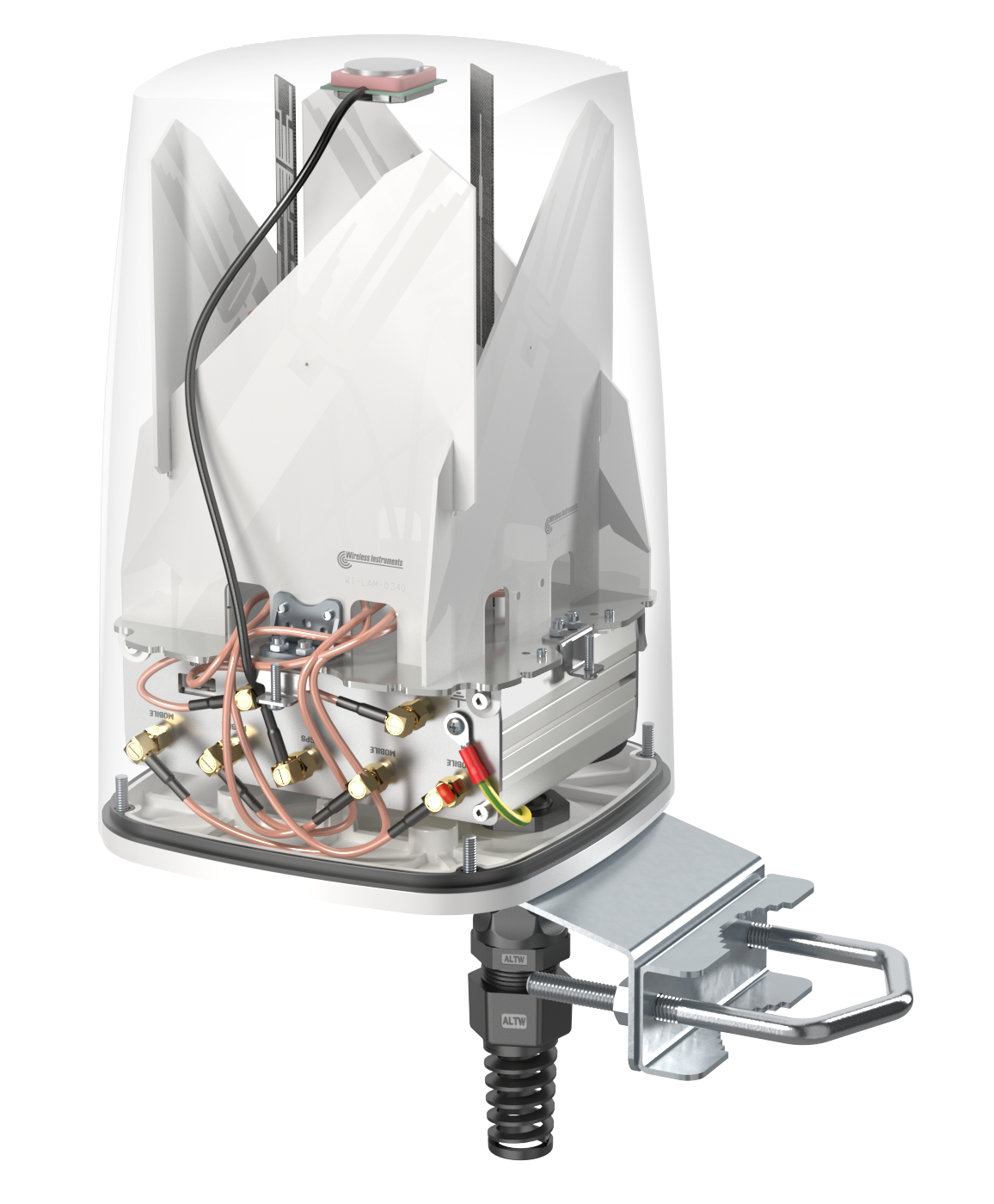

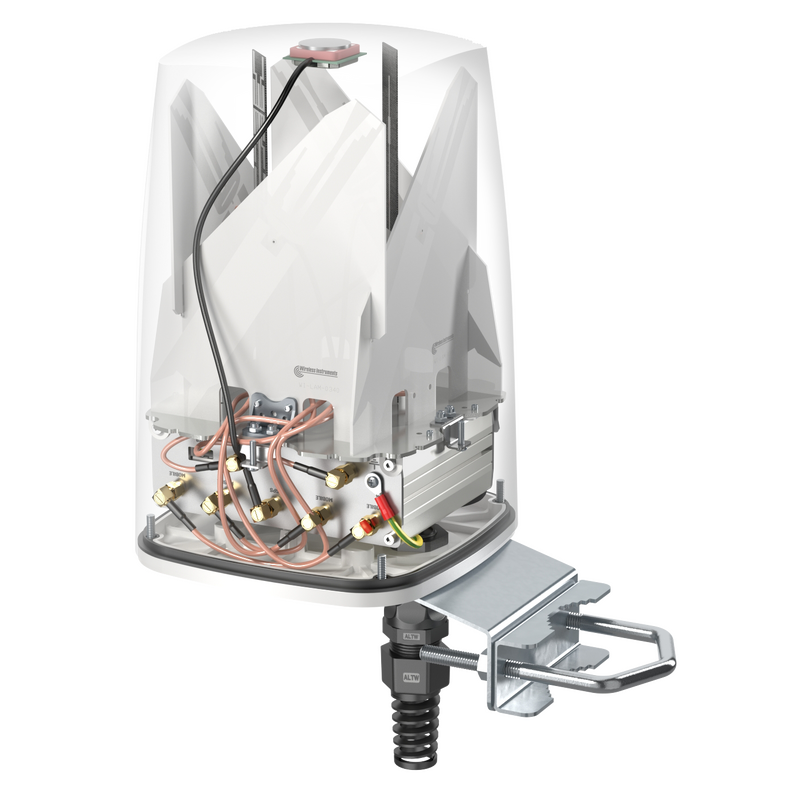

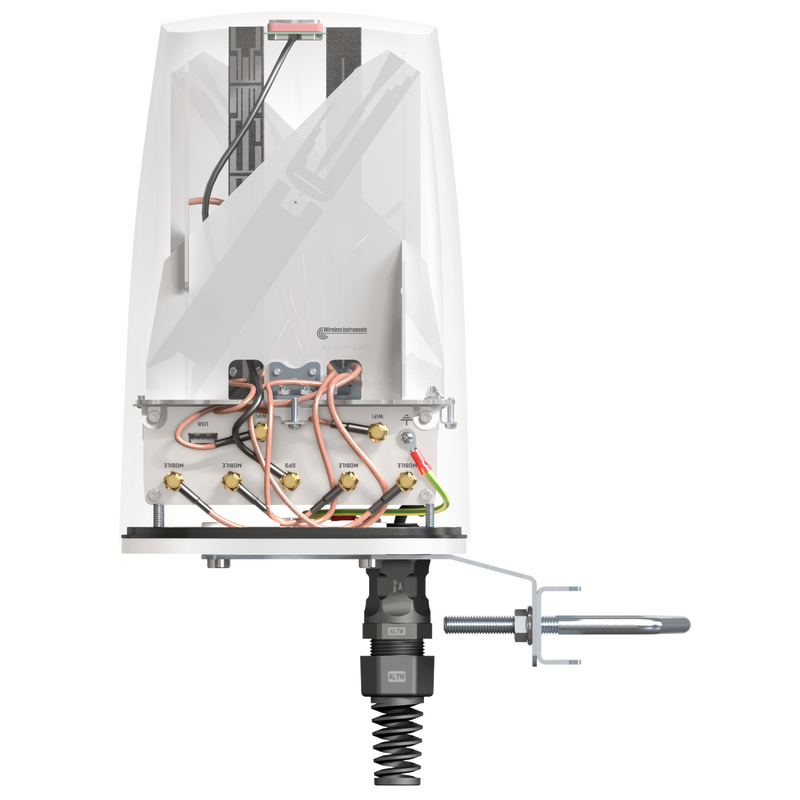

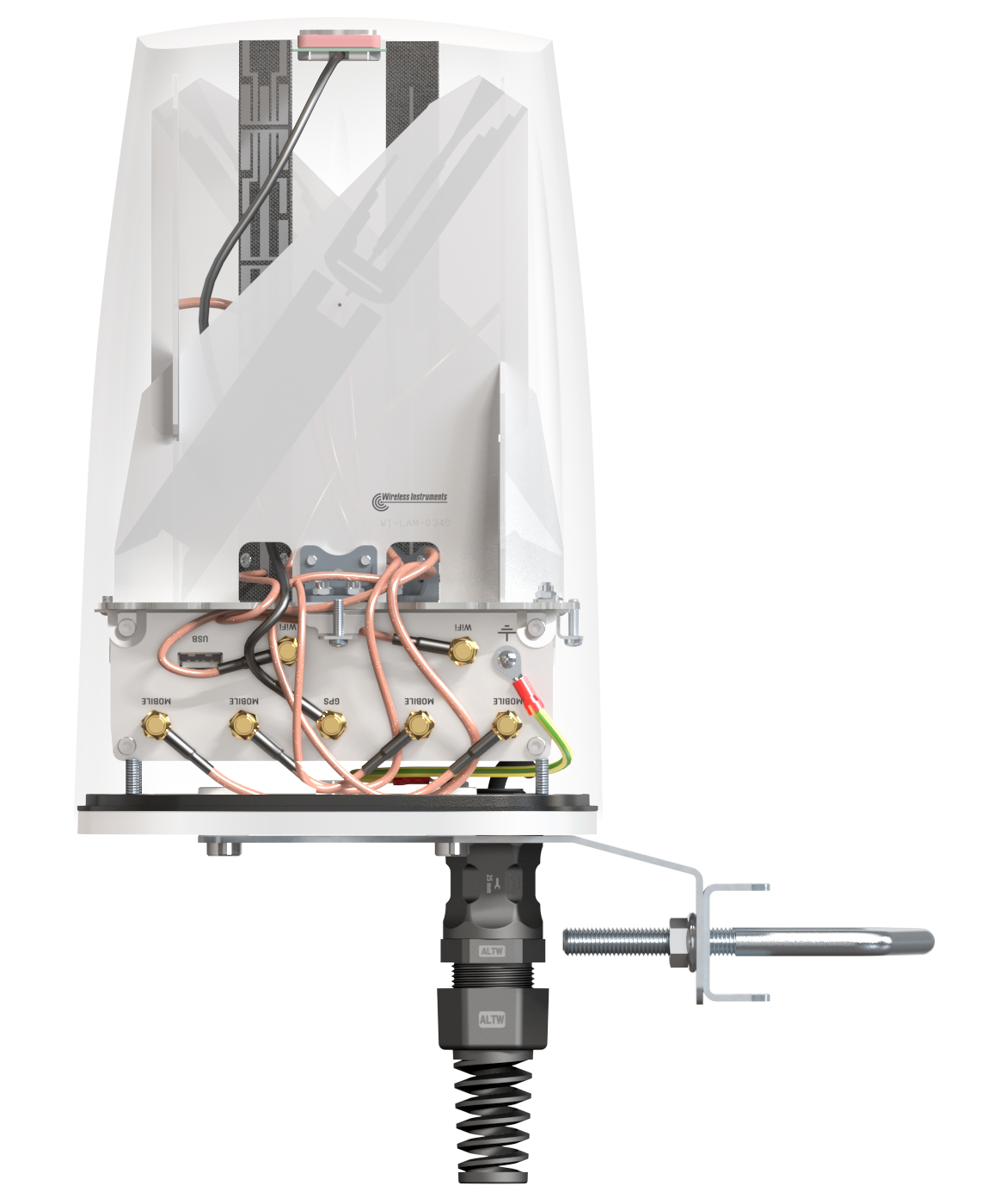

This product is an all-in-one solution that integrates a highgain, omnidirectional 5G and Wi-Fi antennas with RUTX50 into a single IP67 enclosure.
Such integration allows implementation of new, outdoor RUTX50 solutions.
QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

RUTX50 sold separately, just add to your cart.

LTE ANTENNA SPECIFICATION
Frequency 0.617 - 0.960 GHz
1.7 - 2.7 GHz
3.3 - 4.3 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101
Gain 0.617 - 0.960 GHz: 2.5dBi
1.7 - 2.7 GHz: 4dBi
3.3 - 4.3 GHz: 4.5dBi
VSWR <2.00, max <2.5
Beamwidth 360°/35° ±5°
Polarization Vertical
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
5.0 - 7.125 GHz
Gain 2.40 - 2.50 GHz : 6 dBi
5.0 - 7.125 GHz : 7.5 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45 + 2xNf + 2xNm in external omni wi-fi antenna
Ingress protection IP67
Dimensions 240 x 160 x 160 mm
Weight 1.5 kg
Operating temperature From -40°C to 75°C

Specification Sheet

(AX50S)

SKU AX50S
Model # AX11M
Shipping Weight 5.0000kg
Shipping Width 0.400m
Shipping Height 0.180m
Shipping Length 0.400m
Shipping Cubic 0.028800000m3
