QuSpot for Teltonika TRB500 - Integrated LTE & 5G Omni Antenna
Place to install Teltonika TRB500 (All-in-one)
SKU: A500S

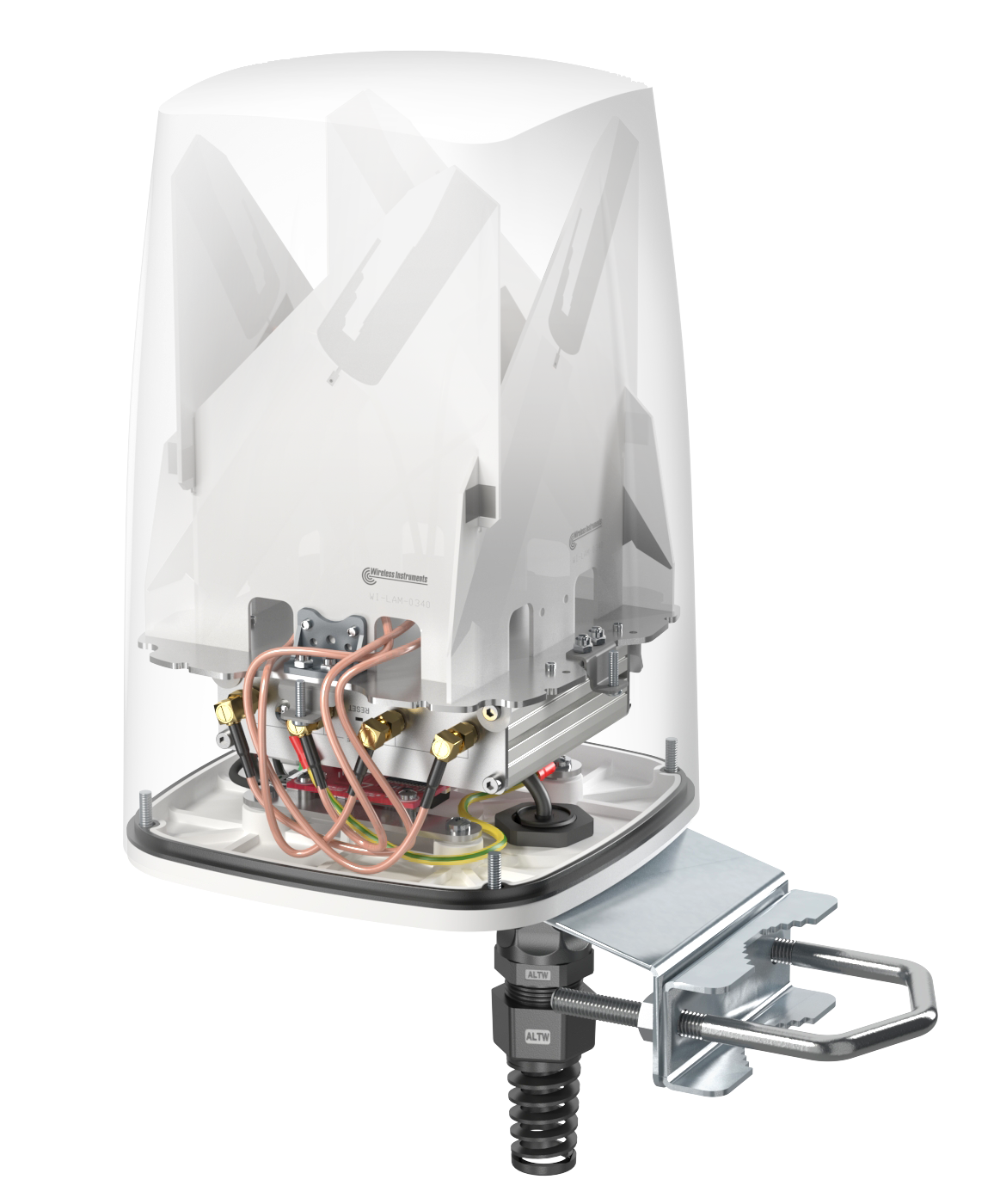

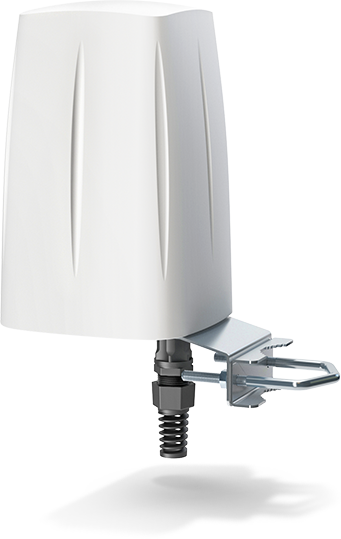

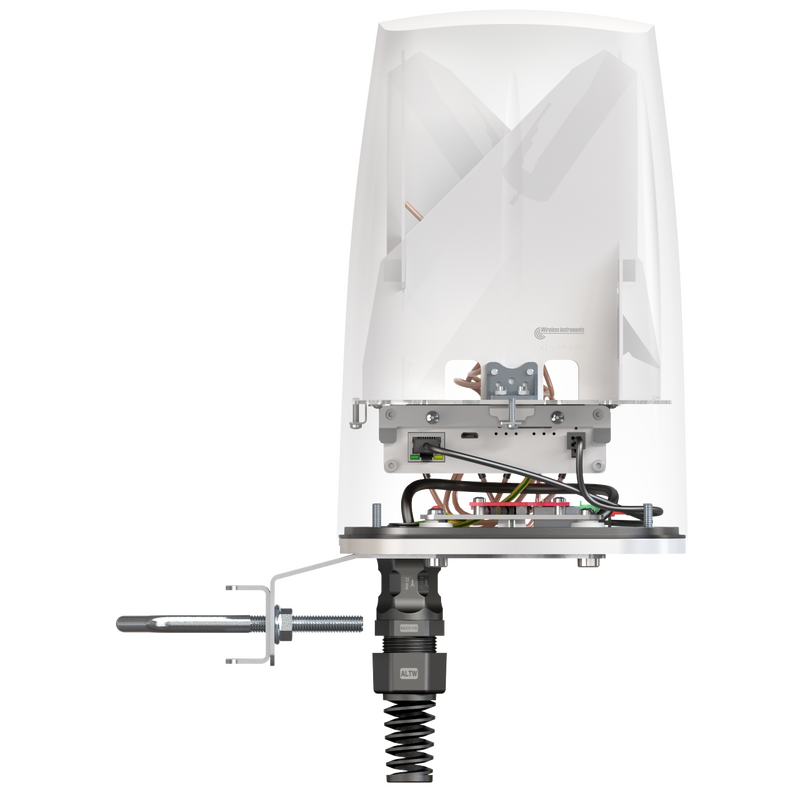

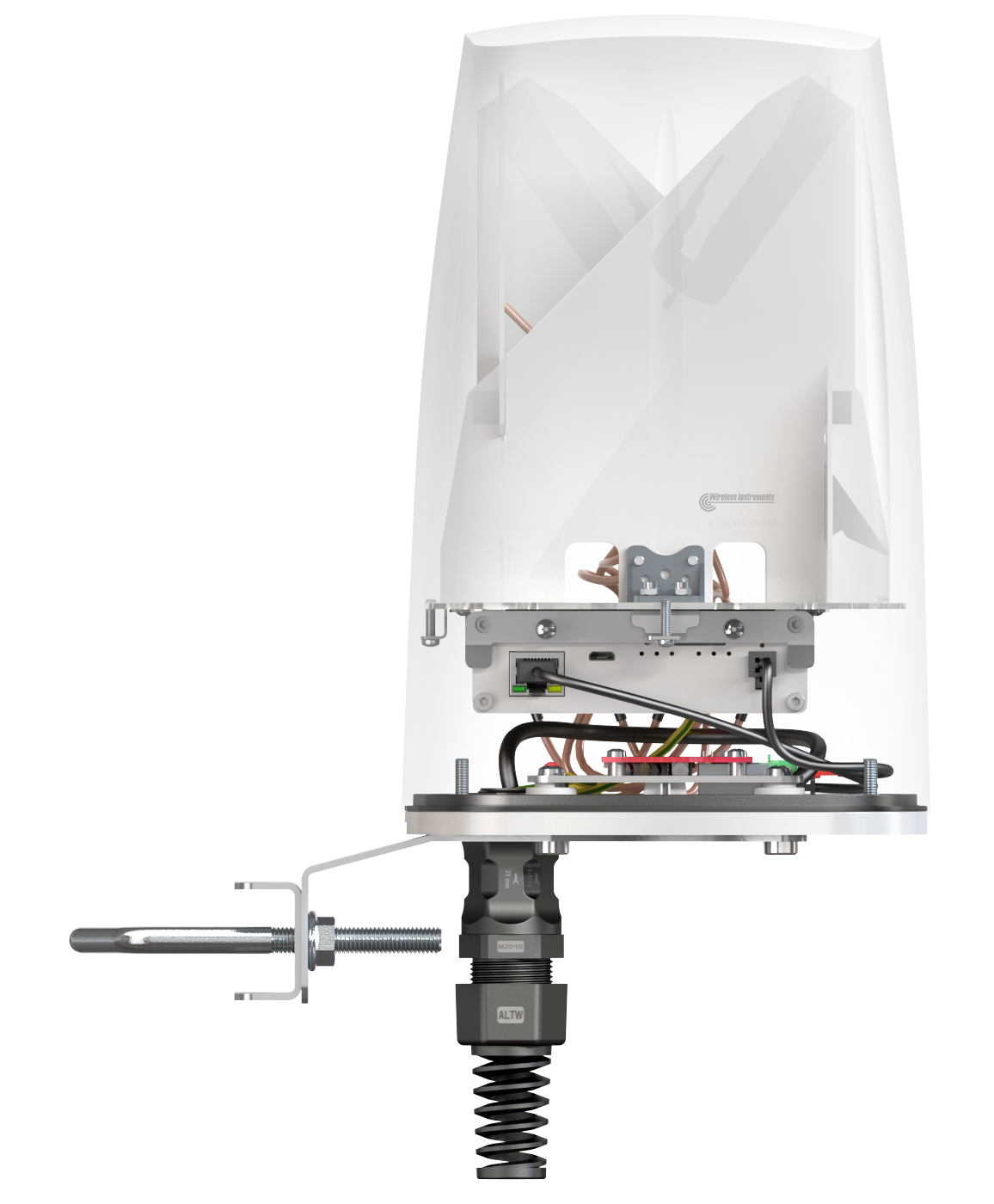

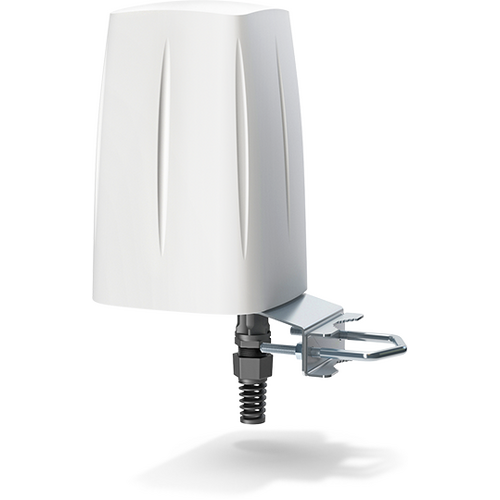

QuSpot for Teltonika TRB500 - Integrated LTE & 5G Omni Antenna
QuSpot for TRB500 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor TRB500 solutions.
QuSpot for TRB500 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source!
RUTX50 sold separately, just add to your cart.
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.617 - 0.960 GHz 1.7 - 2.7 GHz 3.3 - 4.3 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101 |
| Gain | 0.617 - 0.960 GHz: 2.5dBi 1.7 - 2.7 GHz: 4dBi 3.3 - 4.3 GHz: 4.5dBi |
| VSWR | <2.00, max <2.5 |
| Beamwidth | 360°/35° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fibergl |
| Ingress protection | IP67 |
| Dimensions | 240 x 160 x 160 mm |
| Weight | 1.5 kg |
| Operating temperature | From -40°C to 75°C |
| PoE Specification | |
|---|---|
| PoE Type | Passive PoE up to 24v - Not compatible with an 802.3af/at Power Source |
| PoE In Mode | Mode Type: B |
| IEEE Standard | IEEE 802.3ab 1000Base-T Gigabit Ethernet |
(A500S)
| SKU | A500S |
| Model # | AX11M |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.180m |
| Shipping Length | 0.400m |
| Shipping Cubic | 0.028800000m3 |
