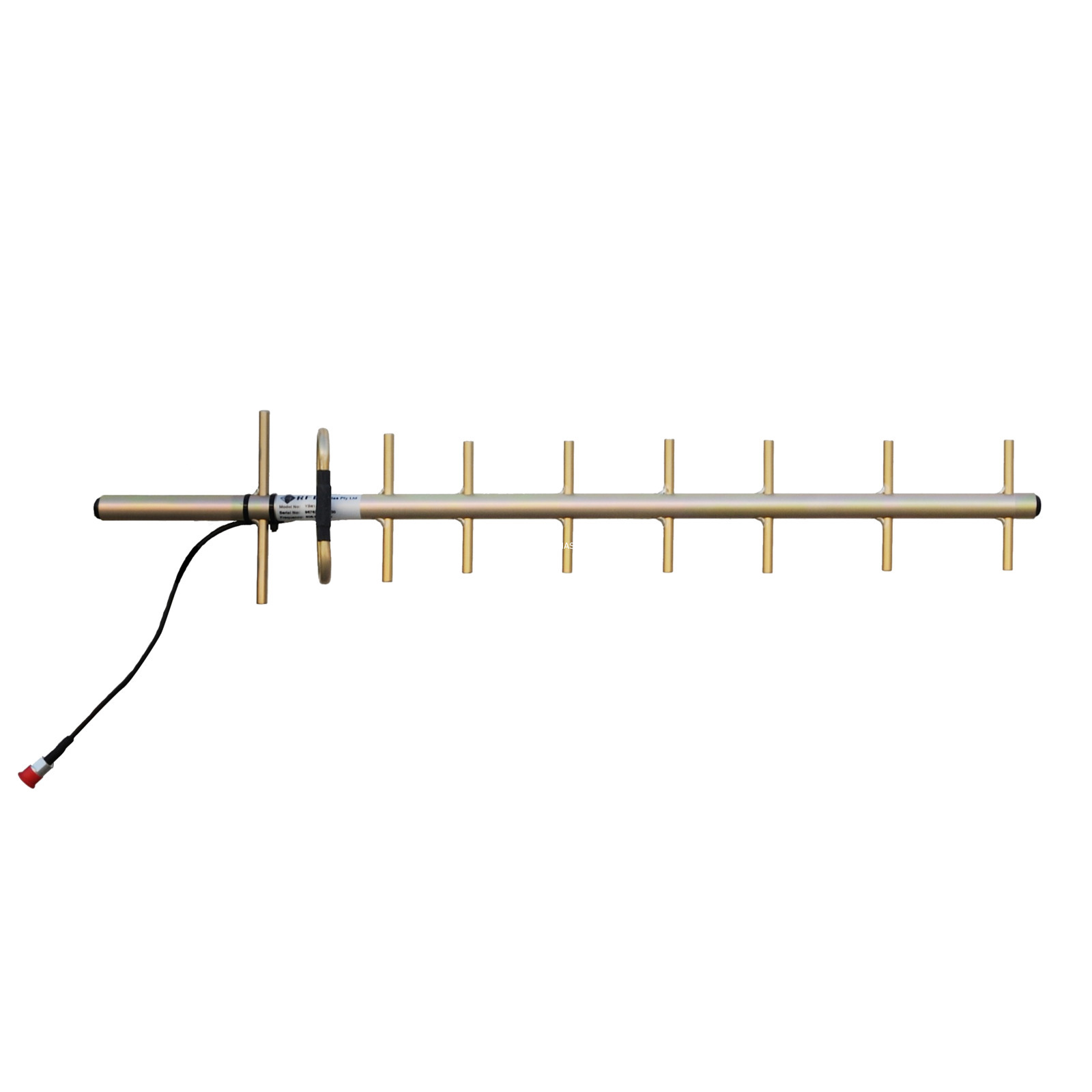

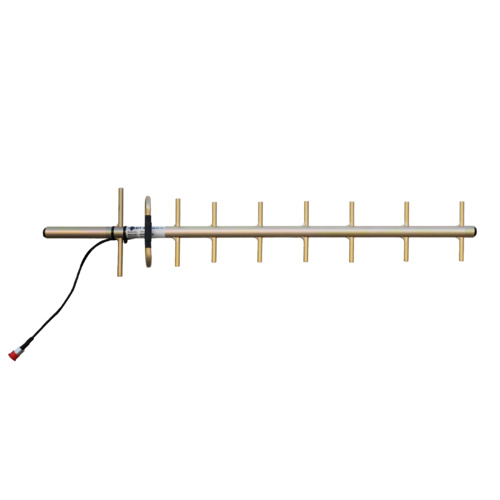

RFI 12dBi YB806 Optus/ISM Yagi Antenna



Key Features



  • Fully welded construction for maximum performance and reliability

  • Extremely durable, long MTBF

  • Can be configured in stacks or bays for higher gain applications

  • Short low loss cable tail with N-female connector

  • Australian manufactured and warrantied.



Usage



  • This is a very high quality antenna designed for applications requiring high performance, low passive inter-modulation, and very low VSWR

  • This type of antenna is typically deployed in 3G/ISM M2M control applications such as smart metering, water monitoring, etc.

  • The YB809 Series are high gain Low PIM Yagi antennas which provide excellent point to point communications in RF control, short or long haul link, point to multipoint and other applications calling for highly directional antennas

  • YB809 Series antennas exhibit narrow beamwidths (comparatively) and high front to back ratios to help minimise any potential interference to and from other systems

  • The feed element of each antenna is of full folded dipole construction, welded to the mounting boom for maximum bandwidth, low intermodulation performance and reliability

  • The passive elements are through mounted to the circular boom section and welded at each side before plating

  • The alodine protective finish provides a conductive surface to ensure effective earthing of the antenna when mounting.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Optus 3G (900 MHz)
compatible
12 dBi
Vodafone 3G (900 MHz)
compatible
12 dBi
LPWAN/ISM (915 MHz)
compatible
12 dBi



Electrical Specifications



  • Frequency Range: 890 to 960 MHz

  • Input Impedance: 50 Ω

  • VSWR: <1.5:1

  • Vertical Beamwidth: 41°

  • Horizontal Beamwidth: 48°

  • Front to Back Ratio: >15 dB

  • Radiation: Directional

  • Maximum Power: 100 Watts



Mechanical/Environmental Specifications



  • Construction: Fully welded aluminium, alodined finish

  • Cable: Short 9302 Durathene tail

  • Input Connector: N Female

  • Mount: None Supplied - Recommend RFI UNV Clamp

  • Wind rating: 240 km/h

  • Weight: 0.5 kg

  • Dimensions: 1000 mm (L)



Connection



This antenna has an N Female connector for attaching your required length of cable. Please refer to the Coaxial Cables, Reels & Assessories section above.

n female connector

N Female Connector [pictured]
