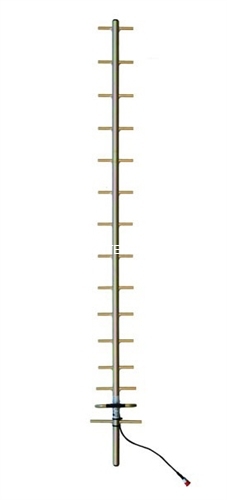

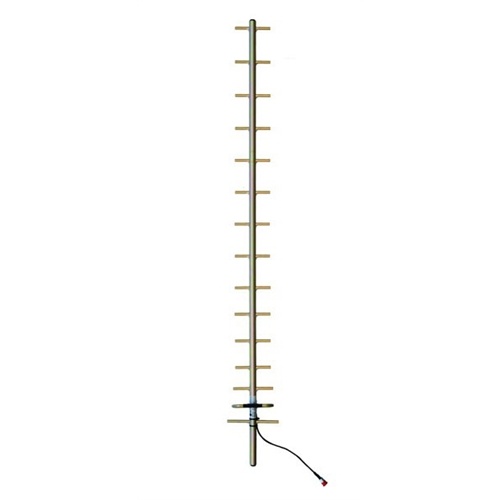

RFI 14dBi YB815 Yagi Directional Antenna

850-930MHz

Key Features

• Fully welded construction for maximum performance and reliability

• Narrow beamwidth & high front to back ratios effective in reducing interference

• Can be configured in stacks or bays for higher gain applications

• Short low loss cable tail with N-female connector

• Australian manufactured and warrantied.

Usage

• The YB815-82 antennas exhibit narrow beamwidths and high front to back ratios to help minimise any potential interference to and from other systems.

  The feed element of each antenna is of full folded dipole construction, welded to the mounting boom for maximum bandwidth, low intermodulation performance and reliability. The passive elements are through mounted to the circular boom section and welded at each side before plating. The alodine protective finish provides a conductive surface to ensure effective earthing of the antenna when mounting.

  The YB800 Series are offered in 3, 6, 9, 15 or 20 element form and are generally held in stock for immediate delivery in the commercial bands.

  YB800 Series antennas can be configured in stacks or bays for higher gain applications in either horizontally or vertically polarised systems. Application details on phasing and mounting yagi antennas are included in the technical notes section in the back of this catalogue.

  YB800 Series rest at ground potential and provide excellent lightning protection and reduced precipitation static noise. Termination is via an 'N' female coaxial connector fitted to a short 9302 Durathene cable tail. Durathene is a PTFE dielectric and polyethylene jacketed cable providing superior resistance to weathering and abrasion and is less susceptible to bird attack than standard PVC sheathed cables.

Specifications / Frequency

Electrical Specifications

• Frequency Range: 850-930MHz

• Input Impedance: 50Ω

• VSWR: <1.5:1

• Vertical Beamwidth: 30°

• Horisontal Beamwidth: 30°

• Front to Back Ratio: >20dB

• Passive IM 3rd Order (2x20W) dBc: <-150

• Radiation: Directional

• Maximum Power: 100Watts

Mechanical/Environmental

• Construction: Fully welded aluminium, alodined finish

• Cable: Short 9302 Durathene tail

• Connector: N Female

• Mount: None Supplied - Recommend RFI UNV Clamp

• Wind rating: 189km/hr

• Weight: 1kg Dimensions: 1600mm (L)

Connection

This antenna has an N Female connector for attaching your required length of cable. Please refer to the Coaxial Cables, Reels and Assessories section above.

Important

Special Delivery Information: This product is 1.5m long and can only be delivered by a courier (not Australia Post), therefore we cannot accept a PO Box. Please provide an address where someone will be present to sign for the package.

Read More

• Specification Sheet
• Installation Instructions
