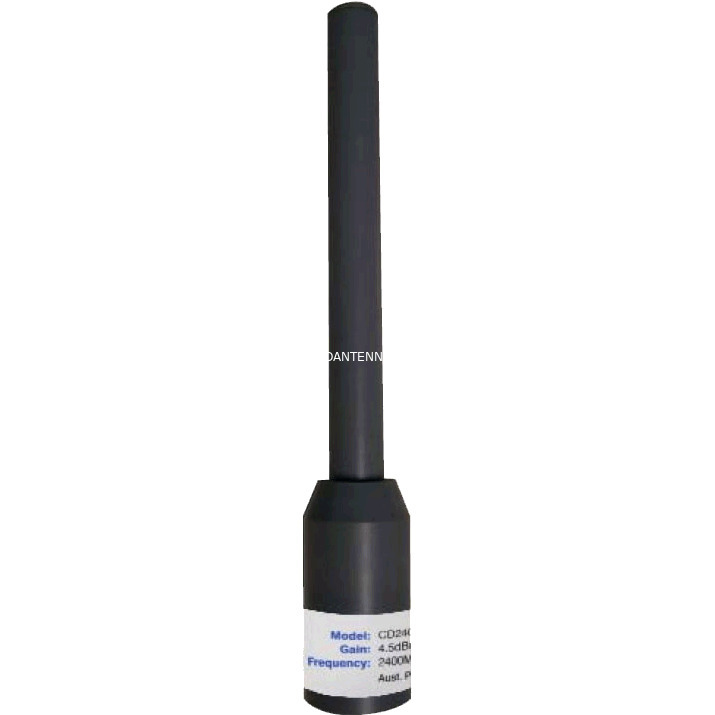

RFI CD2405 4.5dBi 2.4GHz ISM Collinear Antenna



Key Features



  • Full 2.4-2.5GHz band

  • Suits 802.11b/g/n WiFi, Bluetooth, and other ISM applications

  • Ideal for extending the range of outdoor WiFi access points.



Usage



  • Perfect for covering large outdoor areas, this antenna is often used to cover football grounds, stadiums, music festivals, where access points/routers are spread distances apart

  • The 33° vertical broadcast angle is great for indoor, rooftop or pole mounted installations requiring an even spread of signal

  • This 2.4 GHz ISM band antenna offers an omnidirectional pattern enabling 360° optimum network configuration

  • The patented PCB design delivers superior pattern stability across the entire 2.4-2.5GHz band avoiding inherent pattern tilting common in more traditional collinear designs

  • Includes an integrated 'N' type male connector for easy mounting.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n WiFi (2400MHz)
compatible
4.5dBi
ISM & Bluetooth (2400MHz)
compatible
4.5dBi



Electrical Specifications



  • Frequency Range: 2400-2500MHz

  • Input Impedance: 50Ω

  • Input Power: 5W

  • VSWR: <1.5:1

  • Vertical Beamwidth: 33°

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: Black fibreglass radome, PCB radiator

  • Cable: None supplied

  • Connector: N Male

  • Weight: 0.1kg

  • Height: 160mm

  • Mounting: None, N female bulkhead recommended
