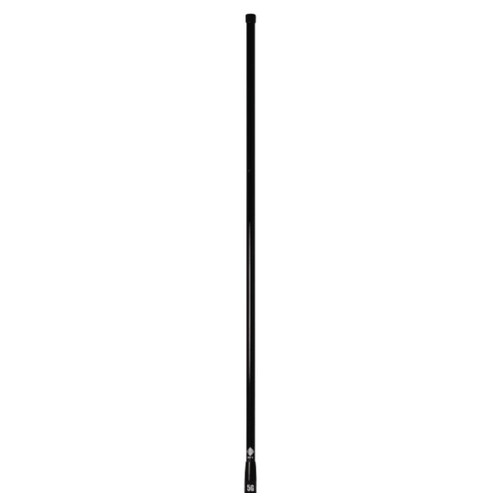

RFI 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz); Whip Only - Black



Key Features


The evolution continues with the release of the CDR7100 Series 4G LTE cellular mobile antenna.



  • Multiband 700-3800MHz

  • Patented PCB based collinear design offering the ultimate in pattern and gain stability

  • Ideal for all new 5G lte networks with true multi-band coverage

  • Whip Only - Integrated N Male Connector



Additional Information



  • Like the CDR7100 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements

  • These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth

  • The result is a unique antenna, housed in the one unit, able to operate across all mobile phone networks global

  • - High gain across all bands making it suiting fringe and rural applications.



Usage

  • The CDR8100 Series whips have an integrated N male connector that can be attached the the CDR Bases or directly to an N Female Connector

  • The Integraed N Type Connector allow the Antenna to be used in Fixed Applications mounting directly to an N Female Bulkhead



Specifications / Frequenc



Whip Material Fibreglass
Connector Integrated N Male Connector
Frequency Range 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 5.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Tuned bandwidth Full
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800
Length [mm] 695
Brand RFI



Please contact us If you would like a shorter length of cable, or a different connector and we will customise this antenna for you.



(CDR8194-B-WHIP)

SKU CDR8194-B-WHIP
Brand RFI
Shipping Width 0.050m
Shipping Height 0.050m
