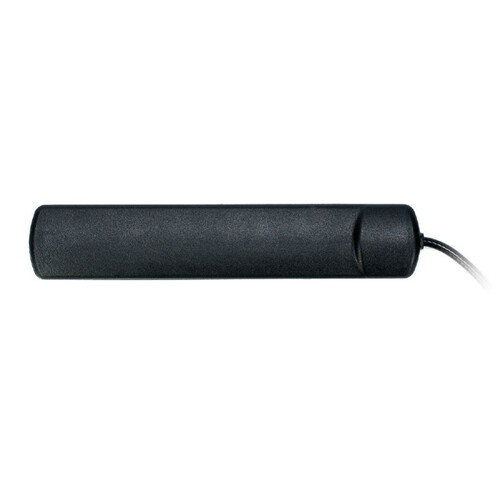

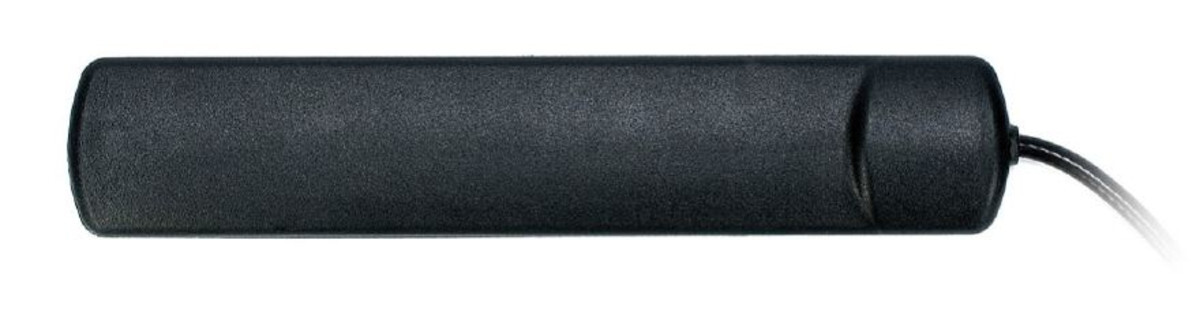

RFI 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)



Key Features



  • Wideband frequency range; 617 to 5925 MHz

  • Covers all LTE cellular bands including the new 700MHz (4GX/4G+) band

  • Adhesive mount

  • Ground Plane Independent

  • Compact size: 116 x 22 x 6.7 mmd.



Usage

  • The T5 Series brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies.

  • This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward compatibility.

  • In addition, this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). The T5 Series offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.

  • These antennas are suited to applications where a disguised or compact solution is required and are suitable for car mobile phone kits, monitoring, and M2M/telematics.



Specifications / Frequency



Network Compatibility
Yes/No
LTE 700MHz
compatible
LTE 800MHz
compatible
3G 850MHz
compatible
LTE 900MHz
compatible
LTE 1700MHz
compatible
LTE 1800MHz
compatible
LTE 1900MHz
compatible
LTE 2100MHz
compatible
LTE 2300MHz
compatible
LTE 2600MHz
compatible
LTE 2700MHz
compatible
5G 3500MHz compatible



Electrical Specifications



  • Frequency Range: 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz

  • Nominal Gain Dbi    3.2 / 3.6 / 1.0 / 1.6

  • Input Impedance: 50Ω

  • VSWR: <2.0:1

  • Max Power: 25W



Mechanical/Environmental Specifications



  • Cable: LL100 4m

  • Connector: SMA male

  • Temperature: -40°C +85°C

  • Dimensions: 116 x 22 x 6.7mm

  • Weight: 0.10kg



Read More





(T5-4M-SMA)

SKU T5-4M-SMA
Brand Telco Antennas
Shipping Weight 0.1250kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000375000m3
