RFI TLA4100 - 6dBi Transit/Low Profile Mobile Antenna



Key Features



  • Wideband 700 to 5800 MHz performance

  • Low profile, vandal resistant radome

  • Ground dependent/independent capable.



Usage



  • The TLA4100 Antenna is designed specifically for rail, light rail and bus applications and other similarly demanding transit or stationary applications

  • With a VSWR less than 2.5:1 covering 698 - 5800 MHz, the TLA4100 operates in all cellular bands globally plus the 2.4 GHz ISM band

  • This antenna also unofficially operates on 2300MHz @ VSWR approximating 1.35:1

  • This antenna can be used in both a ground independent and ground dependent installation - maximum gain is achieved by using up to a 1m^2 metal surface as a ground plane

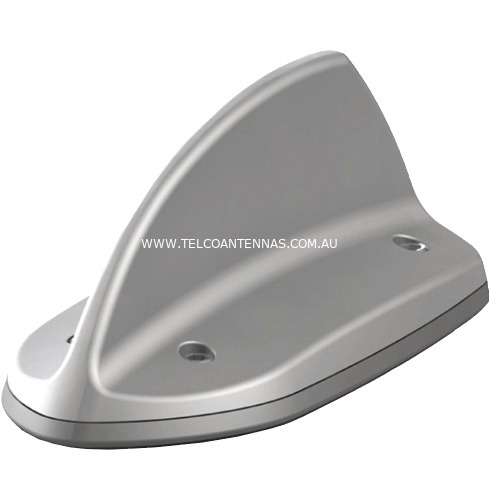

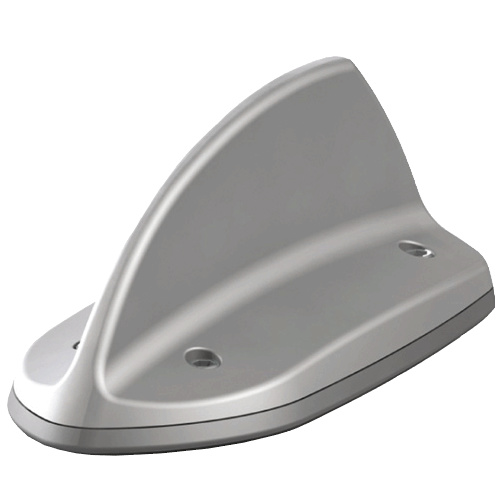

  • Roof mount multiband "Shark Fin" style antenna designed to operate on all mobile phone and wireless broadband frequencies within the one housing

  • An alternative for use where height is an issue eg. roofs on large motor homes, outdoor data/weather reporting stations, and many more

  • Designed utilising a high impact, UV stabilised low Flame, Smoke and Toxicity (FST) radome, the TLA4100 is IP68 rated to fully protect against the ingress of dust and water

  • This antenna is suitable for installations even in the most demanding of climates.



Designed to meet the following European Traction Industry Standards:



  • NF-F-16-101/102 (materials standard)

  • EN50155 (vibration standard)

  • EN50124-1 (electrical isolation standard)

  • Deutsch Bahn high voltage / current specification





Streaming live race video with TLA4100 4G transit antenna



Streaming live in-car video at Bathurst with two RFI TLA4100 for 4G mobile broadband.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700 MHz)
compatible
5 dBi
Optus 4G+ (700 MHz)
compatible
5 dBi
Telstra Next-G™ (850 MHz)
compatible
5 dBi
Vodafone 4G+ (850MHz)
compatible
5 dBi
Optus Regional 3G (900 MHz)>
compatible
5 dBi
Vodafone Regional 3G (900 MHz)
compatible
5 dBi
Telstra/Optus/Vodafone 4G (1800 MHz)
compatible
6 dBi
All carriers - Urban/Metro 3G (2100 MHz)
compatible
6 dBi
802.11 b/g/n/ac Wi-Fi (2400 MHz)
compatible
3 dBi
Telstra 4G B7 (2600 MHz)
compatible
3 dBi
All Carriers - 5G N78 (3500MHz) compatible 3 dBi
802.11a/n/ac (5800 MHz)
compatible
7 dBi
UNII-3 (5800MHz)
compatible
7 dBi



Electrical Specifications



  • Frequency Range: 698-960 MHz / 1710-2170 MHz / 2400-2700 MHz / 5700-5800 MHz

  • Input Impedance: 50 Ω

  • VSWR: <2.5:1

  • Vertical Beamwidth: 38° @ 698-960 MHz & 180° @ 1710-2700 MHz

  • Polarisation: Vertical

  • Radiation: Omnidirectional, Ground Dependent

  • Maximum Power: 50 Watts



Mechanical/Environmental Specifications



  • Construction: NF-F-16-102 compliant injection moulded radome / cast aluminium alloy base

  • Cable: None

  • Connector: Integrated N Female

  • Mount: 4 x M6 screws (not included)

  • Dimensions: 205 x 100 mm (L x W)



Connection



This antenna has an N flange connector integrated into its underbelly. There is no cable supplied.



N Flange panel mount connector



N Female Connector [pictured]
