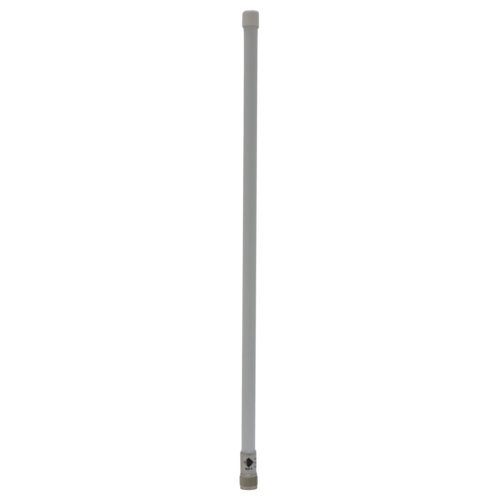

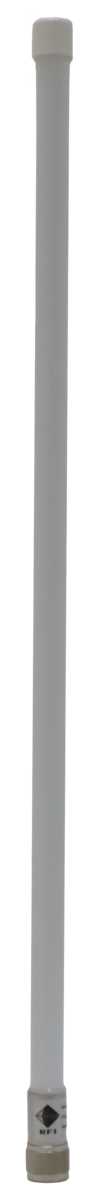

RFI 7dBi Dual Band WiFi 2.4GHz & 5GHz Omnidirectional WiFi Antenna



Key Features

  • High performance in a compact lightweight design

  • Ideal for extending the range of indoor & outdoor WiFi access points

  • IP67 Certified

  • This antenna offers an omnidirectional pattern enabling 360° optimum network configuration



Usage



  • The CD2450 is a compact high gain dual band WiFi antenna which is idea for extending the range of WiFi devices at both 2.4GHz and 5.0GHz frequency bands. This antenna is ideally suited multipoint applications where wide coverage is desired.

  • The CD2450 antennas features an integral N-Male connector which can be mounted either on an enclosure or bracket using an N-female bulkhead connector.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n WiFi (2400MHz)
compatible
7dBi
ISM & Bluetooth (2400MHz)
compatible
7dBi
802.11ac 5ghz WiFi  compatible 7dBi



Electrical Specifications



  • Frequency Range: 2400-2484MHz / 5.15-5.85GHz

  • Input Impedance: 50Ω

  • Input Power: 5W

  • VSWR: <2.5:1

  • Vertical Beamwidth: 30°

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: White fibreglass radome

  • Cable: None supplied

  • Connector: Integrated N Male

  • Weight: 0.15kg

  • Height: 528mm

  • Mounting: None, N Female bulkhead recommended



Read more





RFI wireless logo

(CD2450-7-N)

SKU CD2450-7-N
Brand RFI
Shipping Weight 0.1100kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.550m
Shipping Cubic 0.001375000m3
