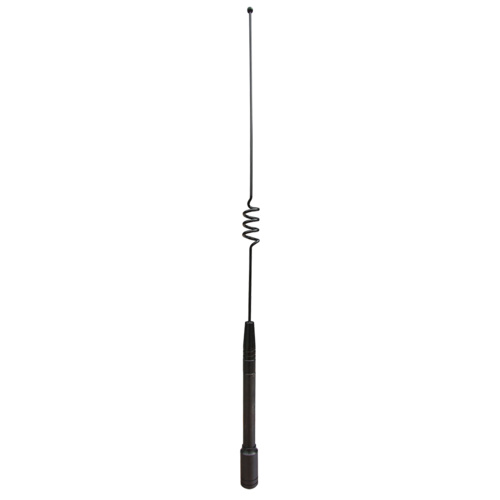

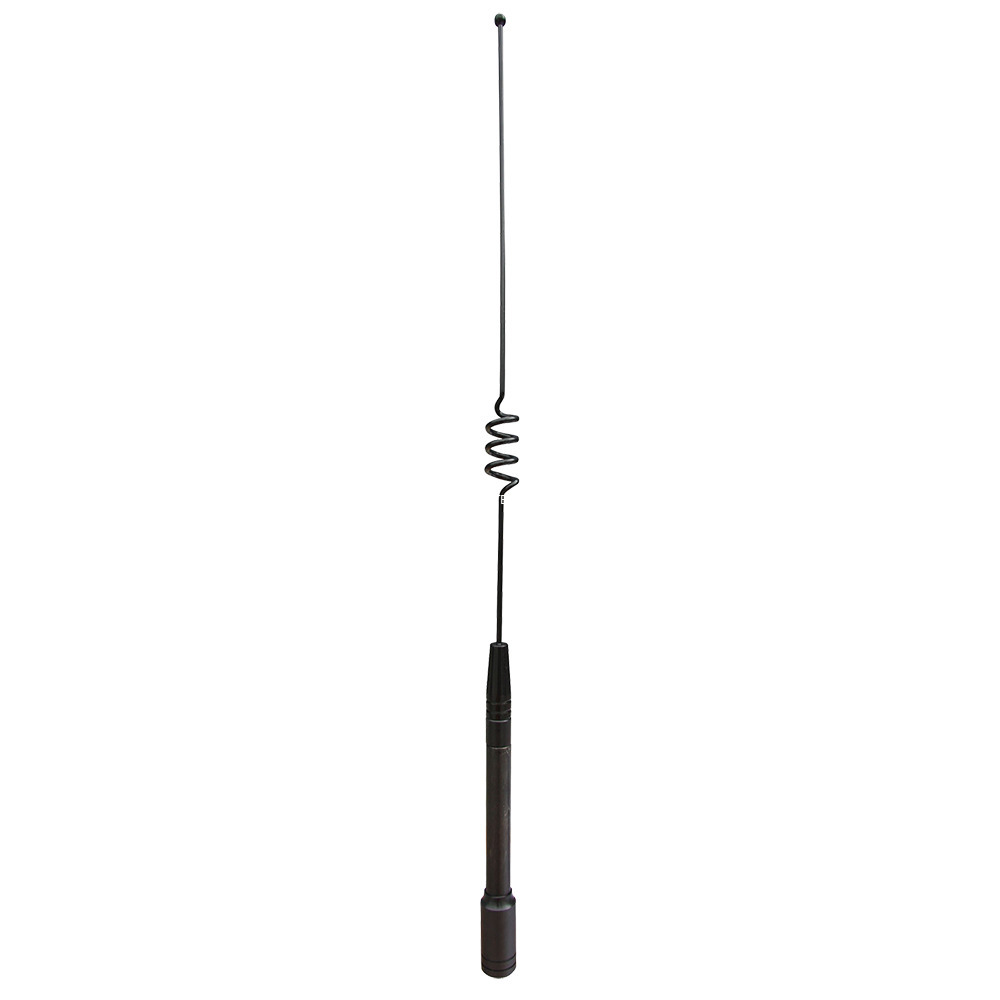

RFI CD1625 Stud Mounted Elevated Feed Antenna
Key Features
-
High performance omnidirectional gain
-
Elevated feed design eliminates need for a ground plane and boosts the radiating element over obstructions
-
Black finish will not scratch or peel
-
Limited lifetime warranty
-
RFI offer this antenna with a limited lifetime warranty.
Usage
-
The RFI CD1625 Elevated Feed Antenna provides a 3dB gain at 900 MHz and has a 14mm diameter thread for mounting on any bracket or mount
-
Elevated Feed antennas provide high performance in virtually any mounting position
-
The design raises the radiating element above the vehicle roof or other obstructions to provide a strong omnidirectional pattern and high performance for vehicle gutter, fender, boot or magnetic mounting
-
This ground-independent antenna is the ideal solution for fleet/work/mine site vehicles where a lightbar or hazard lights might interfere with regular antenna performance
-
Because of the antenna's virtually universal 14mm thread, it can be secured to any existing UHF, CB, or lightbar, as well as gutter mounted, mirror mounted, and many other ways.
Specifications / Frequency
Network Compatibility |
|
|
---|---|---|
900MHz |
|
|
1800MHz |
|
|
Electrical Specifications
-
Frequency Range: 890-960MHz / 1710-1880MHz
-
Input Impedance: 50Ω
-
VSWR: <2:1
-
Polarisation: Vertical
-
Radiation: Omnidirectional
-
Maximum Power: 50Watts
Mechanical/Environmental Specifications
-
Construction: 17-7PH Stainless steel black finish
-
Cable: 5m 9006 RG58 coaxial cable
-
Connector: None
-
Length: 432mm
-
Mounting: 14mm Stud Mount
Connection
-
This antenna has a 5m cable, no connector
-
Contact us if you would like a shorter length of cable, or a different connector so we can customise this antenna for you.
Read More
(CD1625)
SKU | CD1625 |
Brand | RFI |
Shipping Weight | 1.2000kg |
Shipping Width | 0.050m |
Shipping Height | 0.050m |
Shipping Length | 0.600m |
Shipping Cubic | 0.001500000m3 |
