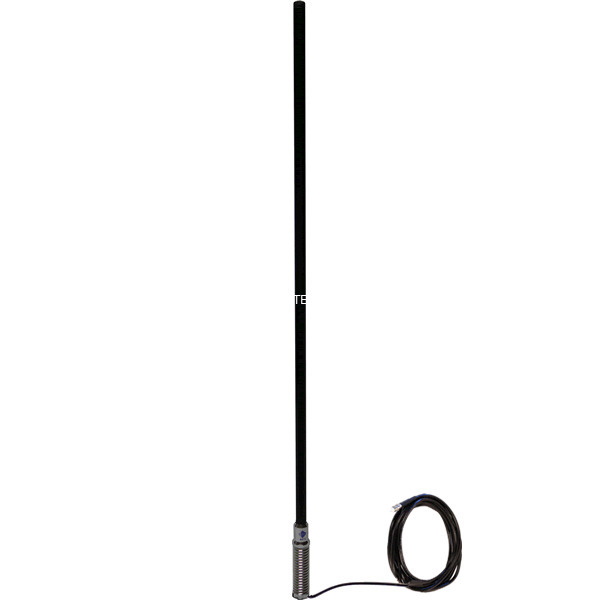

RFI CD5000 5dBi UHF & CB Radio Antenna

Key Features

• RFI CD5000 UHF/CBRS Aerial

• Suits all Uniden, GME, Oricom, and other major brand radios

• Heavy duty electro-polished stainless steel spring

• Compact 900mm height design

• Available in both black and white

• Extremely robust fibreglass radome antenna with marine grade chrome plated brass and stainless steel fittings

• The CD5000 is a mid gain mobile UHF CB antenna providing genuine 5 dBi gain and is ideally suited for use in fringe areas and country applications where performance is critical

• Its rugged design and tough construction makes it a highly prized asset in even the harshest environments.

Usage

• This rugged & extremely robust antenna is ideally suited to 4WD bullbar mounting

• With a 13mm stud mount and ground plane independant design, this antenna may be installed onto a number of mounting brackets such as mirror mounts, bull bar mounts, gutter mounts or fender mounts and are ideal for installations in commercial vehicles, four wheel drives and trucks

• The CD5000 can even be used as a base station antenna due to its ground plane independent design

• Also available in quick removable Q-Fit™ whip system for fast and simple removal when entering low height areas, car washes or for antenna security

• When travelling through different terrain, the removable antenna can be swapped over to a larger or smaller size and gain, ensuring the best performance in all geographic areas.

Specifications / Frequency

Electrical Specifications

• Frequency Range: 476-477MHz

• Input Impedance: 50Ω

• VSWR: <1.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Maximum Power: 25Watts

Mechanical/Environmental Specifications

• Construction: Fibreglass radome, electro-polished stainless steel spring

• Cable: 5m Cellfoil 9006 RG58 coaxial cable

• Connector: FME Female with UHF Male adapter

• Length: 89cm

• Weight: 0.57kg

• Mounting hole diameter: 13mm

Connection

• This antenna has a 5m cable that terminates with an FME Female connector

• The FME Female connector is a smaller 6mm connector which makes routing through the vehicle firewall easier than standard UHF connectors

• A UHF connector for attaching to your UHF radio is supplied.

If you would like a shorter length of cable or a different connector, please email us so we can customise this antenna for you.
