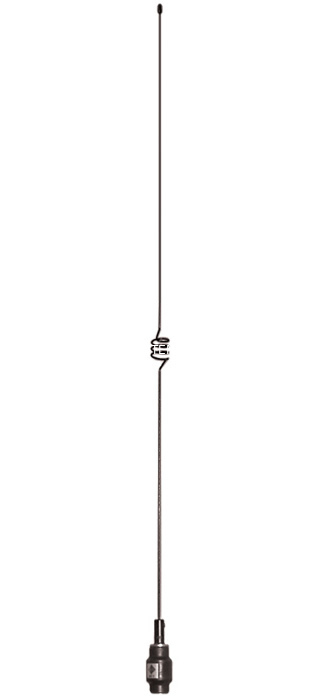

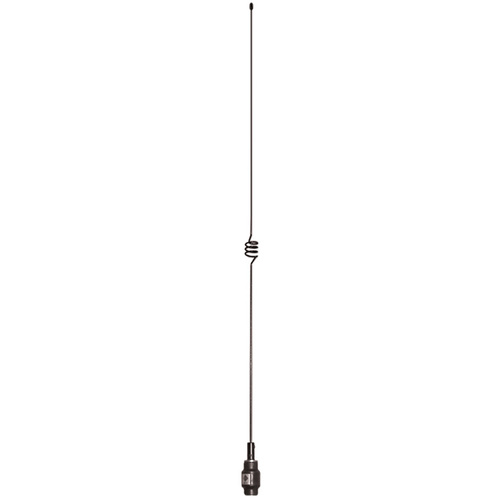

RFI CD63 6dBi UHF & CB Radio Antenna



Key Features



  • RFI CD63 6dBi Elevated Feed UHF/CB Aerial

  • Totally ground plane independent

  • Flexible

  • Stainless steel whip returns to original shape after bending

  • 13mm stud nut assembly for vehicle mounting

  • High impact thermoplastic moulding and is practically indestructible

  • Australian made.



Usage



  • The CD63 Series Mopole™ antennas offer complete versatility in mounting options

  • Unlike conventional roof mount antennas, the CD63 Series antennas have true ground independence which allows mounting in a variety of positions including vehicle mirror, gutter or roof bar mounts

  • This extraordinary performance is made possible by the use of an exclusive (and patented) high impedance matching circuit in the base coil - this allows the end feeding of the collinear whip section, a 5/8 over 1/2 wave radiator wound from a single piece of high resilience 17-7PH stainless steel.



Specifications / Frequency



Electrical Specifications



  • Frequency Range: 476-477MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 20Watts



Mechanical/Environmental Specifications



  • Construction: 17-7PH stainless steel with stud nut assembly

  • Cable: Supplied with 5m low loss coaxial cable

  • Length: 810mm

  • Mounting hole diameter: 13mm

  • Connector: Female FME connector with UHF adapter supplied



Read More





RFI logo

(CD63-71-75)

SKU CD63-71-75
Brand RFI
Shipping Weight 1.2000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.350m
Shipping Cubic 0.000875000m3
